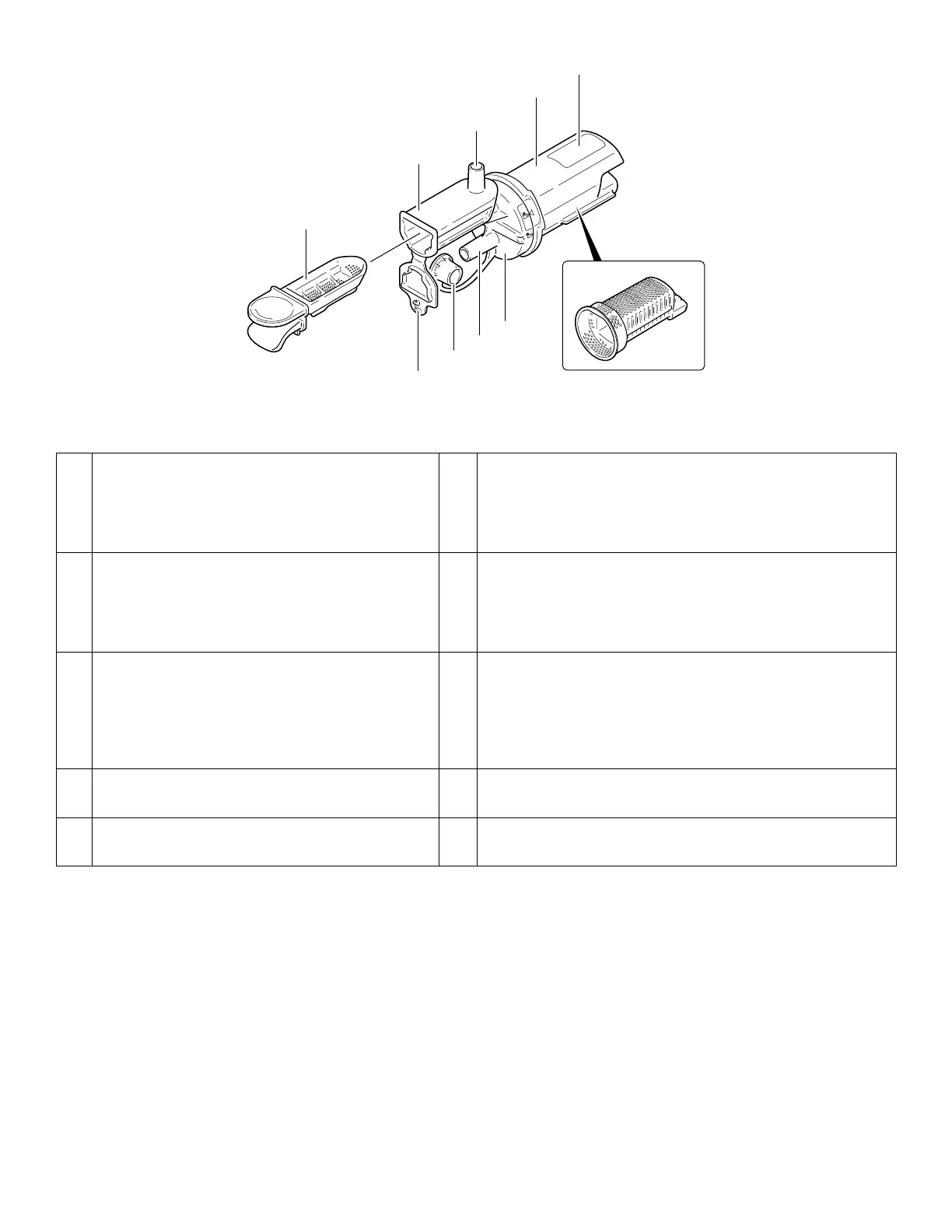

FFiigguurree 88 –– VV22 SSppeecciimmeenn CCoolllleeccttiioonn ((SSCC)) MMaanniiffoolldd KKiitt ((wwiitthh CCoolllleeccttiioonn TTrraayy))
AA CCoolllleeccttiioonn TTrraayy ((rreemmoovvaabbllee)) — Allows for the
collection of small tissue specimens in a variety
of procedures. Use of the tray allows for
continuous suction without removing or
reconnecting suction tubing.
BB CCoolllleeccttiioonn TTrraayy PPoorrtt — Allows for the installation of the
collection tray.
CC PPrriimmaarryy PPoorrtt — Provides the main interface
between the medical-grade tubing and the
manifold. Used to facilitate fluid collection.
Always attach the suction tube/device to the
primary port.
DD RReeaarr HHoouussiinngg — Provides an interface between the
manifold and the rover’s 8L canister.
EE RRFFIIDD TTaagg — Allows for authentication of the
manifold before enabling suction use. Allows the
rover, via the user interface, to communicate
manifold status (new, used, or expired).
FF SSeeccoonnddaarryy CCoolllleeccttiioonn BBaasskkeett — Located in the rear
housing, provides a backup collection method for capturing
a tissue specimen in case the collection tray is not
installed. May also be used a primary collection method for
larger specimens. Both the primary port and the auxiliary
secondary port lead to the basket.
GG FFrroonntt HHoouussiinngg CCaapp — Provides access to the
specimen basket.
HH AAuuxxiilliiaarryy SSeeccoonnddaarryy PPoorrtt — Provides a port for
secondary suction, if required.
II BBoottttoomm PPoorrtt CCaapp — Allows for the closure of
the bottom port.
JJ CCoolllleeccttiioonn TTrraayy PPoorrtt DDoooorr — Allows for the closure of the
collection tray port when the collection tray is not installed.
700000969828 Rev-AA 17 EN
