22..88.. DDeeffiinniittiioonnss
NNoottee -- Additional product and/or labeling symbols are defined in the Symbol Definition Chart supplied with the product.
NNoottee -- See Figure 9 for the location of dialog menus and buttons described in Main Control Panel Display Buttons.

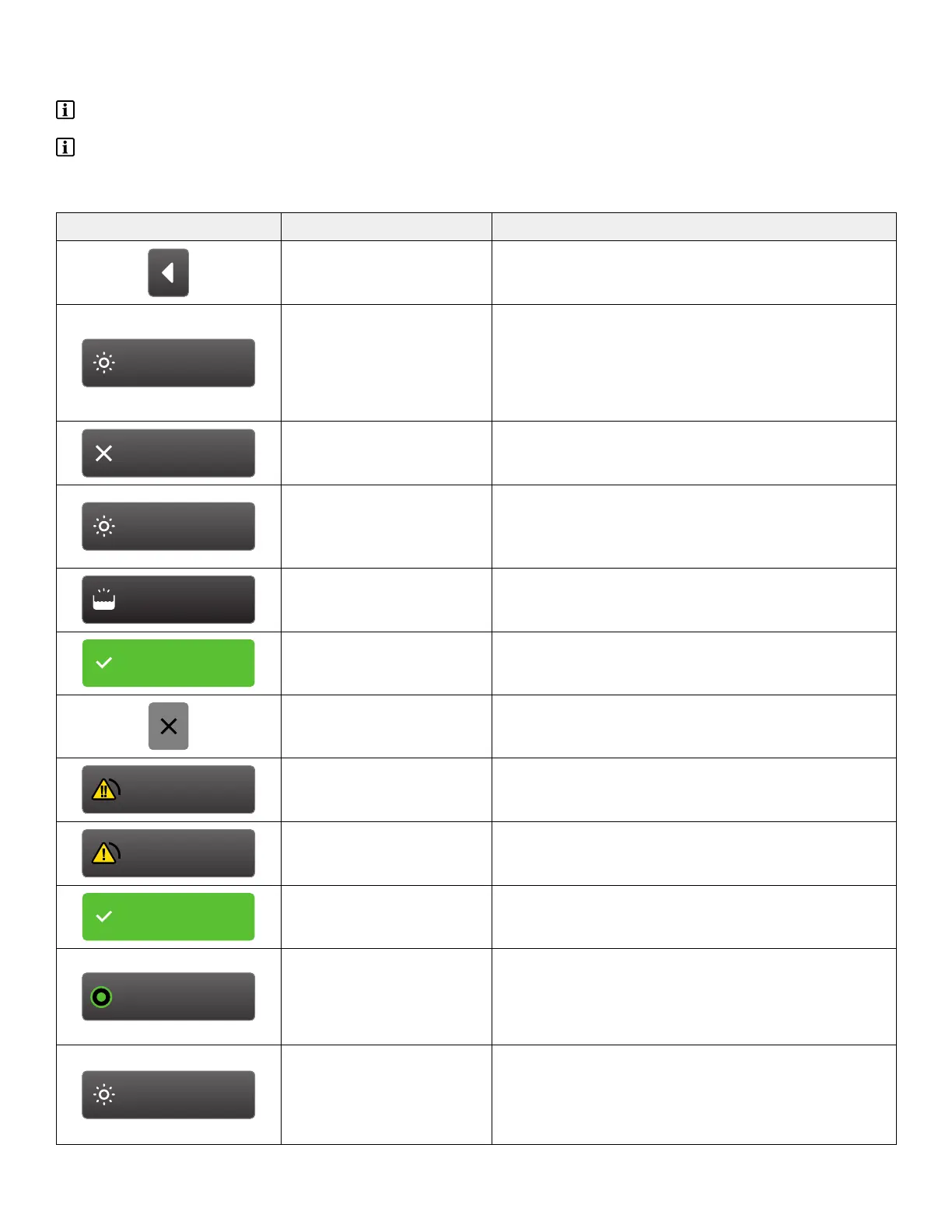

TTaabbllee 44 –– MMaaiinn CCoonnttrrooll PPaanneell DDiissppllaayy BBuuttttoonnss
BBUUTTTTOONN NNAAMMEE FFUUNNCCTTIIOONN
BACK
Touch to scroll through error or notification messages.
BRIGHTNESS (SETTINGS)
From the BRIGHTNESS dialog menu, select one of the
brightness adjustment options, including the DISPLAY,
CANISTER LIGHT, MANIFOLD LIGHT, (suction range
indicator), SPECIMEN LIGHT and SURFACE LIGHT.
Brightness may be adjusted (increased or decreased) as
required.
CANCEL
Touch to cancel a dialog selection.
CANISTER LIGHT
(BRIGHTNESS)
From the BRIGHTNESS dialog menu, touch the
CANISTER LIGHT button. Touch the UP and DOWN
arrows to increase or decrease the brightness of the 8L
canister light.
CANISTER LIGHT
(CONTROL)
Touch to turn ON or OFF the light inside the 8L canister.
CHANGE LANGUAGE
CONFIRMATION
Touch to apply the selected language.
CLOSE
Touch to exit a dialog menu or dialog control.
CLOSE ERROR MESSAGE
Touch to exit an error message.
CLOSE NOTIFICATION
MESSAGE
Touch to exit a notification message.
CONFIRM
Touch to acknowledge understanding of important safety
information or allow the performance of a critical and/or
irreversible action.
DEFAULT CYCLE
(DOCKING)
From the DOCKING dialog menu, touch the toggle
button to enable or disable the default cycle to be
performed when the rover is connected to the docker.
The QUICK WASH option is selected as the DEFAULT
CYCLE.
DISPLAY (BRIGHTNESS)
Touch the SETTINGS button to access the SETTINGS
dialog menu. Touch the BRIGHTNESS button to access
the BRIGHTNESS dialog menu. Touch the DISPLAY
button. Touch the UP and DOWN arrows to increase or
decrease the brightness.
EN 24 700000969828 Rev-AA
