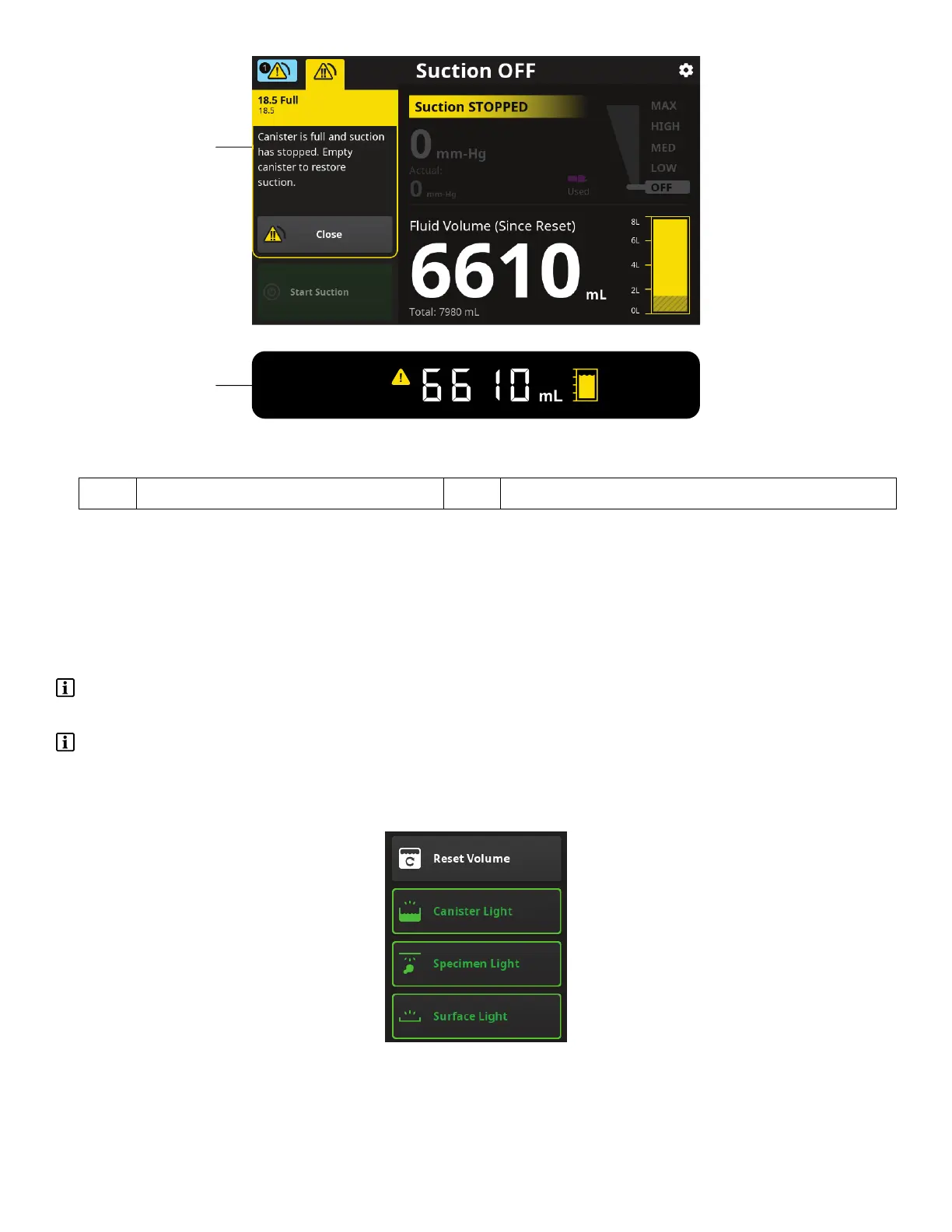

FFiigguurree 2277 –– FFuullll CCaanniisstteerr DDiissppllaayy IInnddiiccaattiioonnss
AA Main Control Panel Display BB Secondary Control Panel Display
2. If the 8-liter canister is full, shut down the rover. See
To Shut Down the Rover
(page 47). Dock the rover to empty the full
canister. See
To Dock the Rover
(page 54).
44..44.. TToo CCoolllleecctt aa SSppeecciimmeenn
44..44..11.. TToo UUssee tthhee SSppeecciimmeenn CCoolllleeccttiioonn TTrraayy
NNoottee -- Make sure the specimen collection manifold is installed in the rover and connected properly. See
To Install
Disposable Components
(page 37).
NNoottee -- If using a specimen collection manifold, make sure the suction tubing is connected to the top primary manifold
port. The bottom auxillary port is used for secondary suction only. Make sure the auxillary port is closed when not in use.
1. To illuminate the specimen collection tray where the specimen will be collected, touch the SPECIMEN LIGHT button on
the main control panel display.(Figure 28).
FFiigguurree 2288 –– TTuurrnn oonn LLiigghhttss
2. To illuminate the work surface where the specimen will be transferred, touch the SURFACE LIGHT button on the main
control panel display.
700000969828 Rev-AA 43 EN
