44..33..22.. TToo MMaannaaggee FFlluuiidd CCaanniisstteerr VVoolluummee
1. Monitor the volume of fluid captured in the rover canister. See Fluid Volume Conditions and Indicators.
TTaabbllee 2288 –– FFlluuiidd VVoolluummee CCoonnddiittiioonnss aanndd IInnddiiccaattoorrss
CCOONNDDIITTIIOONN IINNDDIICCAATTIIOONN AACCTTIIOONN
CCAANNIISSTTEERR AALLMMOOSSTT FFUULLLL –– The
fluid volume level in the canister is
approaching maximum capacity.
Fluid suction will soon stop in the full
canister.
Two declining tones occur; a
notification message appears on the
main control panel display and an
almost full fluid level gauge indicator
appears on the secondary control
panel display (Figure 26).
Prepare to switch to an alternate
suction source.
CCAANNIISSTTEERR FFUULLLL –– The fluid
volume level is at maximum capacity.
Fluid suction has stopped in the full
canister.
Three slow tones occur continuously;
an error message and SUCTION
STOPPED banner appear on the
main control panel display. A general
warning sign and full fluid level gauge
indicator appear on the secondary
control panel display (Figure 27).
Prepare to switch to an alternate
suction source.
Dock the rover to dispose of waste.
See
To Dock the Rover
(page 54).

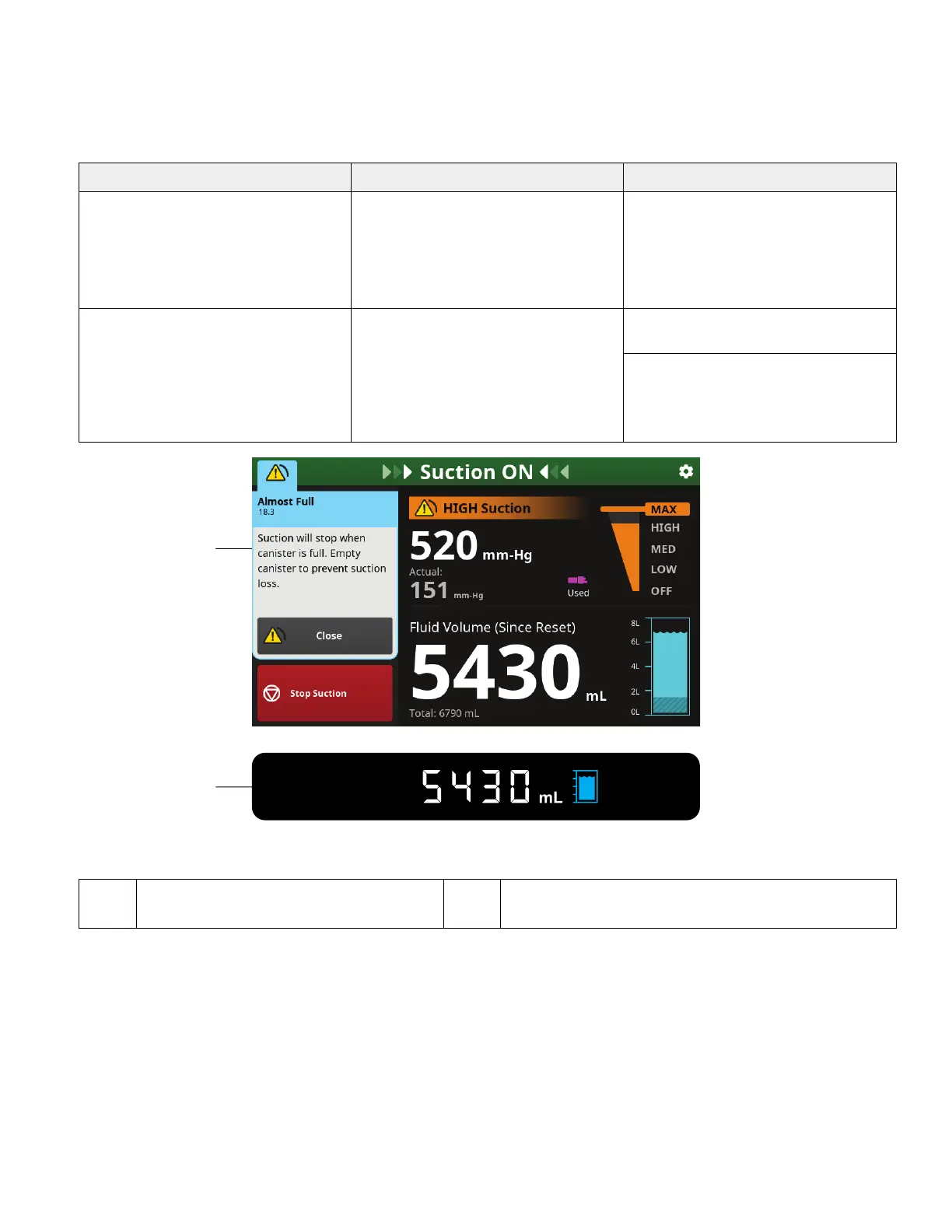

FFiigguurree 2266 –– AAllmmoosstt FFuullll CCaanniisstteerr DDiissppllaayy IInnddiiccaattiioonnss
AA Main Control Panel Display BB Secondary Control Panel Display (located on rover’s
back side)
EN 42 700000969828 Rev-AA
