22..55.. FFeeaattuurreess —— HHaarrddwwaarree

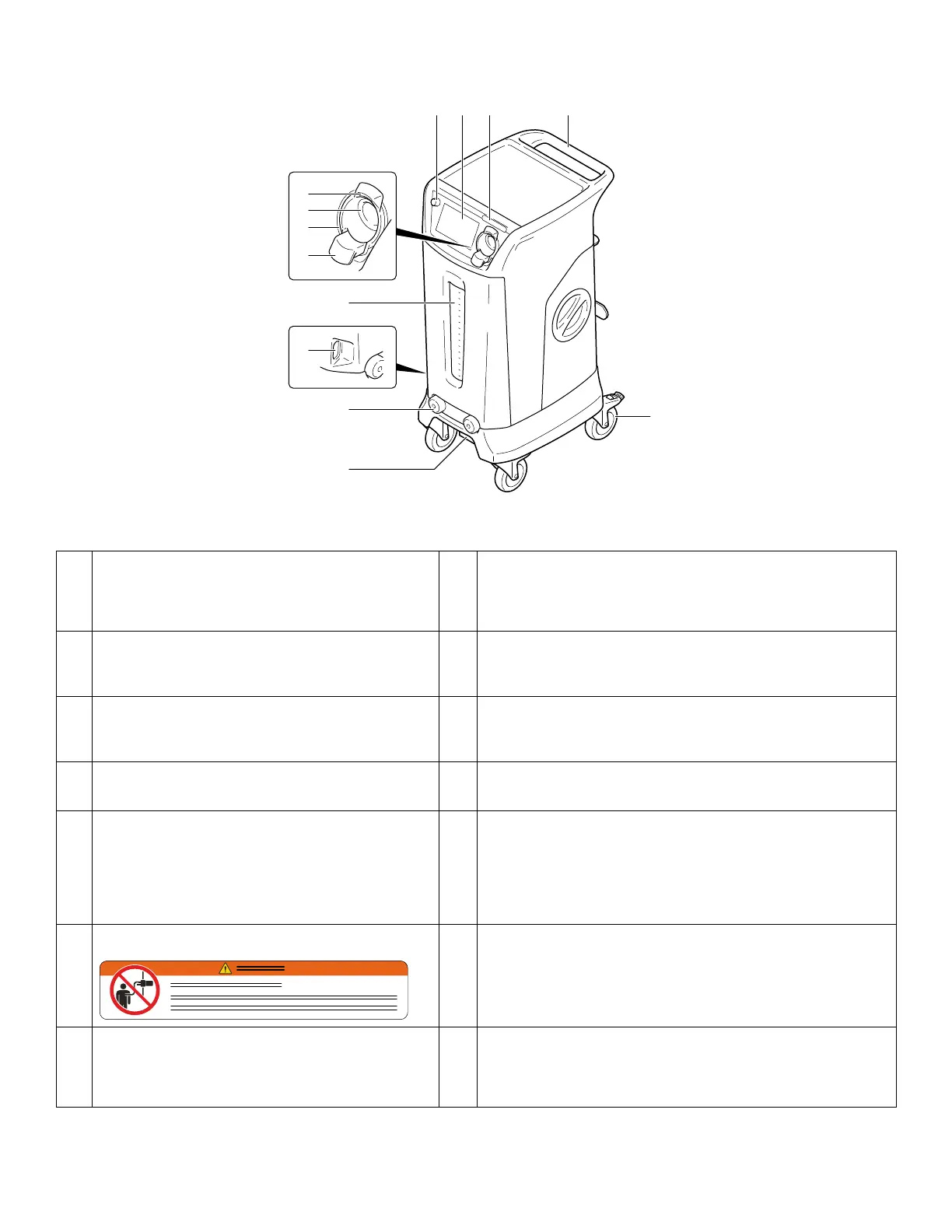

FFiigguurree 55 –– RRoovveerr —— FFrroonntt VViieeww
AA DDoocckkiinngg SSttaattiioonn IInntteerrffaaccee — Provides a path
for fluid waste transfer from the rover to the
docker. Provides water and detergent transfer
from the docker to the rover.
BB SSttrriikkee PPllaatteess — Facilitates the physical connection to the
docker’s electromagnets to hold the rover in place.
CC CCoommmmuunniiccaattiioonn WWiinnddooww — Allows infrared
(IR) data transfer between the docker and the
rover.
DD FFlluuiidd SSuuccttiioonn CCaanniisstteerr 88LL ((88--lliitteerr)) — Allows for the
collection and containment (storage) of fluid waste during a
surgical procedure. The canister has interior illumination.
EE EEjjeecctt BBuuttttoonn — Facilitates the removal of the
manifold.
FF SSuuccttiioonn LLiimmiitt RRaannggee IInnddiiccaattoorr — Ring style indicator
provides color-coded information about the suction limit
range setting. See Suction Limit Ranges and Colors.
GG MMaanniiffoolldd RReecceeppttaaccllee — Allows for the
installation of a single-use, disposable manifold.
HH SSppeecciimmeenn LLiigghhtt — Enables user to view the polyp
material or tissue captured within the manifold.
II SSuuccttiioonn CCoonnttrrooll DDiiaall — Used to select
(clockwise to increase, counterclockwise to
decrease) the SUCTION LIMIT. Selection
determines the maximum suction possible in the
canister. Suction will never exceed the selected
SUCTION LIMIT.
JJ MMaaiinn CCoonnttrrooll PPaanneell DDiissppllaayy — Provides interface to start
and stop suction via a touch-sensitive, color display.
Important alert and status information are also provided.
KK HHIIGGHH SSUUCCTTIIOONN DDEEVVIICCEE WWAARRNNIINNGG LLaabbeell LL HHaannddllee — Allows for relocation and positioning of the
rover.
MM CCaasstteerrss ((ffoouurr)) — Swivel casters provide
mobility for the rover to roll across a floor. All
casters have locks to prevent unintended
movement.
EN 14 700000969828 Rev-AA
