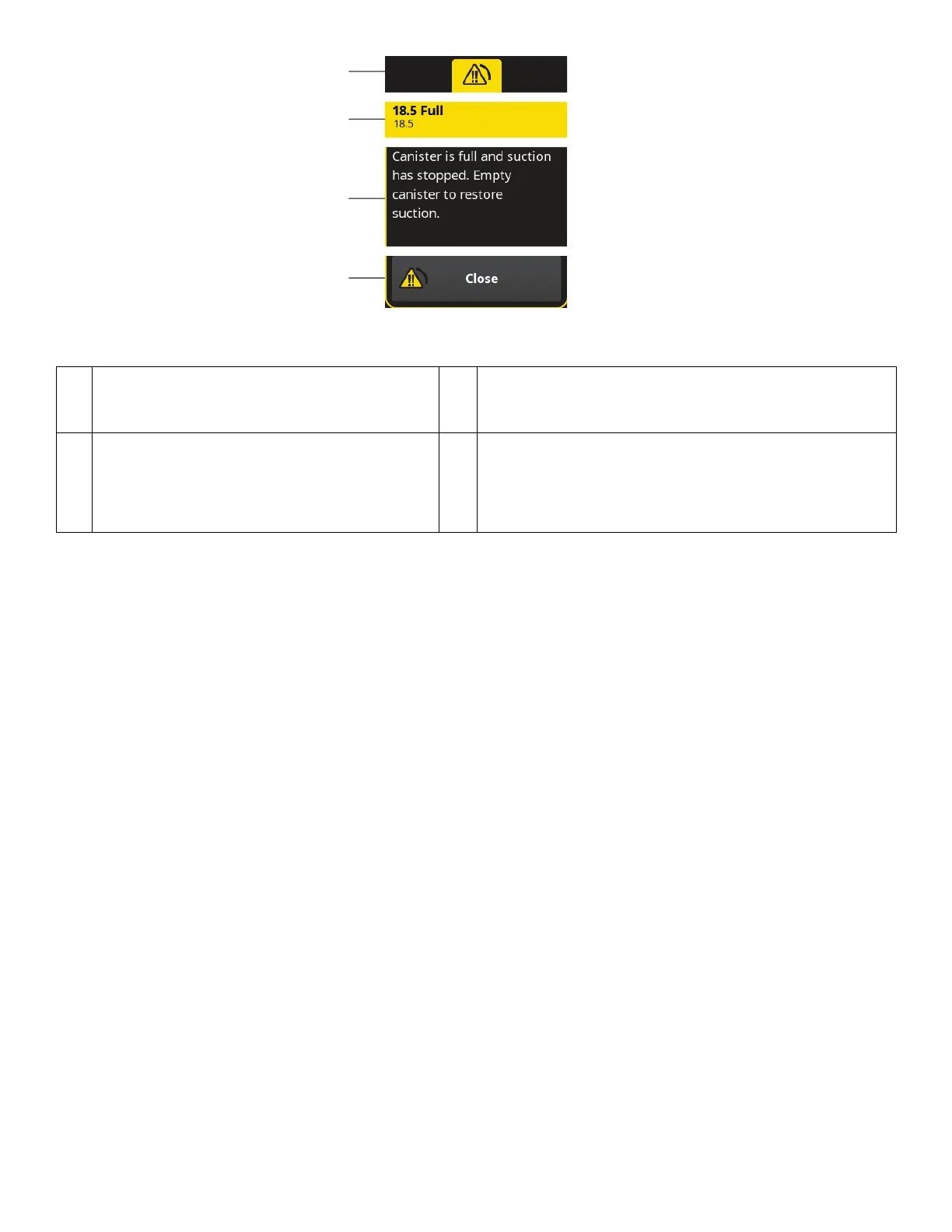

FFiigguurree 1155 –– EErrrroorr DDiiaalloogg AArreeaass
AA EErrrroorr MMeessssaaggee IInnddiiccaattoorr AArreeaa — Indicates the
error status of the rover and the number of
messages. Action is required.
BB TTiittllee AArreeaa — Identifies the message type and the
message code. See
Troubleshooting Codes
(page 62).
CC MMeessssaaggee//LLiisstt AArreeaa — Provides specific
message information. If more than one message
appears, a list of message buttons appears.
Each button allows access to a specific
message.
DD RReessppoonnssee AArreeaa — Provides a CLOSE button to exit a
message or drop-down. If more than one message
appears, BACK and FORWARD buttons appear to allow
scrolling through the message buttons.
700000969828 Rev-AA 23 EN
