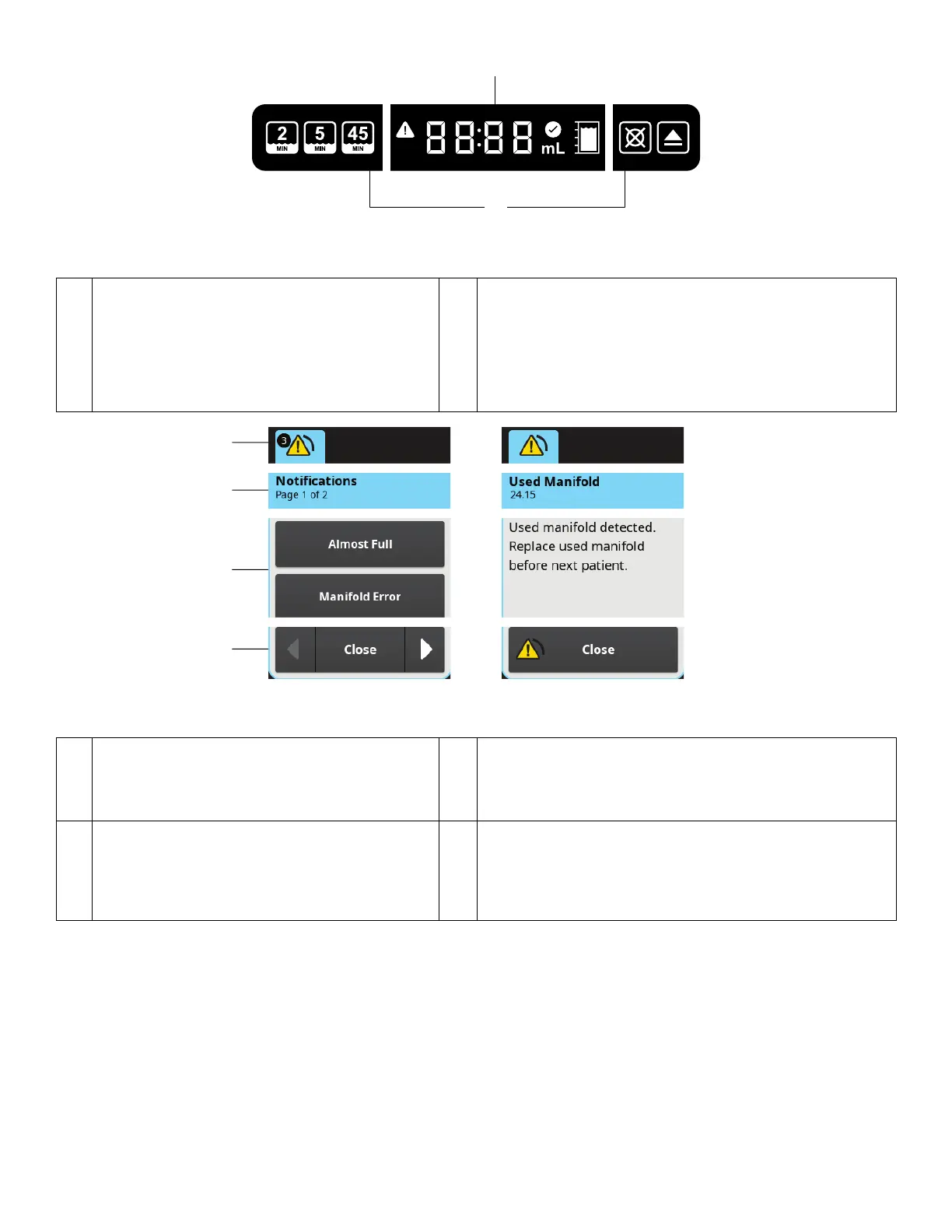

FFiigguurree 1133 –– SSeeccoonnddaarryy CCoonnttrrooll PPaanneell
AA SSttaattuuss AArreeaa — Provides fluid volume status
during the roving mode, including almost full and
full canister messages. During the docked
mode, the area provides wash cycle status,
including the time remaining for the wash cycle
to complete, any potential error messages, and
a confirmation of completion.
BB WWaasshh CCyyccllee CCoonnttrrooll AArreeaass — Allows for the manual
selection of a wash cycle option. Manual selection will
override the default cycle setting. Also provides a button to
abort an active wash cycle and an eject button to detach
the rover from the docker after a complete wash cycle. For
additional wash cycle option information, see
To Dock the
Rover
(page 54).
FFiigguurree 1144 –– NNoottiiffiiccaattiioonn DDiiaalloogg AArreeaass
AA NNoottiiffiiccaattiioonn MMeessssaaggee IInnddiiccaattoorr AArreeaa —
Indicates the notification status of the rover and
the number of messages. Action may be
required.
BB TTiittllee AArreeaa — Identifies the message type and the
message code. See
Troubleshooting Codes
(page 62).
CC MMeessssaaggee//LLiisstt AArreeaa — Provides specific
message information. If more than one message
appears, a list of message buttons appears.
Each button allows access to a specific
message.
DD RReessppoonnssee AArreeaa — Provides a CLOSE button to exit a
message or drop-down. If more than one message
appears, BACK and FORWARD buttons appear to allow
scrolling through the message buttons.
EN 22 700000969828 Rev-AA
