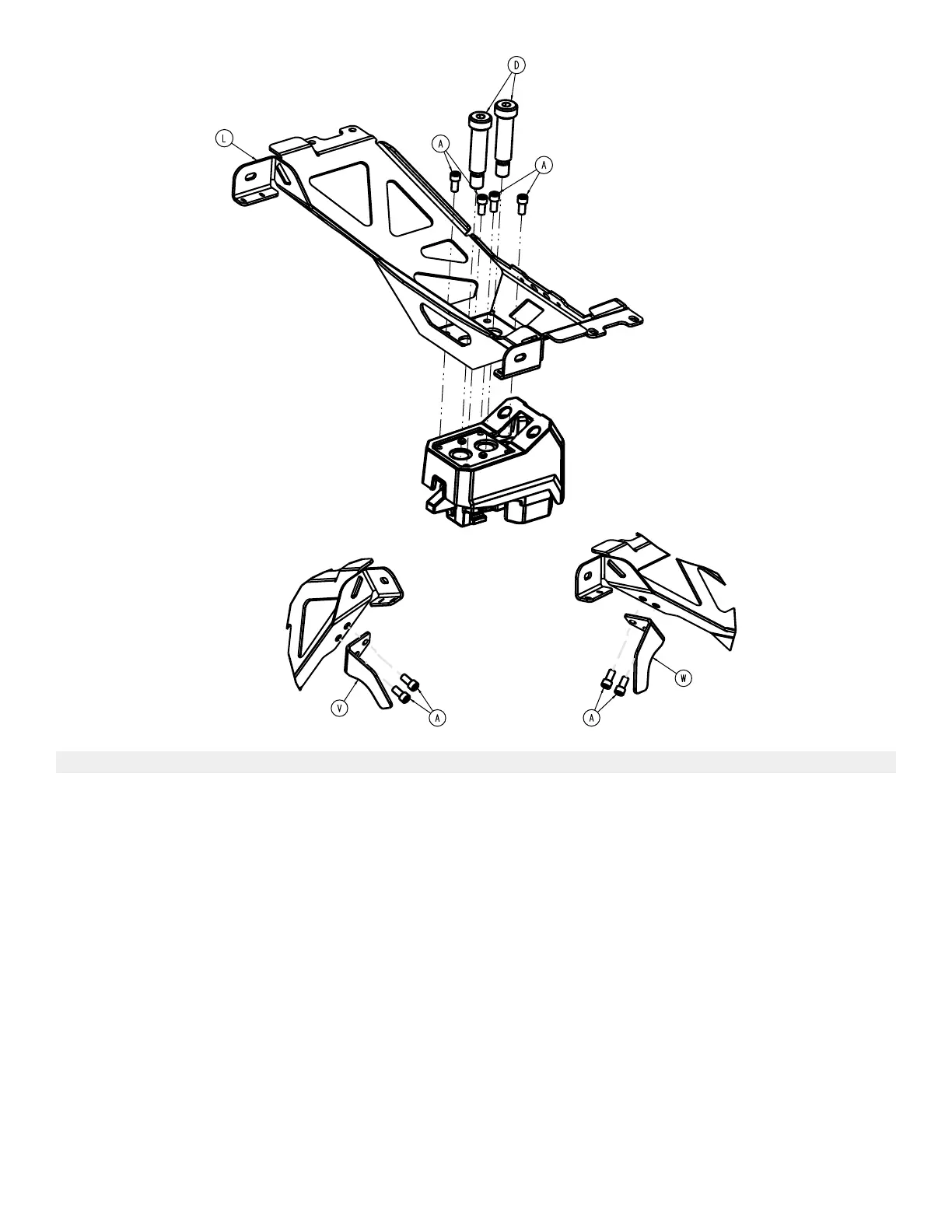

Stryker Performance-PRO XT - Page 104

Torque item A to
200 in-lb ± 15 %
Torque item A to
200 in-lb ± 15 %
Torque item A to
30 in-lb ± 15 %
IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 0004-660-000 Socket head cap screw 8
B 0004-661-000 Socket head cap screw 4
C 0008-088-000 Socket head set screw 2
D 0008-087-000 Socket head set screw 2
F 0037-010-000 Hole plug 1
G 0038-889-000 Compression spring 2
H 0038-891-000 Torsion spring 1
J 0081-437-000 Sleeve bearing 2
L 6500-002-050 Bracket weldment 1
M 650000020111 Foot end fastener guide 1
N 6500-002-112 Cot foot end fastener hook 2
P 650001020113 Foot end fastener bearing plate 1
R 6500-002-122 Foot end faster cot wear pad 2
T 650001020130 Floating plate 1
U 6500-002-136 Foot end fastener cot housing 1
V 6500-002-146 Foot end fastener cot hook, right 1
