Stryker Performance-PRO XT Maintenance Manual

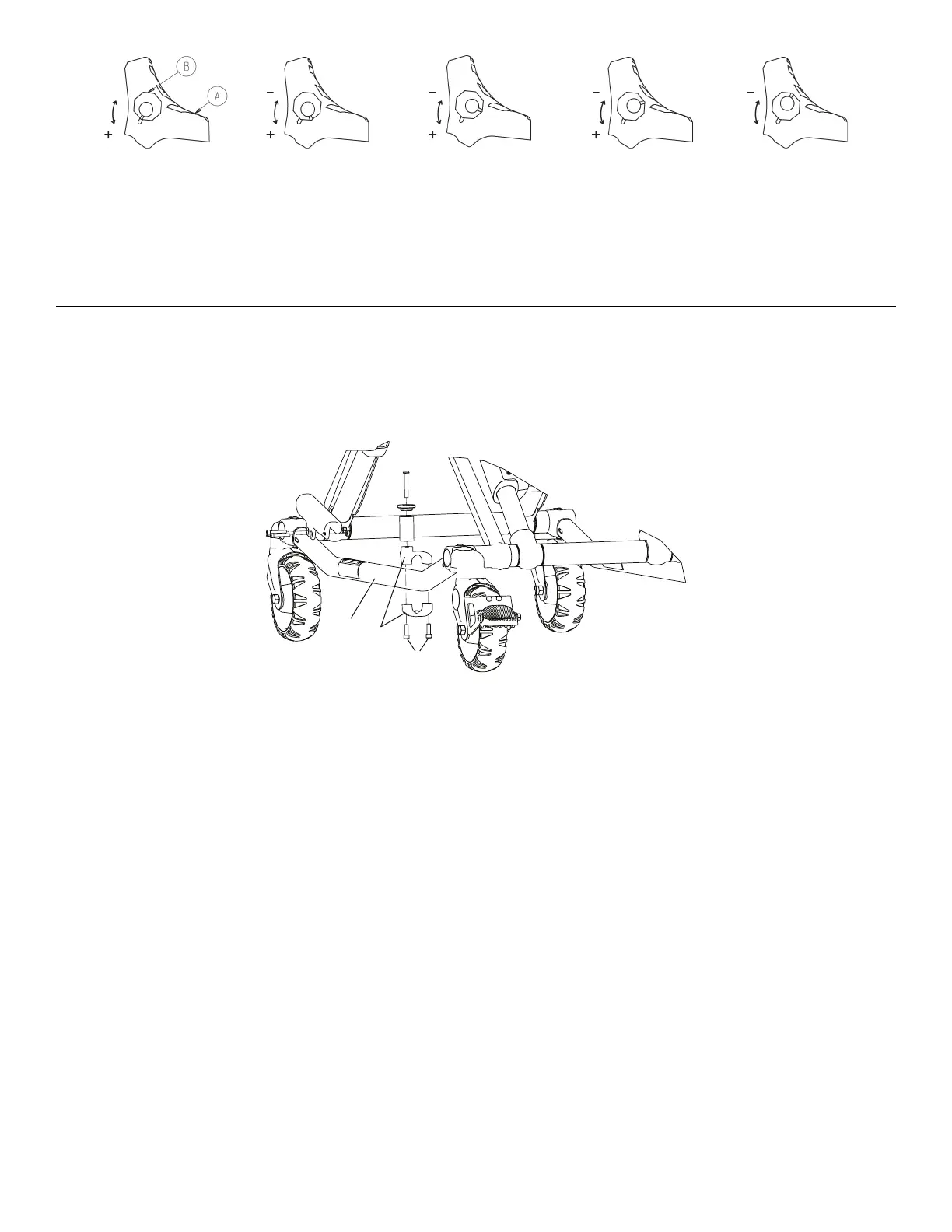

FFiigguurree 44 –– WWhheeeell lloocckkiinngg ffoorrccee aaddjjuussttmmeenntt
CCoott rreettaaiinniinngg ppoosstt aaddjjuussttmmeenntt
TToooollss rreeqquuiirreedd::
• T30 Torx driver
CCAAUUTTIIOONN -- The cot retaining post is shipped pre-configured for an X-frame cot. If the fastener has been configured for an
H-frame cot, you must adjust the retaining post to accommodate the fastener.
PPrroocceedduurree::
1. Using a T30 Torx driver, remove the two socket head cap screws (A) that hold the brackets (B) to the base frame (C)
(Figure 5). Save the screws.
A
B
C
FFiigguurree 55 –– CCoott rreettaaiinniinngg ppoosstt
2. Turn the bottom bracket 180˚.
3. Using a T30 Torx driver, reinstall the two socket head cap screws that were removed in step 1.
4. Verify proper operation before you return the product to service.
TToo ddeetteerrmmiinnee iiff yyoouurr ccoott iiss aann XX--ffrraammee oorr HH--ffrraammee ccoott,, llooookk ffoorr aann aarrrrooww oorr ggrroooovvee oonn tthhee bboottttoomm bbrraacckkeett ooff tthhee ccoott
rreettaaiinniinngg ppoosstt..
• The cot retaining post is set for an X-frame cot if the arrow on the bottom bracket of the retaining post points toward the
head end of the cot or if the groove in the bottom bracket is located on the inside of the patient left side of the base tube.
• The cot retaining post is set for an H-frame cot if the arrow on the bottom bracket of the retaining post points toward the
foot end of the cot or if the groove in the bottom bracket is located on the outside of the patient left side of the base tube.
CCoott rreettaaiinniinngg ppoosstt rreeppllaacceemmeenntt
TToooollss rreeqquuiirreedd::
• T30 Torx driver
• 5/32'' hex wrench
• Torque wrench (in-lb)
6086-009-002 Rev AB.2 13 EN
