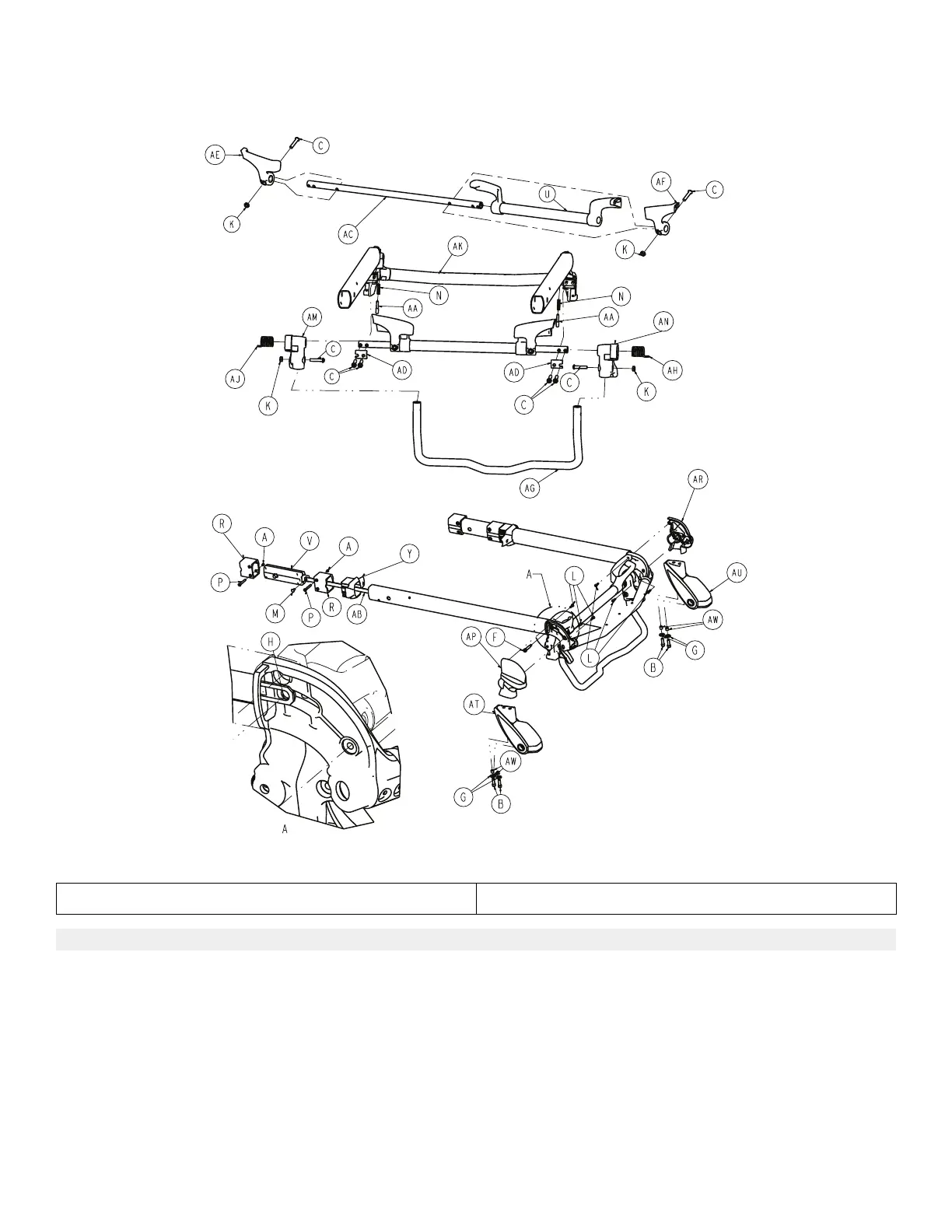

Stryker Performance-PRO XT - Head section - 6500-002-020

HHeeaadd sseeccttiioonn -- 66550000--000022--002200
Rev D (Reference only)
Torque item B
to 200 ± 40 in-lb
Torque item B
to 200 ± 40 in-lb
Note:
1 Place washer between the release link and forging
IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 0004-168-000 Button head cap screw 4
B 0004-591-000 Socket head cap screw 4
C 0004-612-000 Button head cap screw 8
F 0008-030-000 Socket head shoulder screw 2
G 0011-624-000 Washer 4
H 0014-002-000 Washer 2
K 0016-102-000 Nylock hex nut 4
L 0023-162-000 Delta screw 6
EN 80 6086-009-002 Rev AB.2
