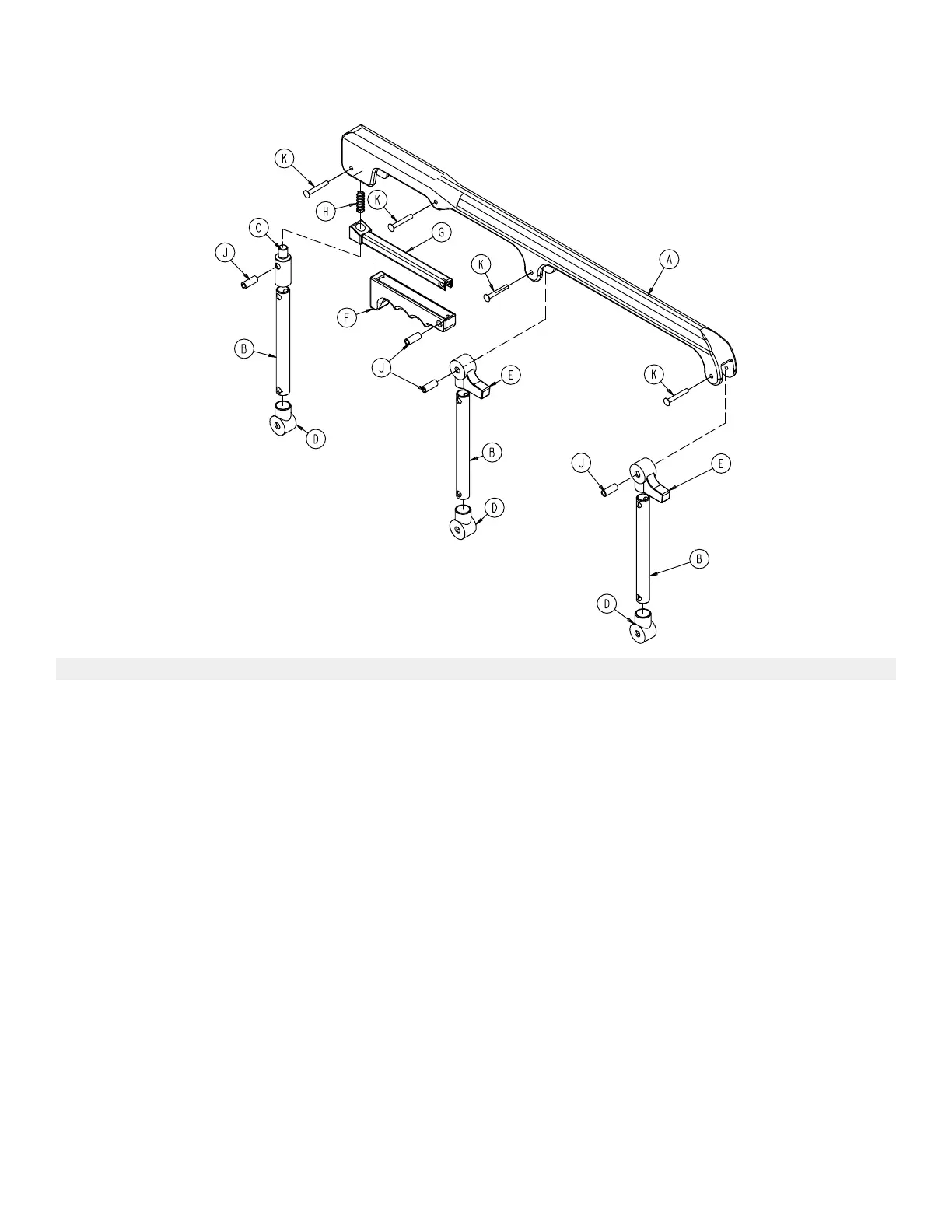

SSiiddeerraaiill aasssseemmbbllyy
6082-026-010 Rev B (Reference only)
IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 6060-025-024 Top rail 1
B 6060-025-043 Spindle 3
C 6060-025-047 Spindle lock 1
D 6060-025-041 Spindle pivot 3
E 6060-025-040 Spindle pivot stop 2
F 6060-025-029 Lock release grip 1
G 6061-125-030 Lock bar casting 1
H 0038-344-000 Lock release compression spring 1
J 6060-025-035 Pivot bushing 4
K 0025-131-000 Rivet 4
EN 48 6086-009-002 Rev AB.2
