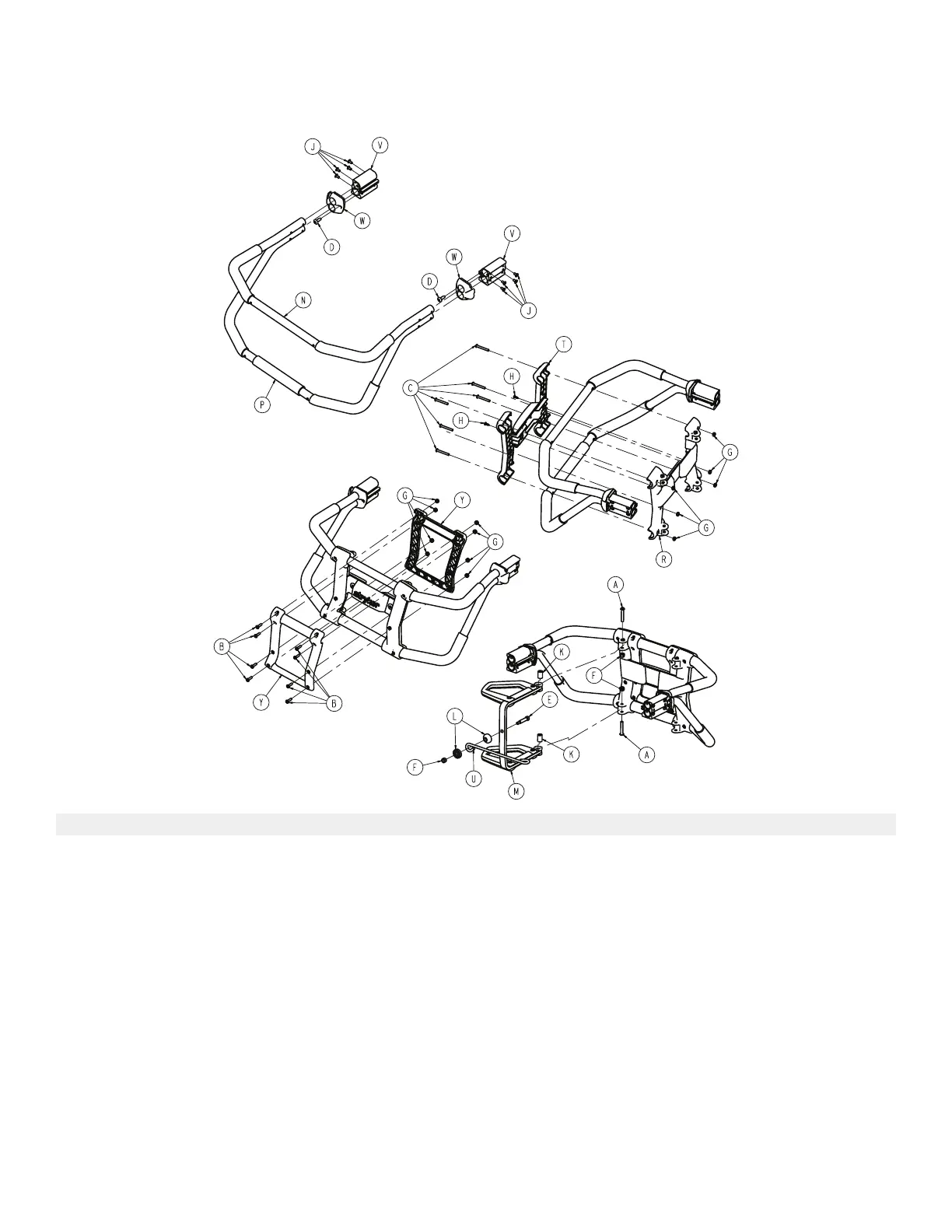

FFoooott eenndd aasssseemmbbllyy,, rriigghhtt hhaanndd ooppttiioonn -- 66008855--000011--001166
Rev B (Reference only)
IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 0004-376-000 Button head cap screw 2
B 0004-614-000 Button head cap screw 8
C 0004-615-000 Button head cap screw 6
D 0007-086-000 Truss head screw 2
E 0008-033-000 Socket head shoulder bolt 1
F 0016-028-000 Fiberlock hex nut 3
G 0016-131-000 Nylock hex nut 14
H 0023-167-000 Delta screw 2
J 0025-079-000 Dome head rivet 8
K 6080-040-044 Spacer link release 2
L 6082-040-025 Link bushing 2
M 6082-040-062 Release handle assembly 1
N 6085-001-106 Upper lift bar 1
P 6085-001-107 Lower lift bar 1
EN 58 6086-009-002 Rev AB.2
