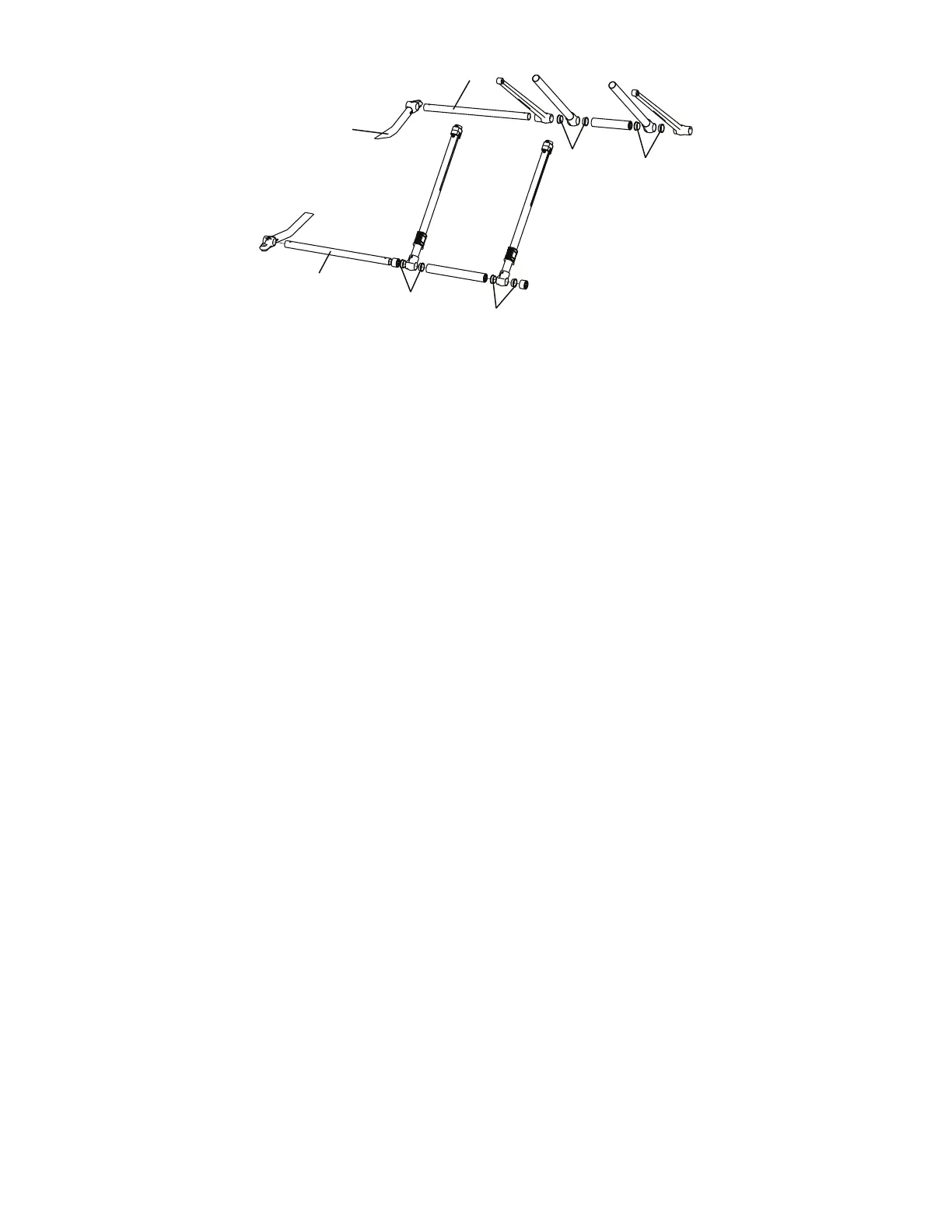

FFiigguurree 1122 –– DDiissaasssseemmbbllee tthhee XX--ffrraammee
9. Reverse steps to reinstall.
10.Verify proper operation before you return the product to service.
OOuutteerr,, iinnnneerr ttuubbee rreeppllaacceemmeenntt
TToooollss rreeqquuiirreedd::
• (2) saw horse
• 3/8” combination wrench
• 7/16” combination wrench
• T25 Torx driver
• (2) 9/16” combination wrench
• Dead blow hammer
• T27 Torx driver
PPrroocceedduurree::
1. Complete steps 1-7 from
Inner, inner tube replacement
(page 16).
2. Using a T27 Torx driver, remove the truss head screw (A) that secures the X-frame guard (B) to the inner tube (Figure
13).
EN 18 6086-009-002 Rev AB.2
