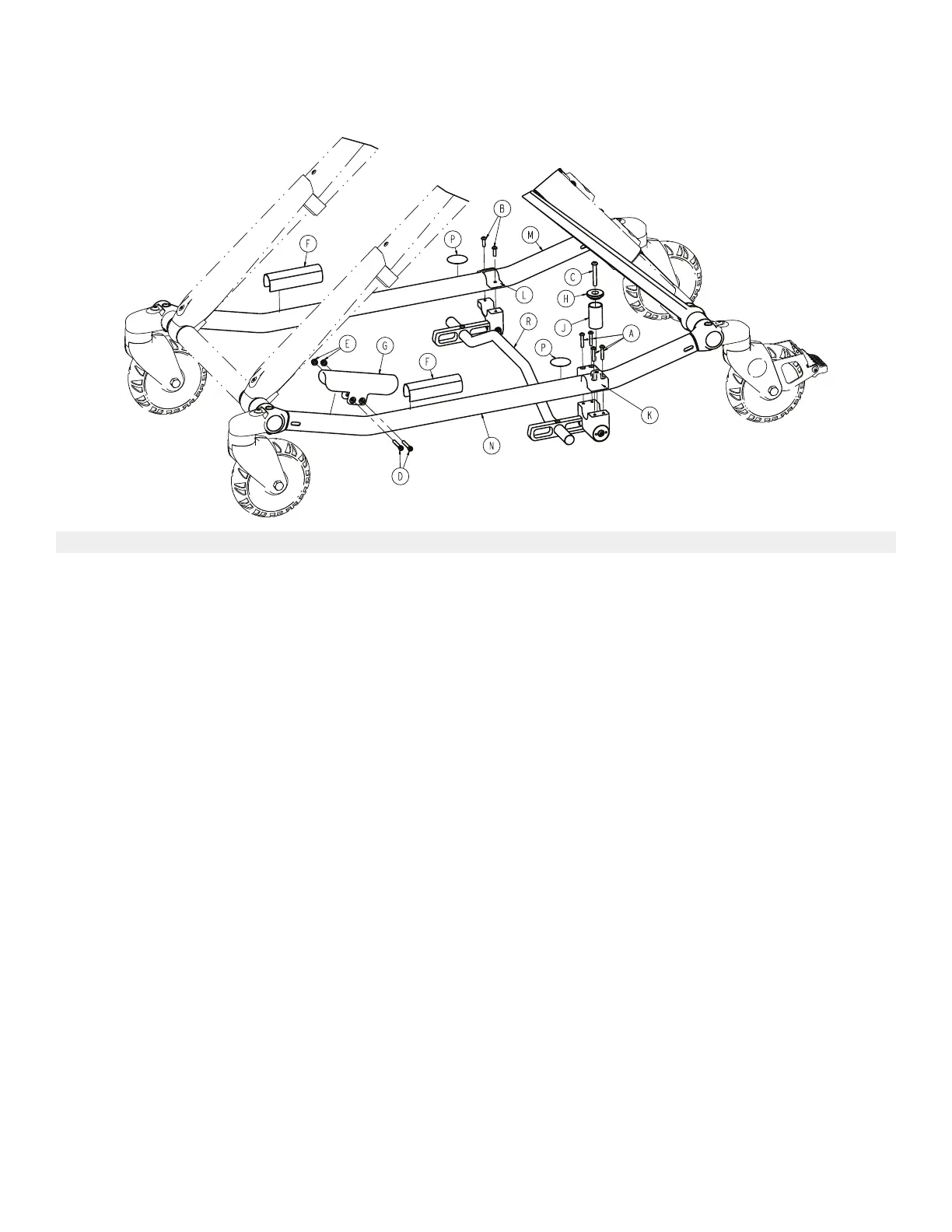

Stryker Performance-PRO XT - Kickstand assembly option - 6085-102-000

KKiicckkssttaanndd aasssseemmbbllyy ooppttiioonn -- 66008855--110022--000000
Rev A (Reference only)
Torque item C
to 100-140 in-lb
IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 0004-460-000 Button head socket screw 4
B 0004-515-000 Button head cap screw 2
C 0004-503-000 Button head cap screw 1
D 0004-160-000 Socket head cap screw 2
E 0016-003-000 Nylock hex nut 2
F 6080-090-108 Label, lift here 2
G 6500-001-302 Base tube protector 1
H 6060-004-043 Retaining post cap 1
J 6060-004-044 Post tube 1
K 6085-002-001 Kickstand cot retaining post bracket 1
L 6085-002-002 Kickstand top pin bracket 1
M 6085-001-056 Outer base tube weldment 1
N 6085-001-057 Outer base tube weldment 1
P 6506-001-900 Label, refer to instruction manual 2
R 6085-002-016
Kickstand sub assembly - 6085-002-016
(page 41)
1
EN 40 6086-009-002 Rev AB.2
