HHeeaadd sseeccttiioonn rreeppllaacceemmeenntt
TToooollss rreeqquuiirreedd::
• 7/16'' combination wrench
• 3/16'' hex wrench
PPrroocceedduurree::
1. Raise the product to the highest height position.
2. Using a 7/16" combination wrench and a 3/16" hex wrench, remove the two screws (A) that secure the cap bearings to
the base litter interface bracket (one on each side) (Figure 7).

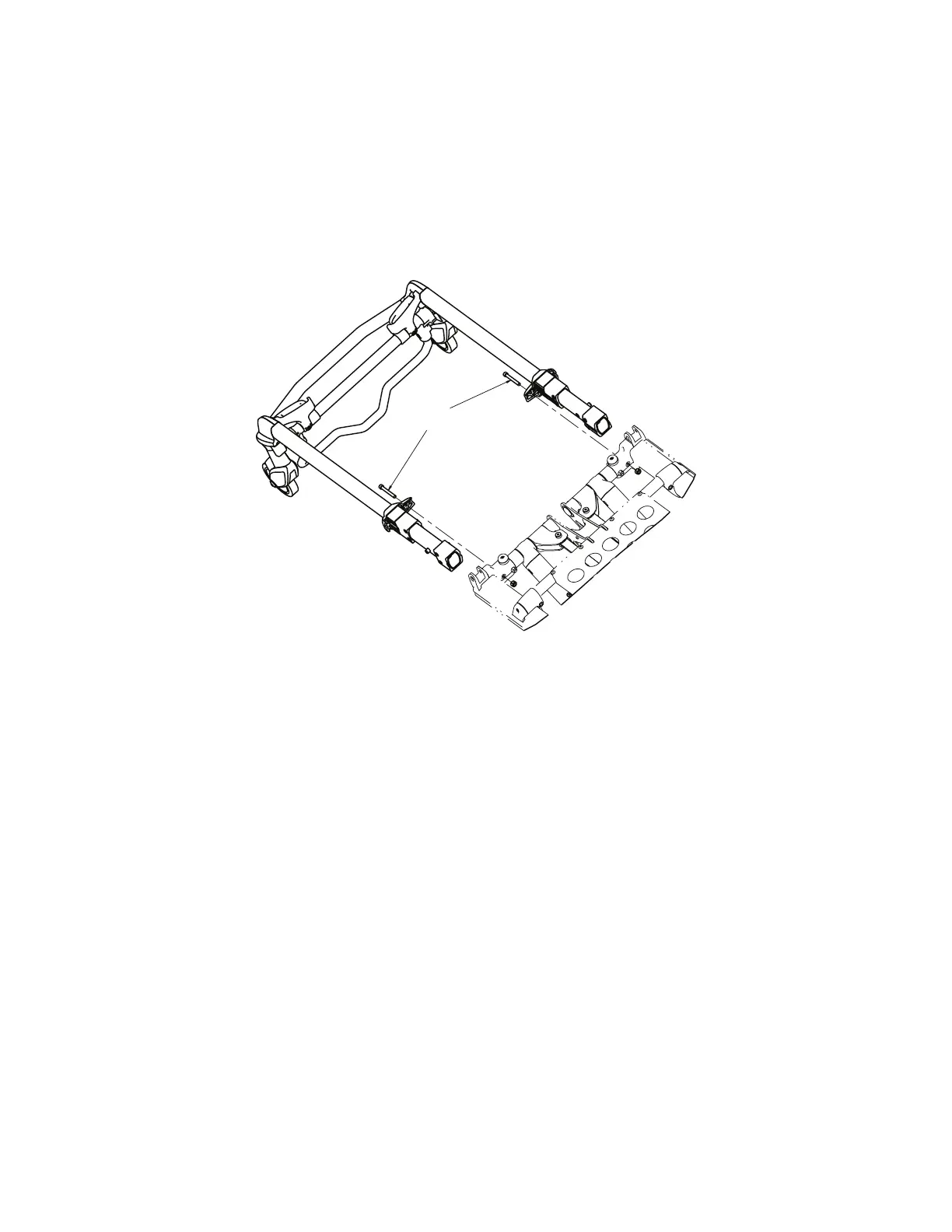

FFiigguurree 77 –– HHeeaadd sseeccttiioonn
3. Squeeze the head release handles and remove the head section assembly.
4. Reverse steps to reinstall.
5. Verify proper operation before you return the product to service.
BBaacckkrreesstt ggaass ccyylliinnddeerr rreeppllaacceemmeenntt
TToooollss rreeqquuiirreedd::
• 3/32” hex wrench
• Slotted screwdriver
PPrroocceedduurree::
1. Raise the cot and backrest to the full upright position.
2. Using a 3/32” hex wrench, loosen the set screw (A) that secures the gas shaft to the yoke (Figure 8).
6086-009-002 Rev AB.2 15 EN
