Stryker Performance-PRO XT - XPS siderail option

XXPPSS ssiiddeerraaiill ooppttiioonn
6086-032-000 Rev A (Reference only)

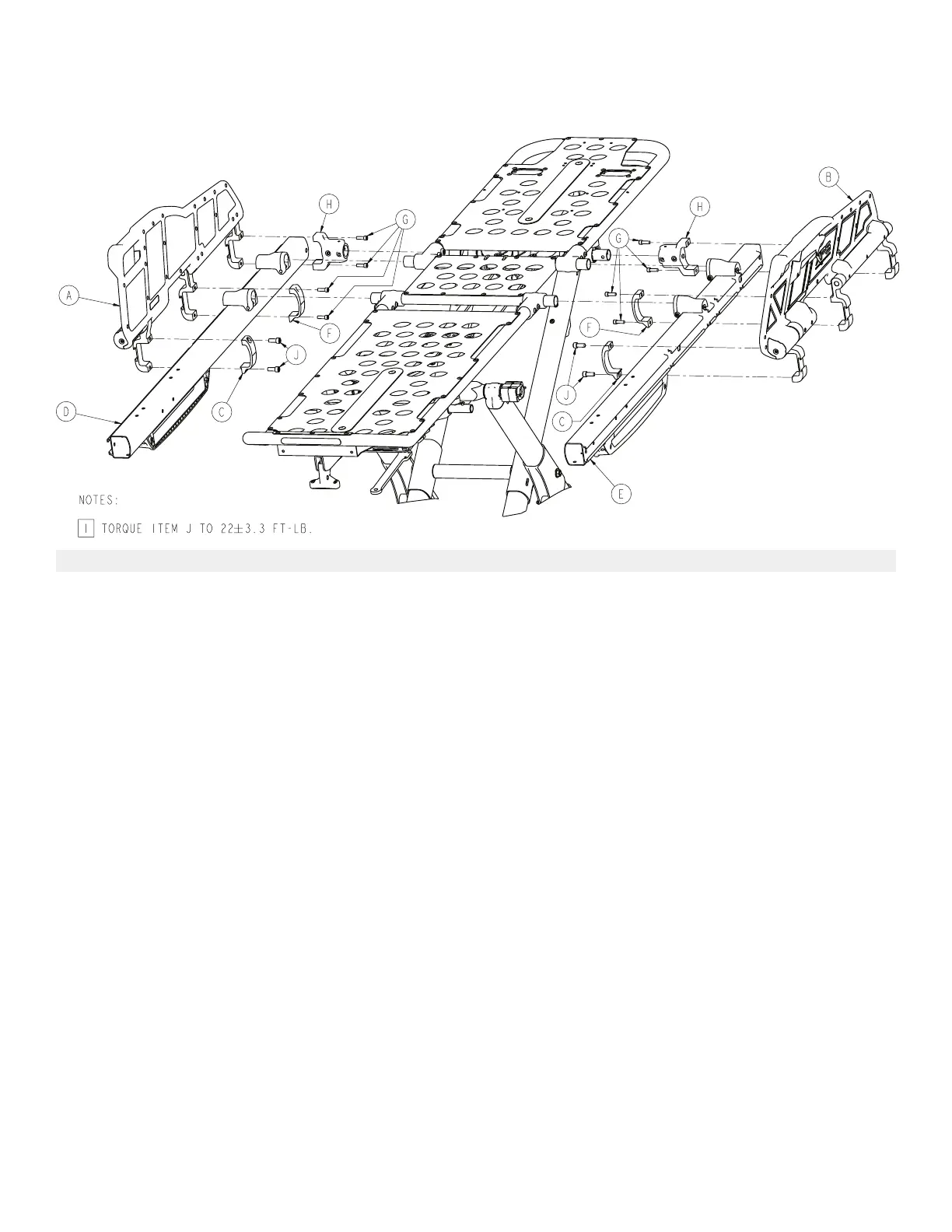

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 6500-003-034
XPS main assembly, right - 6500-003-
034
(page 54)
1
B 6500-003-044
XPS main assembly, left - 6500-003-044
(page 55)
1
C 6500-003-099 XPS siderail clamp 2
D 6086-001-025
Outer rail sub assembly, right (page 49) 1
E 6086-001-027
Outer rail sub assembly, left (page 50) 1
F 6500-001-117 Siderail clamp 2
G 0004-591-000 Socket head cap screw 8
H 6500-001-102 Base/litter interface bracket 2
J 0004-900-000 Socket head cap screw 4
6086-009-002 Rev AB.2 53 EN
