External Control
Freeze or Infinite Mode Switch Setup
You can use your Strymon MiniSwitch or an external, non-latching
(momentary) type switch to access the cloudburst Freeze or Infinite
modes�
The Strymon MiniSwitch includes an internal jumper switch that must
be changed from its factory FAV/BOOST Mode setting to work for the
cloudburst Freeze or Infinite momentary switch functionality� Follow
these steps to configure the MiniSwitch’s jumper switch and cloudburst’s
EXP/MIDI
jack for Freeze or Infinite functionality�
1 Unscrew the four screws on the bottom of the MiniSwitch chassis�
2 Once opened, locate the small jumper underneath the circuit board
and switch it from the center and left pins (FAV/BOOST Mode) to the
center and right pins (TAP Mode
)�
TAP
FAV/BOOST
TAP
FAV/BOOST

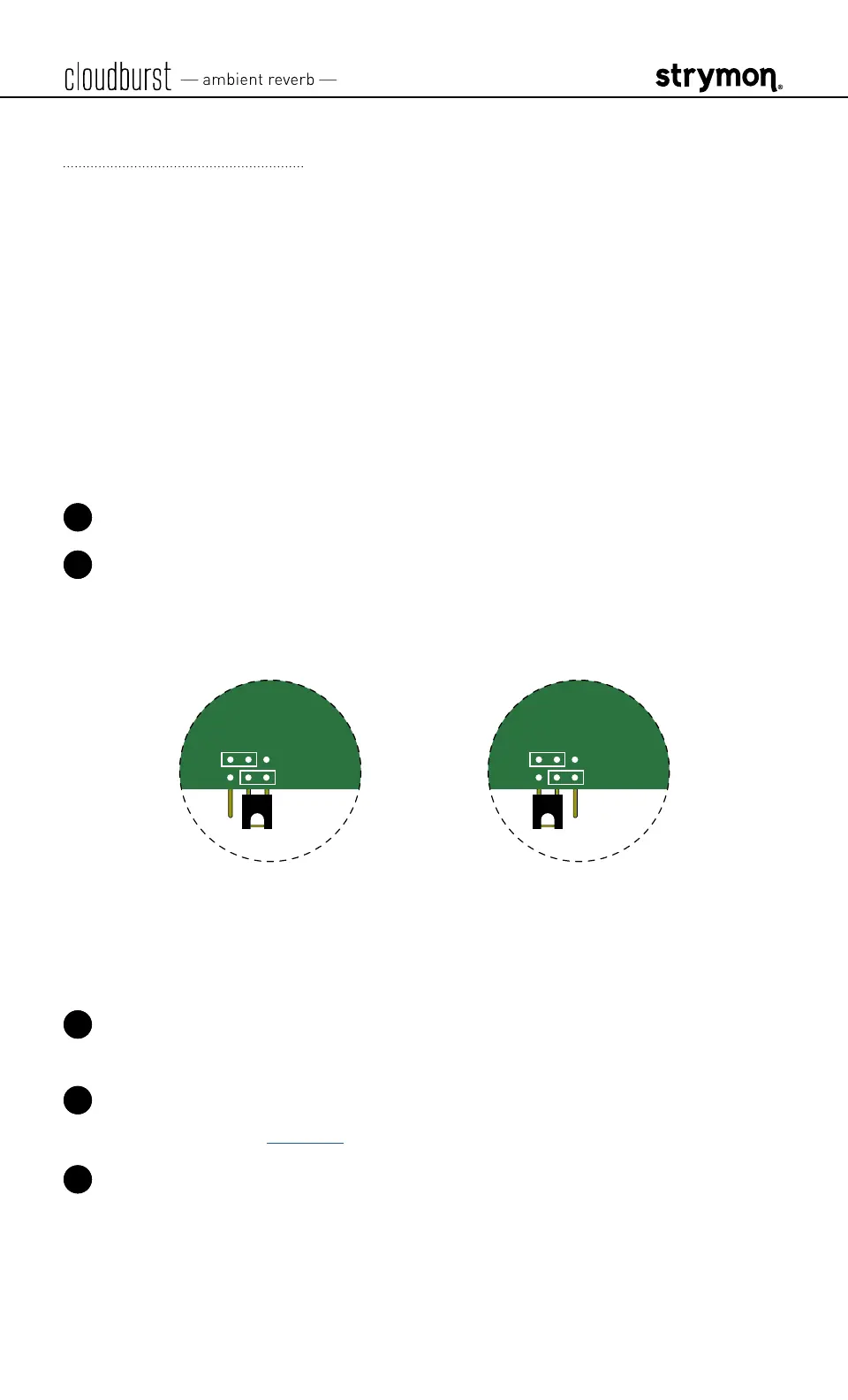

Close-up view of the MiniSwitch circuit board jumper switch
FAV/BOOST Mode
For cloudburst’s Favorite Switch
mode—place the jumper on the two
RIGHT pins. (This is how MiniSwitch is
configured from the factory.)
TAP Mode
For cloudburst’s Freeze or Infinite
Switch modes—place the jumper on the
two LEFT pins.
3 Once the jumper configuration is complete, secure the cover back on
your MiniSwitch�
4 Configure cloudburst’s EXP/MIDI jack for the Freeze or Infinite mode
as desired� (See page 11 for more info�)
5 Connect your MiniSwitch (or, optionally, a momentary switch with a
TRS cable) to the EXP/MIDI
jack�
