pg 13
Power Up Modes
Dry Signal
The Dry Signal can be set in one of three different modes�
• Digital Mode uses the converted dry signal and allows the MIX knob to
dial out the dry signal when turned past the 3 o’clock position�
• Analog Mode keeps the dry signal in analog�*
• Kill Dry Mode mutes the analog dry path signal, allowing the MIX
knob to strictly control the “wet” effect output level� This is often
preferable if using EC-1 within an amp’s parallel effects loop or a
mixer’s aux or effects send�
*NOTE: The optional Live Edit - Preamp Select feature (see page 9), when
enabled, is not applied to dry signal in Analog Mode�

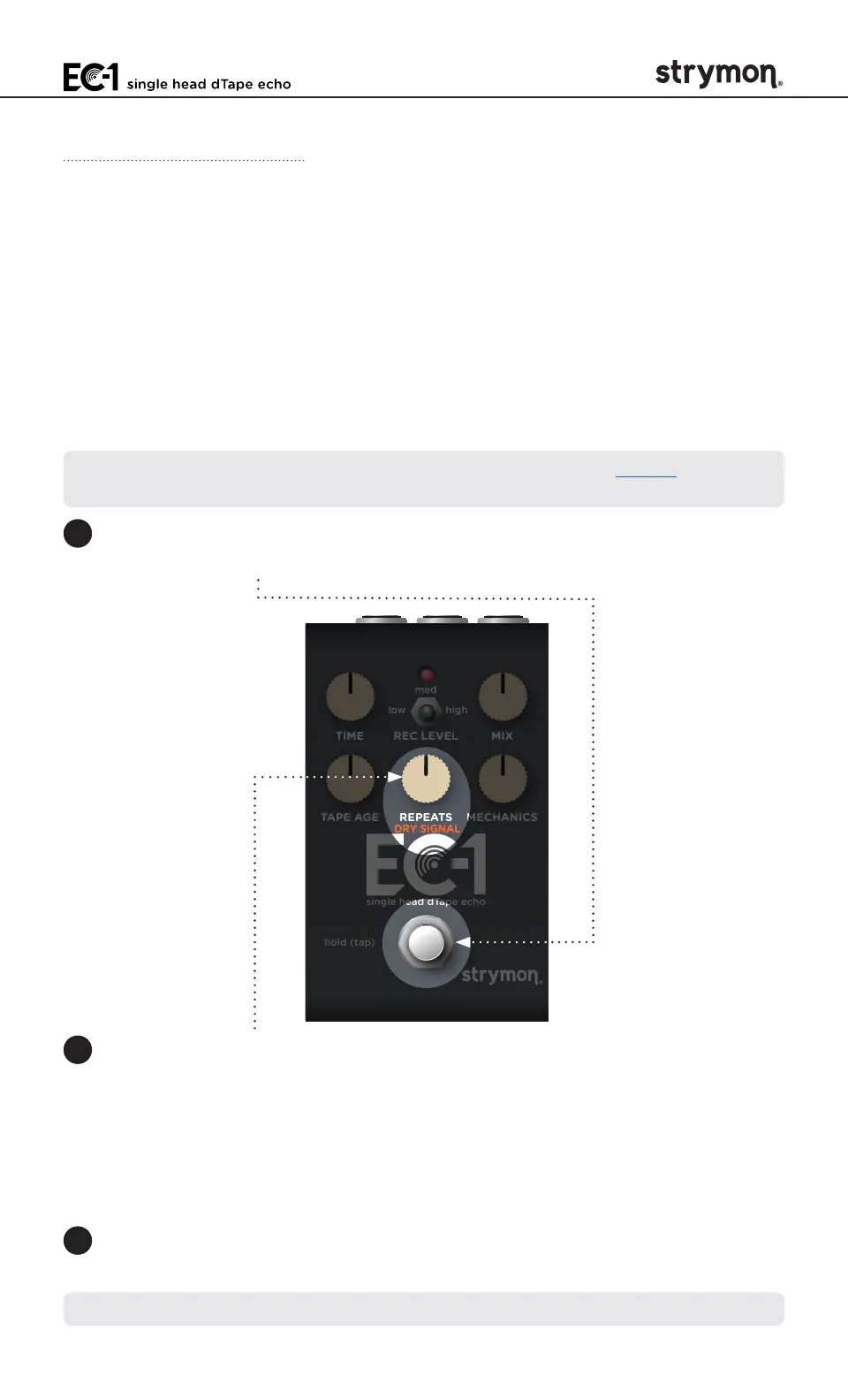

1 Press and hold the FOOTSWITCH for at least 2 seconds while powering
up EC-1� Once the LED flashes RED, release the footswitch�
TIME REC LEVEL MIX
TAPE AGE REPEATS MECHANICS
low high
med
hold (tap)
single head dTape echo
2 Turn the REPEATS (DRY SIGNAL) knob to select one of the three Dry
Signal options� The LED will change color to indicate the current
status as you turn the knob�
• Digital Mode: GREEN (default, minimum knob position)
• Analog Mode: RED (50% knob position)
• Kill Dry Mode: BLUE (maximum knob position)
3 Press the FOOTSWITCH to store the Dry Signal setting and begin
using EC-1�
NOTE: The Dry Signal setting persists across power cycles and is not saved per preset�
To Next Page
