928 Mixing Console
E 1/2 General
Edition: 07.02.01
1.1 Utilization for the purpose intended
The Studer 928 mixing console is intended for professional use.
It is presumed that the unit is operated only by trained personnel. Serv-
icing is reserved to skilled technicians.
The electrical connections may be connected only to the voltages
and signals designated in this manual.
1.2 First steps
1.2.1 Unpacking and inspection
Your new mixing console is shipped in a special packing which pro-
tects the units against mechanical shock during transit. Care should
be exercised when unpacking so that the surfaces do not get marred.
Verify that the content of the packing agrees with the items listed on
the enclosed shipping list.
Check the condition of the equipment for signs of shipping damage. If
there should be any complaints you should immediately notify the for-
warding agent and your nearest Studer distributor.
Please retain the original packing material because it offers the best
protection in case your equipment ever needs to be transported.
1.2.2 Installation
The power supply units are auto-ranging; therefore no voltage selec-
tor must be adjusted before connecting them to the mains.
General precautions: Do not use the units in conditions of excessive heat or cold, near any
source of moisture, in excessively humid environments, or in positions
where they are likely to be subjected to vibration or dust. Do not use
any liquids to clean the exterior of the units. A soft, dry cloth or brush
will usually do.
Ventilation/rack mounting: When installing the power supply unit in a rack or any other location,
make sure that there is adequate ventilation. The unit should be situ-
ated so that its location or position does not interfere with its proper

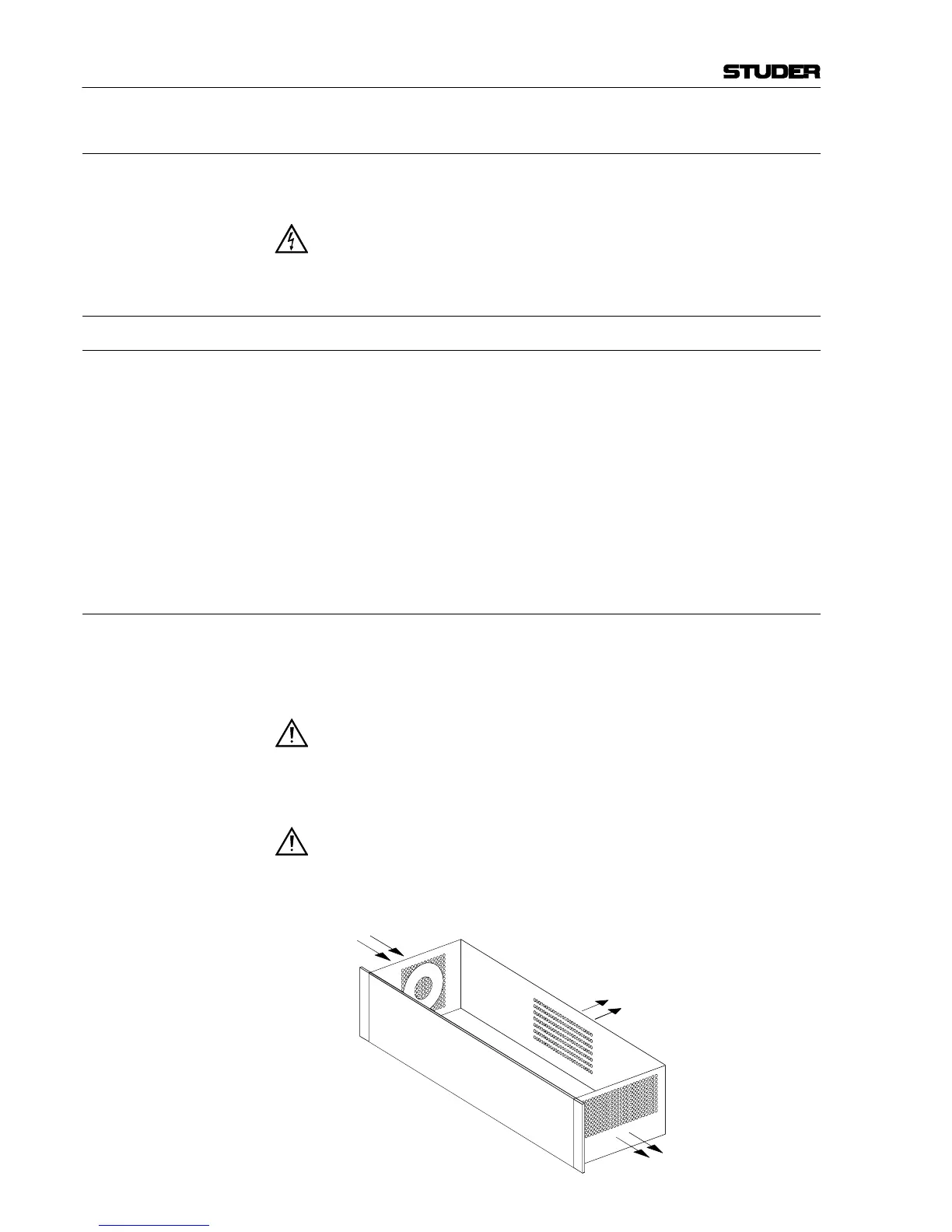

ventilation. Please refer to the drawing below.
If the power supply unit is rack mounted, the feet may be removed;
these may be unscrewed from the outside – do not open the case.
Fan
Air flow
Air flow
Air flow
Supply unit, versions
1.918.210.00...211.81
