3.1.4 MASTER UNIT 1.928.320
Insert

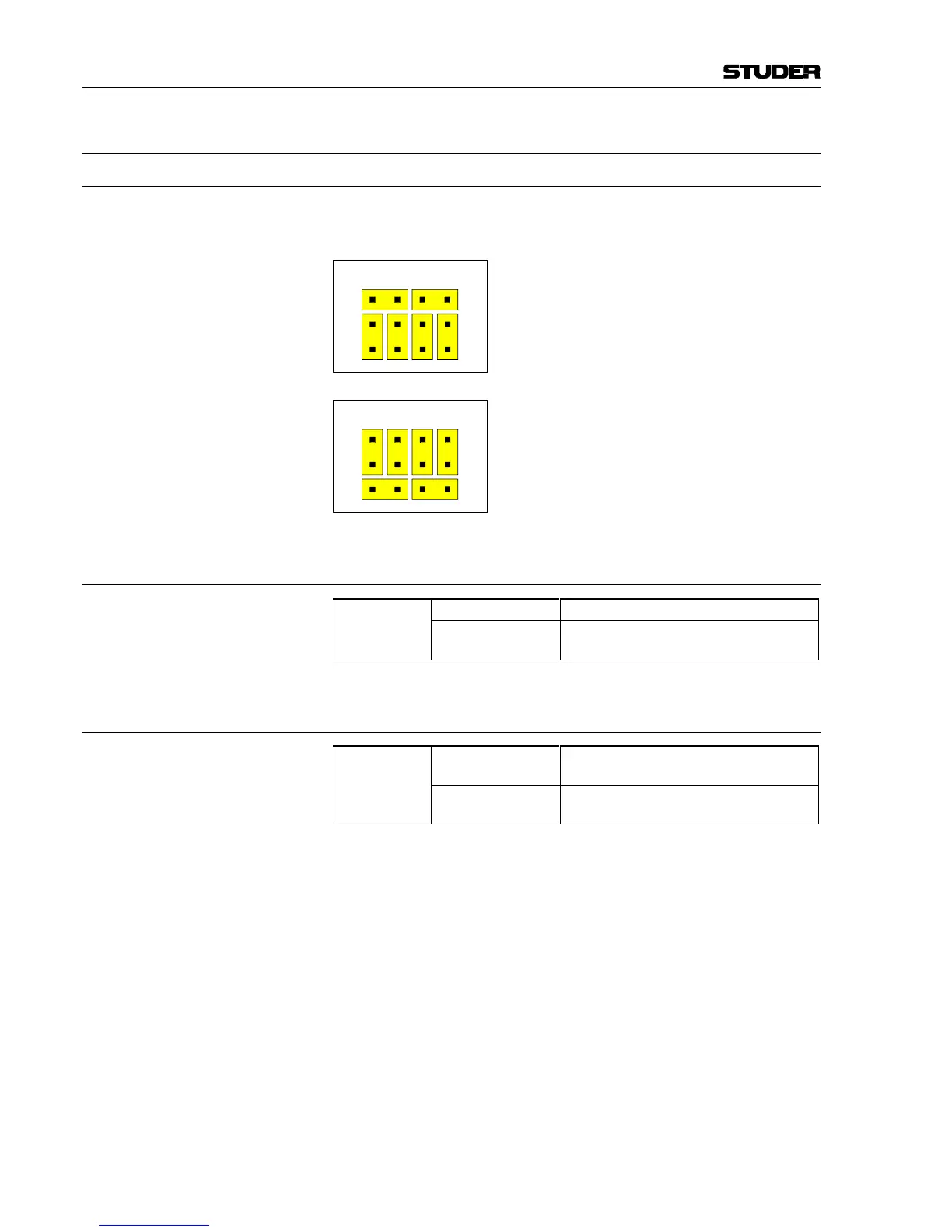

With the settings of jumpers J2...J5, the insert point of the master chan-
nel can be placed either before or after the fader.
Pre-fader insert (default)
J2 J3 J4 J5
1
2
3
Post-fader insert
1
2
3
J2 J3 J4 J5
Talkback
J1
closed (default)
Talkback signal interrupts the master signal
open
Talkback signal is mixed down to the master
signal
Fader start signal
J6
1-2 (default)
Fader start output REM is closed when the
master fader is open
2-3
Fader start output on REM can be controlled
externally
