Studer 928 Service Manual

E 3/22 Alignment
928 Mixing Console
Edition:
07.02.01
3.3.5 Group unit 1.928.230
First, verify the jumpers according to the jumpers list in sec-
tion 3.1.3, in order to prevent the groups from routing to them-
selves (e.g. that group 1/2 can only be routed to all the other
groups, but not to group 1/2. Therefore, jumper J5 must not be
inserted).
Fader calibration:
• Feed test signal with nominal level (1 kHz, typ. +6 or +10 dBu)
to the LINE input of a mono channel.
• Route the signal to the group to be adjusted.
• Remove the Group unit from the console and reconnect it via
the bus adapter (optionally available; order no. 1.228.332.00).
• Set the LINE GAIN potentiometer to center position (CAL.),
switch filters off, and set the input and group faders to their
0 dB positions.
• Connect the unbalanced input of the AF voltmeter to the “after
fader” point of jumper J1, i.e. position 3.
• Adjust the measured level with trimmer potentiometer PR3 to
6 dB below nominal level because of the unbalanced meas-
urement.
Distortion:
• Connect the distortion analyzer to the corresponding group
output.
• Adjust with trimmer potentiometer PR5 to minimum distortion.
Group output level:
• Connect the AF voltmeter to the corresponding group output.
• Adjust the measured level with trimmer potentiometer PR4 to
nominal level.
Limiter distortion:
• Connect the distortion analyzer to the corresponding group
output.
• Activate the limiter/compressor section by pressing the LIM/
COMPR IN key.
• Adjust with trimmer potentiometer PR2 to minimum distortion.
Limiter level:
• Connect the AF voltmeter to the corresponding group output.
• Increase the input level with GAIN potentiometer by 10.2 dB
(nominal level +10.2 dB).
• Set the DRIVE potentiometer to its center position, and the
RATIO potentiometer to its maximum (limiter) position.
• Adjust the group output level with trimmer potentiometer PR1
to nominal level +0.2 dB.
Meter:
• If available, adjust the corresponding limiter meter to +10 dB
indication.
J2J3 J4J5
PR1
PR2
THRES- HOLD LIM/COMP
THD NULL LIM/COMP
J1
PR5
THD NULL FADER
J6 J7 J8
PR4
OUTPUT LEVEL
PR3
POST CAL

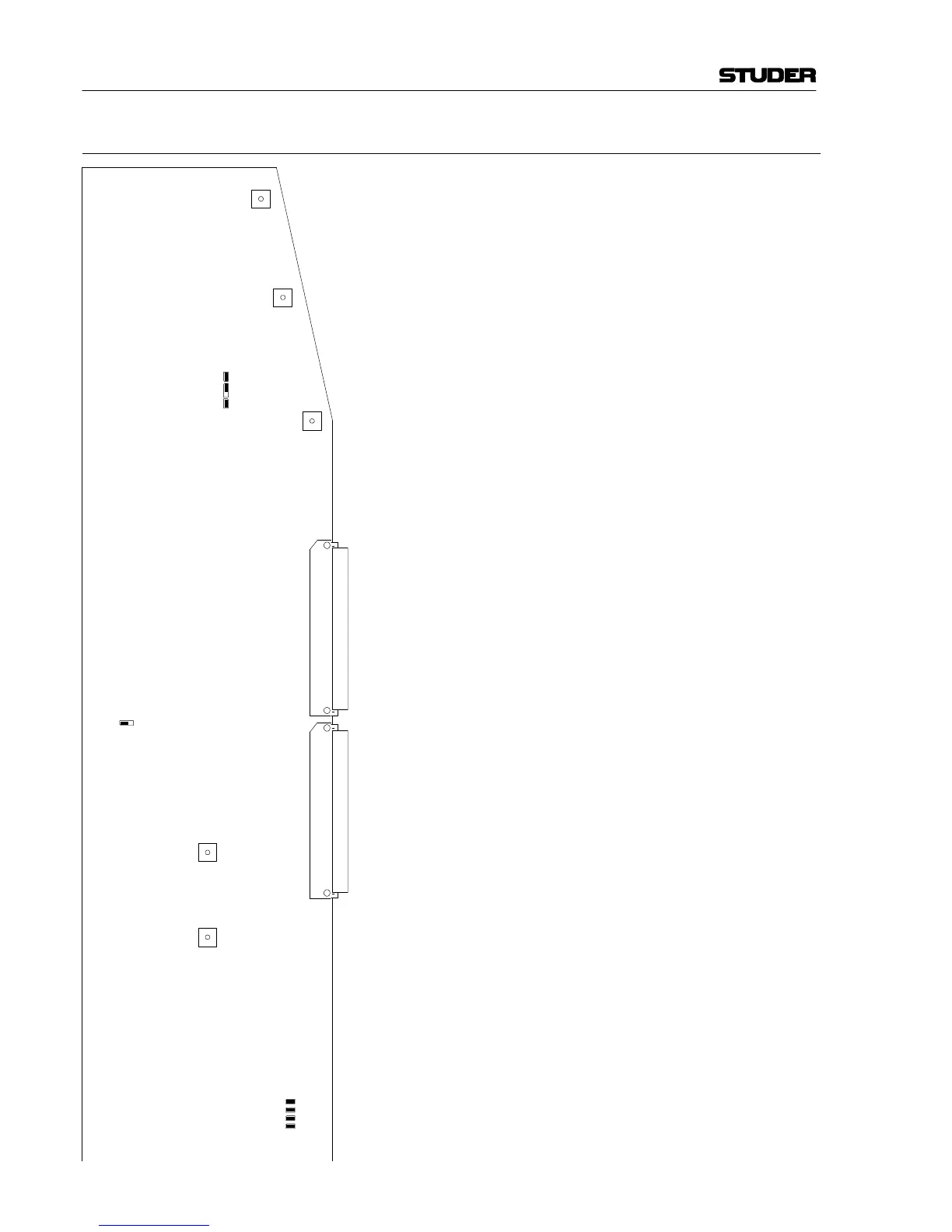

Main Board
1.928.230
(component side)
