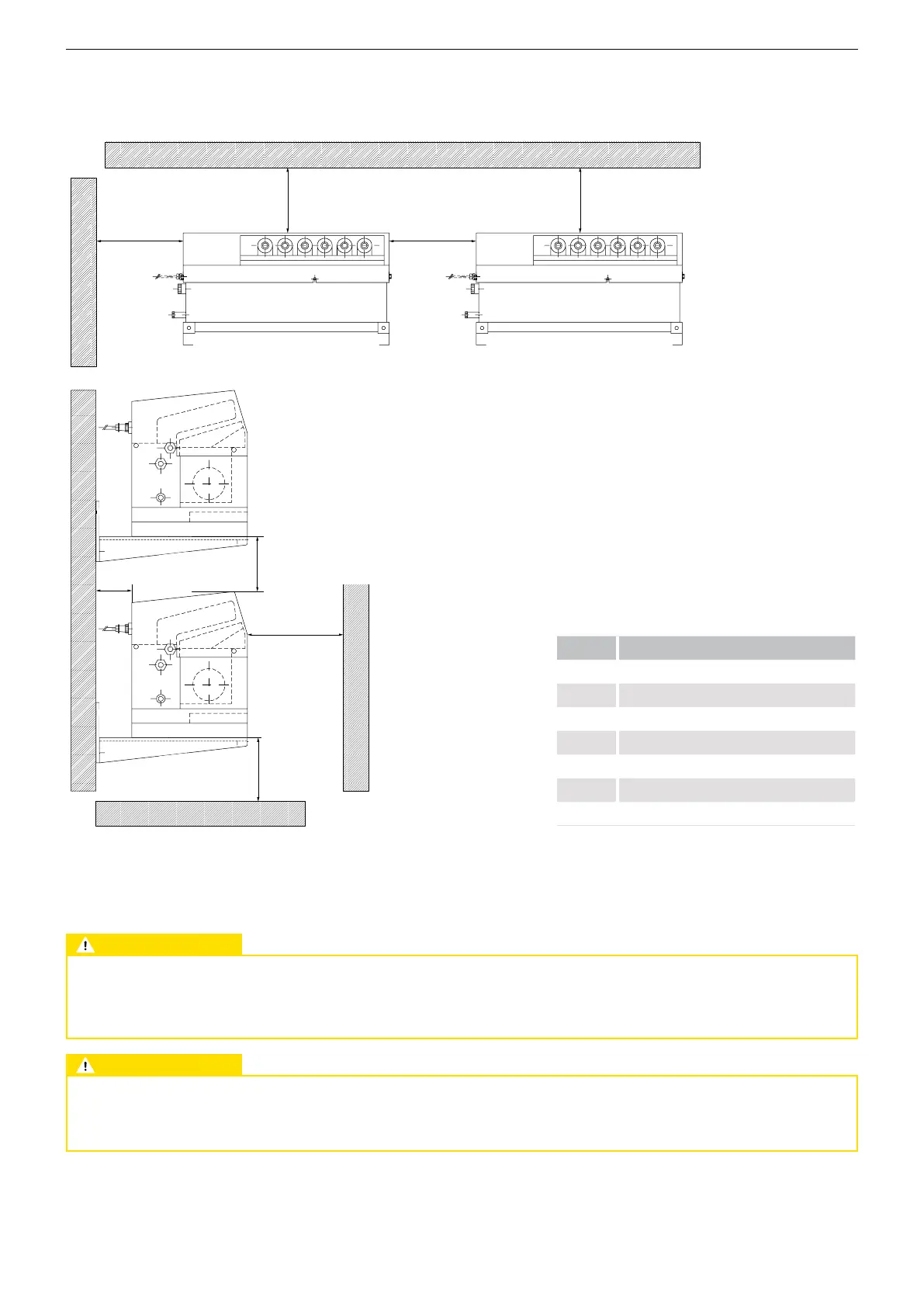

7.2. Installation clearances
A
C
B
D
E
F
G
A
CAUTION
Minimum distance from persons.
Persons in the fan blow-out area must maintain a minimum distance of 5000 mm.
●
Seesection"5.1.Humidierdistance"onpage27.
CAUTION
Space for maintenance and repair work.
Duringinstallation,alwaysleavesufcientspaceformaintenanceandrepairwork.Insufcientspace
can cause maintenance personnel to suffer injuries and accidents!
Item Dimensions in mm.
A 500
B 300
C 300
D 113
E 400
F 500
G 3000
