STULZUltraSonic-SystemforDirectRoomHumidicationBNB-  Sparepartslists
13. Spare parts lists
All sizes in mm.

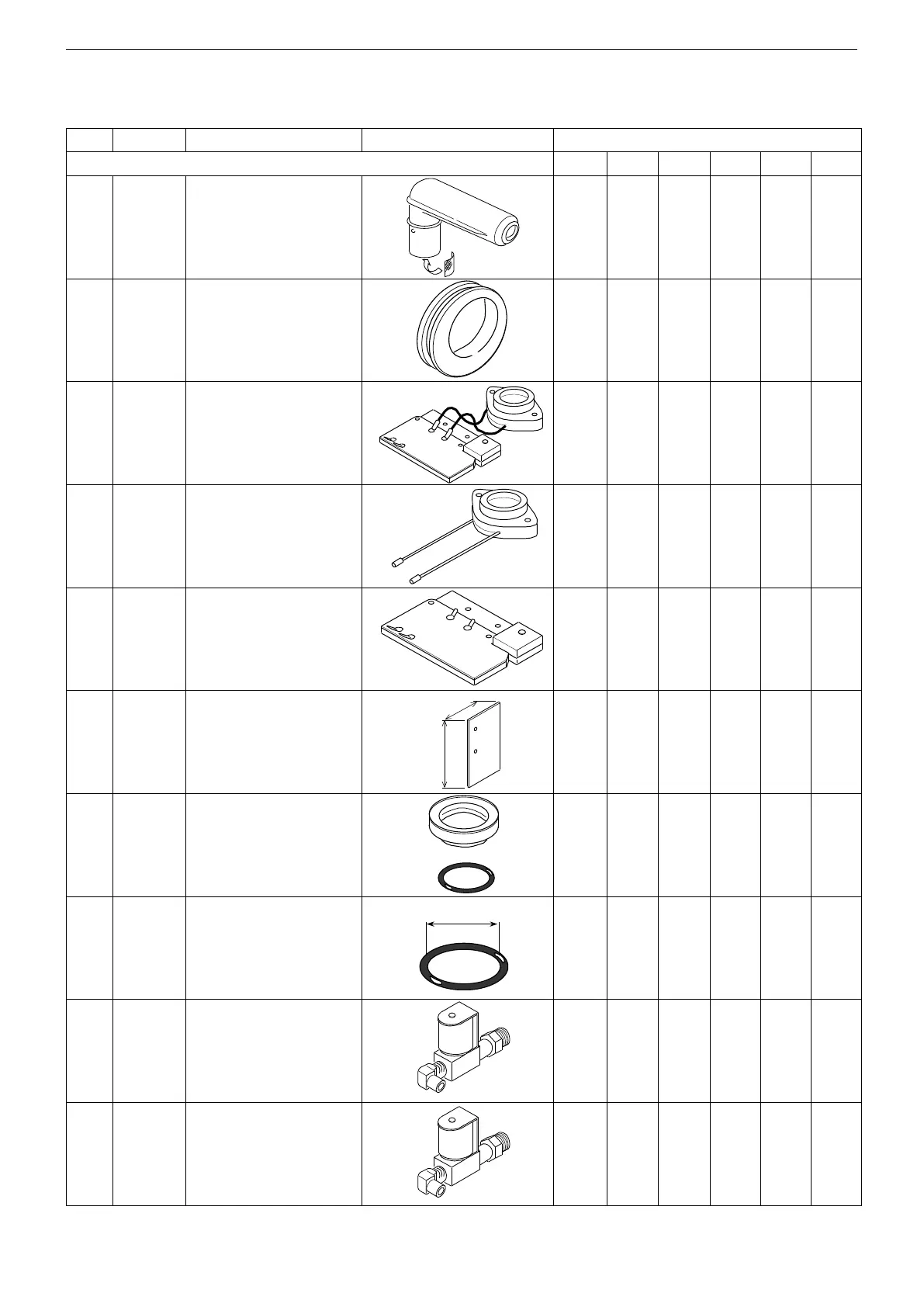

Item Item no. Designation Illustration No. of BNBs
1000A 2000A 3000A 4000A 5000A 8000A
1 1220355 Mist guide tube
incl. grille
2 4 6 8 10 16
2 M70836 Rubber grommet of
mist guide tube
2 4 6 8 10 16
3 L50070 Nebulizer unit
incl. silicon sheet,
not incl. housing
2 4 6 8 10 16
4 L50098 Transducer
incl. cable L = 100mm
2 4 6 8 10 16
5 L50095 Nebulizer print plate
incl. silicon sheet,
not incl. housing
2 4 6 8 10 16
6 M01318 Silicon sheet 2 4 6 8 10 16
7 L50099 Spacer for transducer
incl. gasket
2 4 6 8 10 16
8 M70985 Gasket for spacer not
incl. spacer
2 4 6 8 10 16
9 M75226 Stainlesssteelllvalve
incl. coil 48V AC
(optional)
1 1 1 1 1 1
10 1220332 Fill valve
incl. coil 48V AC
1 1 1 1 1 1
22
58
19.8
