Stulz BNB Series - Wall Bracket Dimensions

EN / 10-2015 / 1000683 © STULZ GmbH, Hamburg
-
38
-
Installation   STULZUltraSonic-SystemforDirectRoomHumidicationBNB-

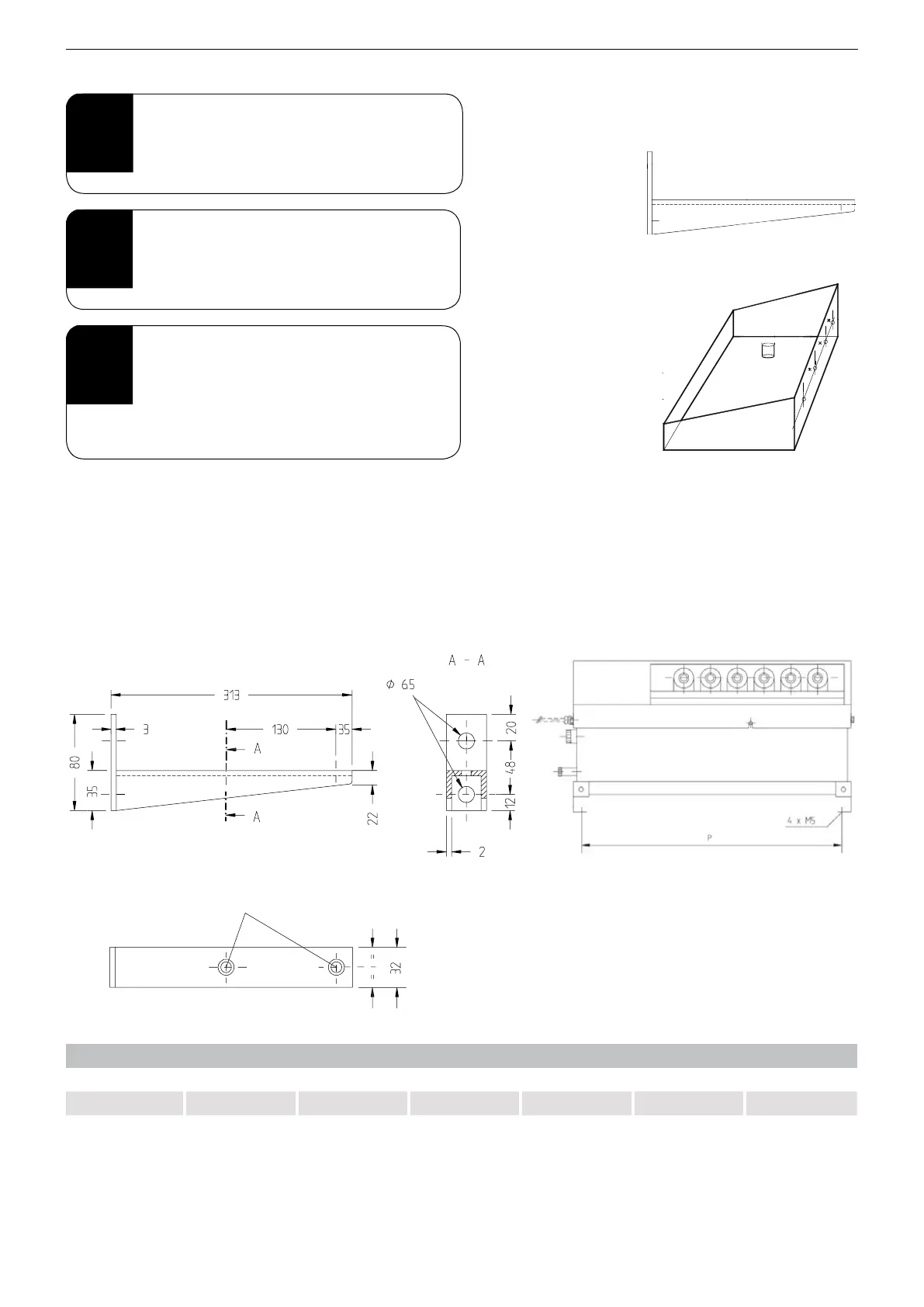

7.3.1. Wall bracket dimensions
Type:  BNB1000-8000
Material: CrNi18.82/3mm
M03182
Abmessungen Stulz BNB Befeuchter
© Stulz GmbH, Hamburg
Modell BNB 1000 2000 3000 4000 5000 8000
Leistung
kg/h
1.0 2.0 3.0 4.0 5.0 8.0
Anzahl der
Schwinger
2 4 6 8 10 16
Gewicht (kg) 7.1 9.3 11.2 14.0 16.1 23.0
Abmessung
A(mm)
254 364 474 584 694 1024
Abmessung
P(mm)
220 330 440 550 660 990
Draufsicht
Front-Ansicht
Seitenansicht
Hole spacing in mm
Unitsize: BNB 1000 A BNB 2000 A BNB 3000 A BNB 4000 A BNB 5000 A BNB 8000 A
Holespacing: 220 330 440 550 660
990
All dimensions in mm.
Wall bracket
Safety tray
1
Choose a suitable position for the ultra-
sonichumidier.
2
Afxthefasteningelementsofthechosen
mounting system to the wall using the
speciedholespacing.
3
a) Wall bracket
Securethehumidiertothewallbracket
with the M8 bolts.
b) Safety tray
Installthehumidierinthesafetytray.
Proceedasfollowstomounttheultrasonichumidieronawall:
Ø
25
Bolts M8 x 12
(forsecuringthehumidiertothebracket)
