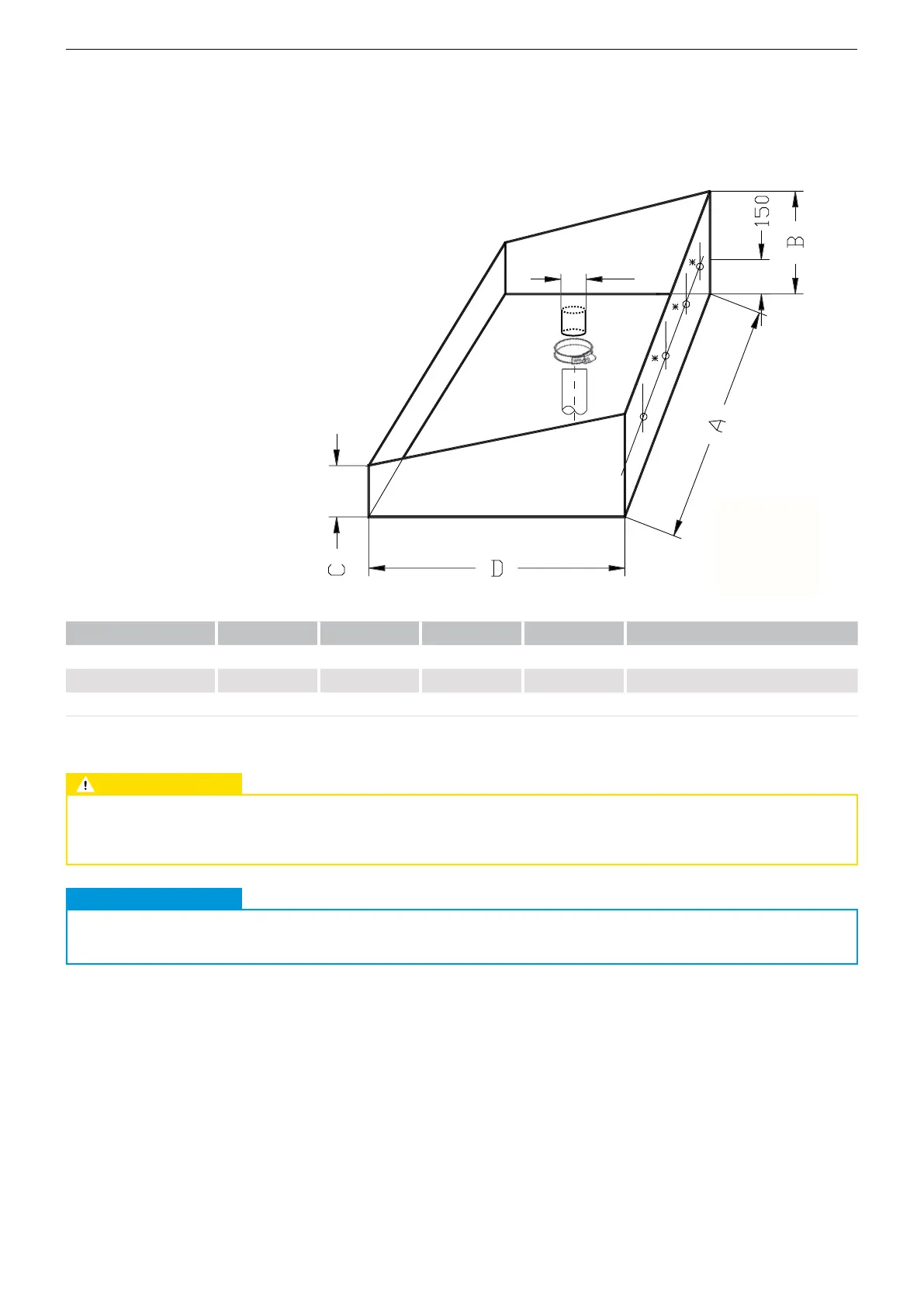

7.3.2. Safety tray dimensions
Ø
25
Type A B C D Number of drill holes E
BNB 1000A/2000A 550 200 50 320 4
BNB 3000A/4000A 770 200 50 320 6
BNB 5000A/8000A 1210 200 50 320 8
CAUTION
Permitted number of humidi ers.
Nomorethanonehumidiermaybeinstalledinonesafetytray!
Note
Material:
CrNi 18.8, 1.5 mm
All dimensions in mm.
CAUTION
Maximum load-bearing capacity.
The safety tray has a maximum load-bearing capacity of 35 kg, which must not be exceeded under
any circumstances!
