Installation   STULZUltraSonic-SystemforDirectRoomHumidicationBNB-

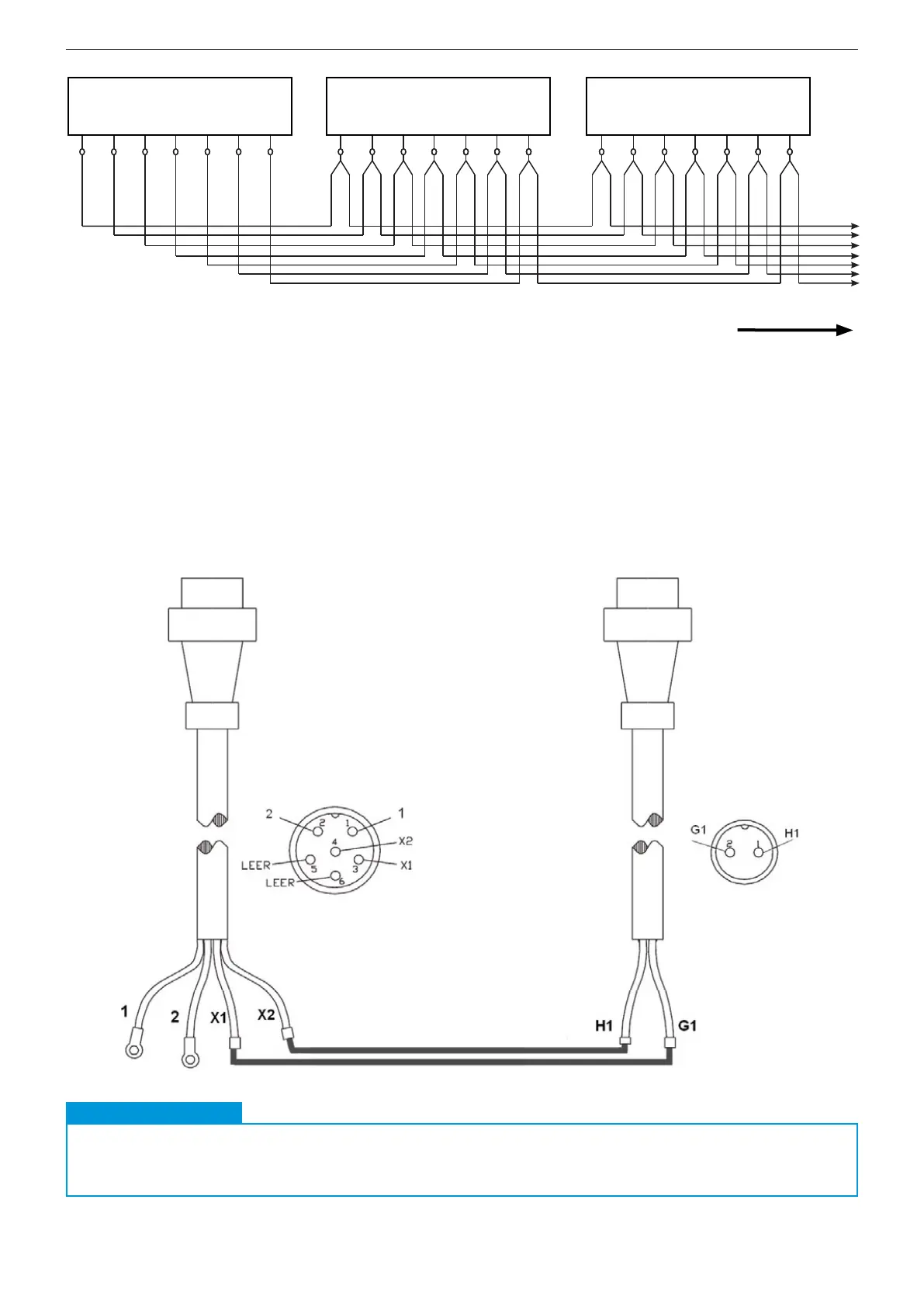

7.5.1.2. Connection of humidi er ON/OFF control module
To other USS SLAVE control cabinets
USS 503 / 1303
Stulz Ultrasonic Master/Slave Steuergeräte (USM/USS)
© Stulz GmbH Hamburg
14
PPM+
12 13 14 15 16 17 18 12 13 14 15 16 17 18 12 13 14 15 16 17 18
PPM-
24V DC-
24V DC+
Ventil AUF
FREIGABE Befeuchtung
GND
PPM+
PPM-
24V DC-
24V DC+
Ventil AUF
FREIGABE Befeuchtung
GND
USM MASTER
Schaltschrank
USM 503 / 1303
USS SLAVE
Schaltschrank
USS 503 / 1303
USS SLAVE
Schaltschrank
USS 503 / 1303
Zu weiteren
USS SLAVE
Schaltschränken
USS 503 / 1303
2.7 Verbindungsleitungen zwischen Master und Slave(s)
USM master control cabinet
USM 503 / 1303
USS SLAVE control cabinet
USM 503 / 1303
USS SLAVE control cabinet
USM 503 / 1303
Connection cable for ON/OFF control module BNB 1000 / 2000 / 3000 A
ForconnectionoftheON/OFFcontrolmodule,thefollowingconnectingcablecontactsarejumpered:
X1 jumpered to G1
X2 jumpered to H1
Contacts 1 and 2 are connected to the ON/OFF control module.
CAUTION
TVS diodes for protecting the transducers.
To protect the transducers, when wiring the control system connect the TVS diodes supplied with the
ON/OFF control module parallel to the Nebulizer print plates.
NOTICE
6-way connector
2-way connector
View from soldered side
View from soldered side
