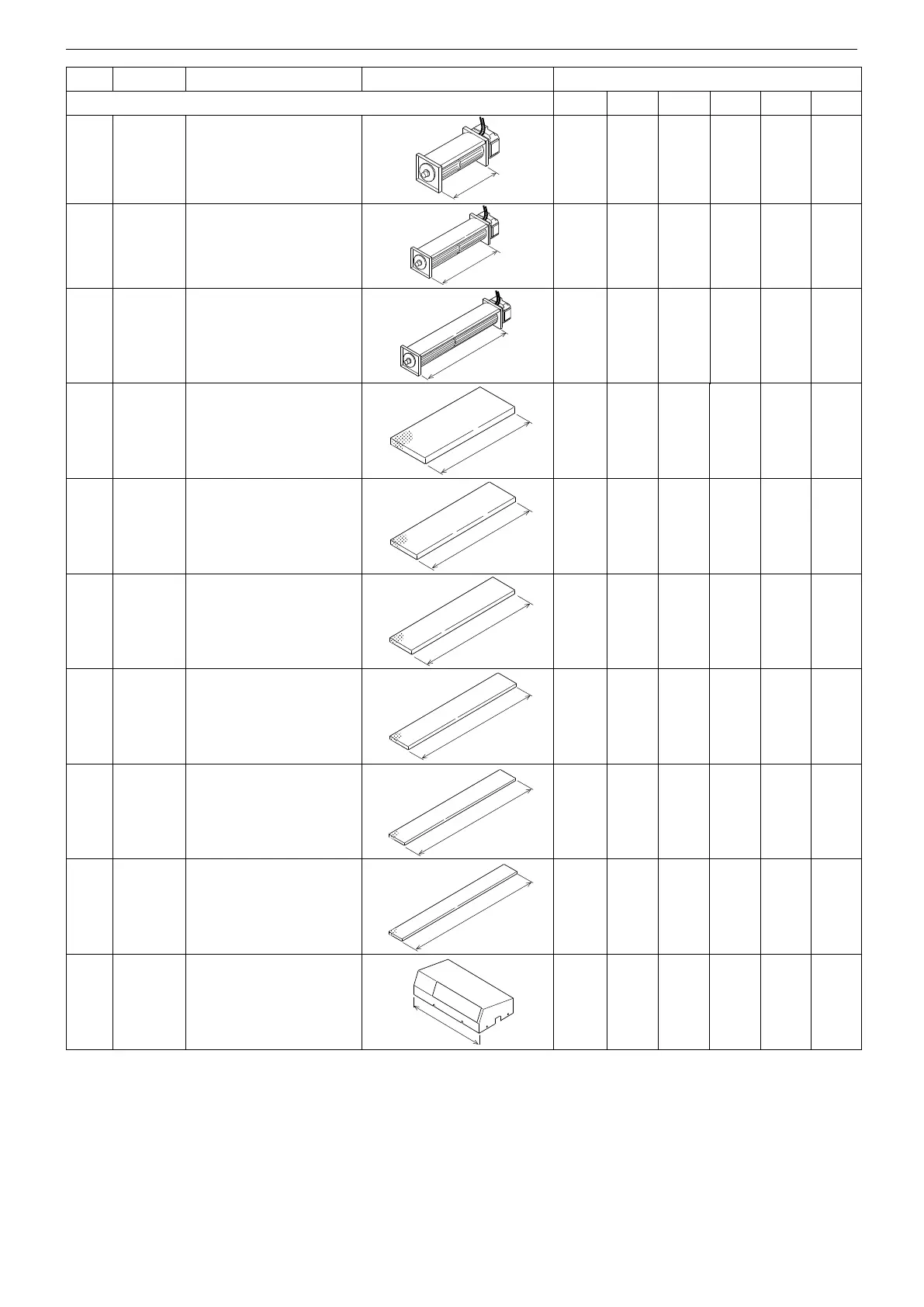

STULZUltraSonic-SystemforDirectRoomHumidicationBNB-  Sparepartslists
Item Item no. Designation Illustration No. of BNBs
1000A 2000A 3000A 4000A 5000A 8000A
23 M01331 Fan FL-06012
incl. motor
1 --- --- 1 --- ---
24 M01332 Fan FL-06018
incl. motor
--- 1 --- 1 1 1
25 M01334 Fan FL-06024
incl. motor
--- --- 1 --- 1 2
26 M10890 Fan bearing 1 1 1 2 2 3
27 M01319 Airlter
100x10x196
1 --- --- --- --- ---
28 M01324 Airlter
100x10x306
--- 1 --- --- --- ---
29 M01325 Airlter
100x10x416
--- --- 1 --- --- ---
30 M01326 Airlter
100x10x526
--- --- --- 1 --- ---
31 M01327 Airlter
100x10x636
--- --- --- --- 1 ---
32 M01328 Airlter
100x10x966
--- --- --- --- --- 1
33 1220559 Upper part of housing --- --- 1 --- --- ---
123
184
245
196
306
416
526
636
966
477
27 M01319 Airlter
100x10x196
1 --- --- --- --- ---
28 M01324 Airlter
100x10x306
--- 1 --- --- --- ---
29 M01325 Airlter
100x10x416
--- --- 1 --- --- ---
30 M01326 Airlter
100x10x526
--- --- --- 1 --- ---
31 M01327 Airlter
100x10x636
--- --- --- --- 1 ---
32 M01328 Airlter
100x10x966
--- --- --- --- --- 1
33 1220559 Top cover --- --- 1 --- --- ---
196
306
416
526
636
966
477
