Stulz ENS 18 A - Page 72

DE / 06-2016 / 1000687 © STULZ GmbH, Hamburg
-
68
-
Operation STULZ UltraSonic -System for duct humidication ENS 14 A - 18 A-
2

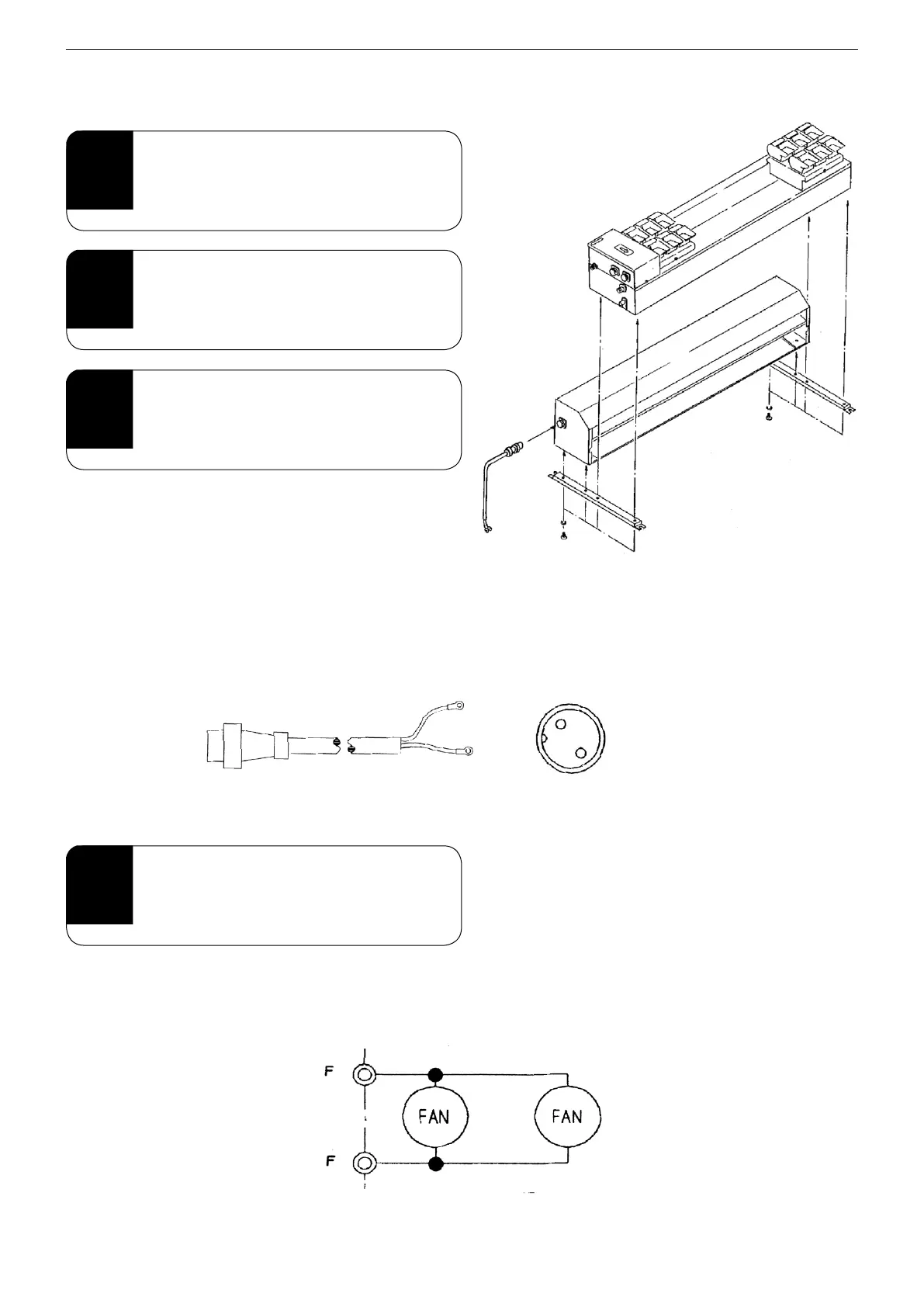

Mount the ENS humidier on the supplied
brackets of the booster fan.
3
Mount the booster fan on the supplied
brackets behind the humidier.
4
Insert the supplied cable (48V AC) with
connector in the booster fan connection
and screw tight.
1
Remove the feet of the ENS humidier.
Installation
Proceed as follows to install the booster fan:
Electrical wiring
The electrical connection of the booster fan comprises a connector with two ring terminals (48 VAC).
Insert the 2-meter long pre-assembled cables with connectors into the sockets in the units intended for
this purpose, and screw tight.
Proceed as follows to electrically wire the booster fan:
View of soldered side
Internal wiring
