Stulz ENS 18 A - Cleaning the Water Tank, Oscillators and Mist Outlets

© STULZ GmbH, Hamburg DE / 06-2016 / 1000687
-
75
-
STULZ UltraSonic -System for duct humidication ENS 14 A - 18 A- Maintenance
3
Slacken the two stainless steel screws
in the housing cover of the electronic
supply module.
Take off the housing cover.
4
Fully unscrew the four stainless steel
screws in the housing of the electronic
supply module.
Remove the housing.
2
Slacken the Phillips screws and remove
the mist outlets.
1
Perform steps 1-6 from section "11.5.
Inspecting the electrical system" on
page 78.

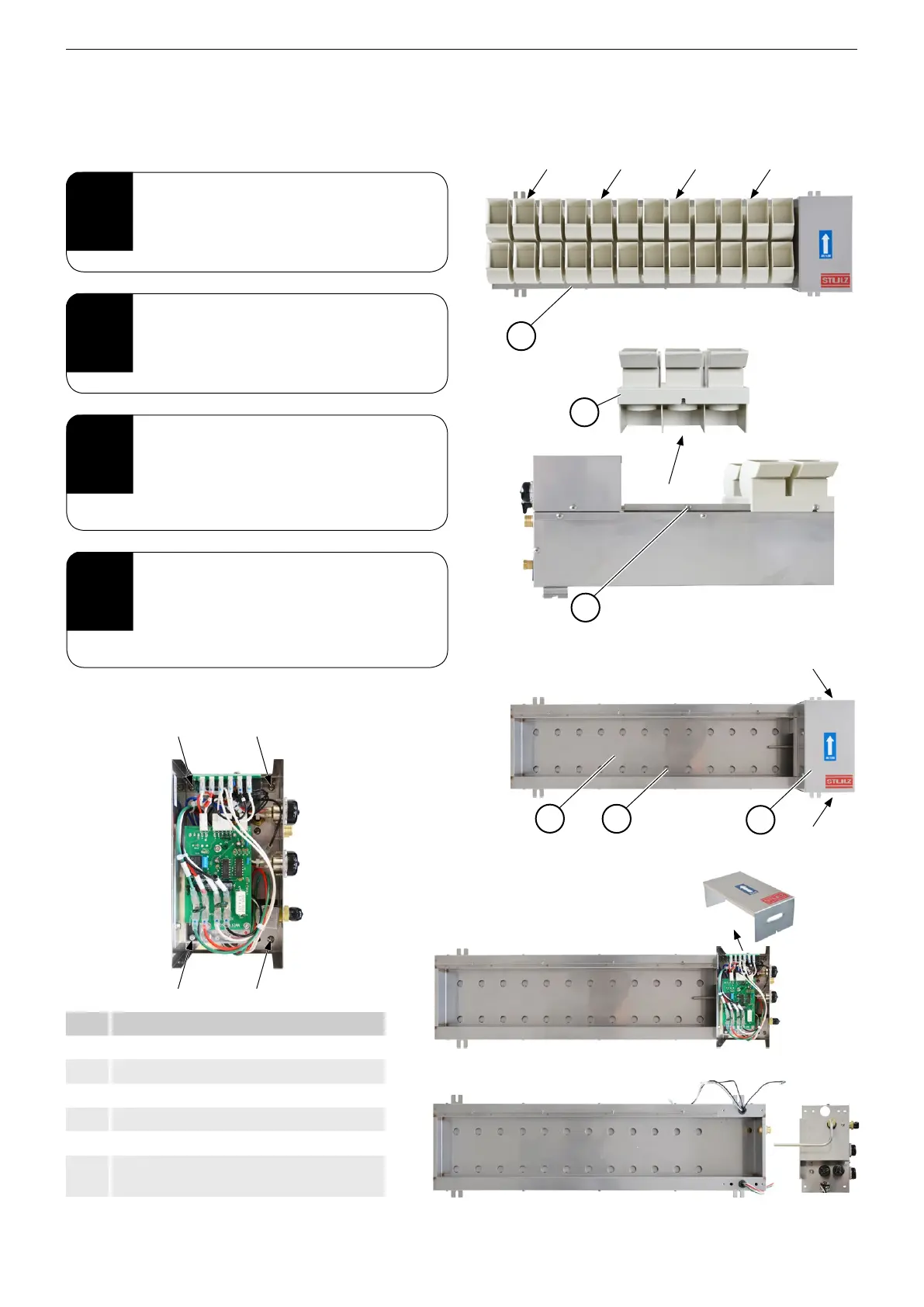

11.4.2. Cleaning the water tank, oscillators and mist outlets
Proceed as follows to clean the water tank, oscillators and mist outlets:
Slacken but do not fully remove the screws.
Item Description
1 Ultrasonic humidier
2 Screw
3 Mist outlet
4 Water tank
5 Oscillator
6
Housing cover of electronic supply
module
2
4
5
6
1
3
Slacken but do not fully remove the screws.
Slacken and fully remove the screws.
