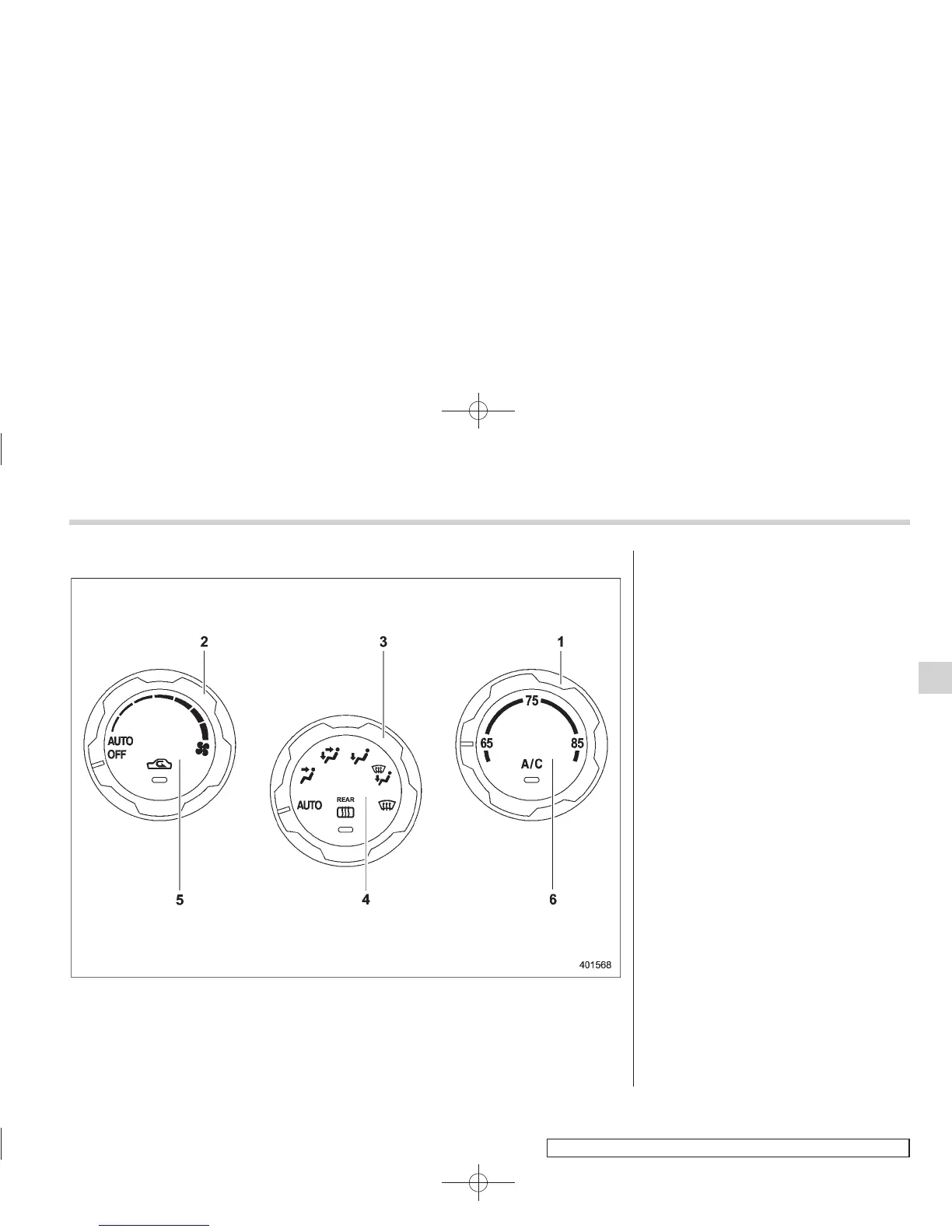

1) Temperature control dial (Refer to “Tem-
perature control” F4-9.)
2) Fan speed control dial (Refer to “Auto-
matic climate control system (type B and
C)” F4-6 and “Fan speed control” F4-9.)
3) Airflow control dial (Refer to “Automatic
climate control system (type B and C)”
F4-6, “Airflow mode selection” F4-8 and
“Defrosting” F4-10.)
4) Control switch of the defogger and deicer
system (Refer to “Defogger and deicer”
F3-45.)
5) Air inlet selection button (Refer to “ Air
inlet selection” F4-9.)
6) Air conditioner button (Refer to “Air
conditioner control” F4-9.)
NOTE
The controllable temperature range
may differ depending on the model.
