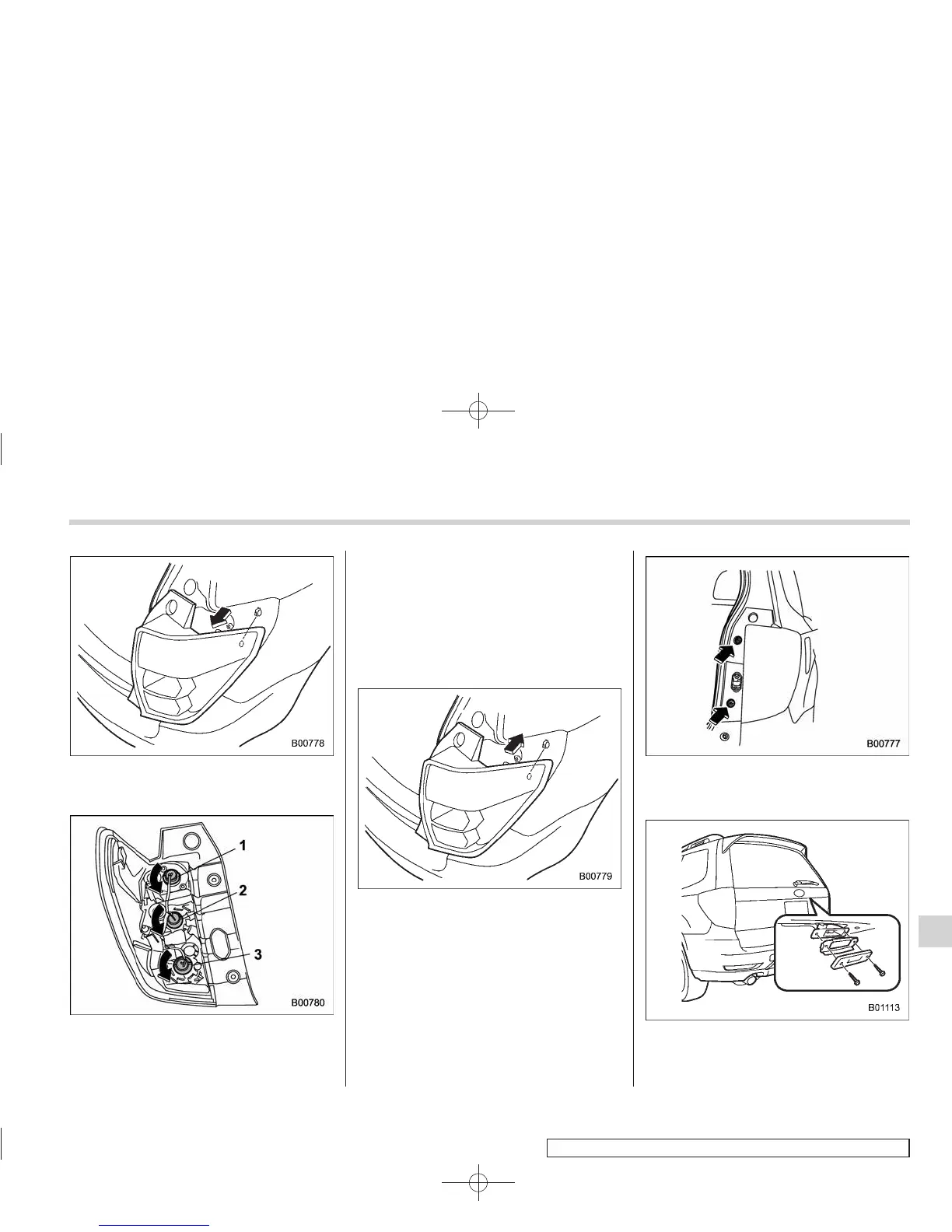

2. Slide the rear combination light as-
sembly rearward and remove it from the
vehicle.
1) Brake/tail light
2) Rear turn signal light
3) Back-up light
3. Remove the bulb socket from the rear
combination light assembly by turning it
counterclockwise.
4. Pull the bulb out of the bulb socket and
replace it with a new one.
5. Set the bulb socket into the rear
combination light assembly and turn it
clockwise until it locks.
6. Put the rear combination light assem-
bly into place while aligning the clip with
the guide on the vehicle.
7. Tighten the upper and lower screws.
& License plate light
1. Remove the mounting screws using a
Phillips screwdriver.
