11-16 Maintenance and service

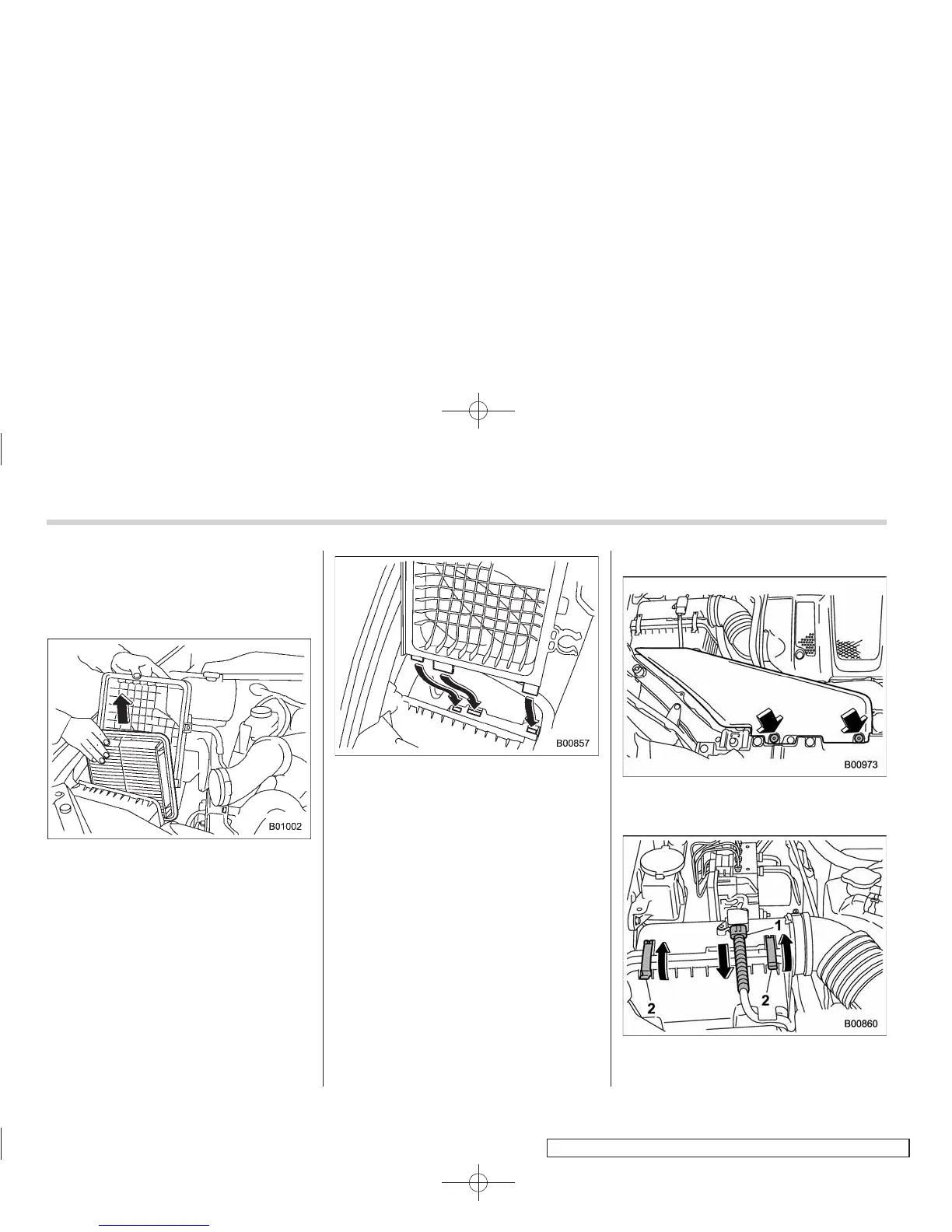

3. Loosen the screw of the clamp and
pull the air intake boot out of the air
cleaner case.
4. Unsnap the two clips and open the air
cleaner case.
5. Remove the air cleaner element.
6. Clean the inside of the air cleaner case
with a damp cloth and install a new air
cleaner element.
7. If the rear air cleaner case has been
removed, insert the three projections on
the rear air cleaner case into the slits on
the front air cleaner case.
8. Install the removed parts in the reverse
order of removal.
! Turbo models
1. Use a screwdriver to undo the clips on
the air intake duct, then remove the air
intake duct.
1) Connector
2) Clip
