CheckPoint Pharma and CheckPoint
e
Operation and Maintenance Manual
SUEZ © 2018 47 of 112 DLM 97200-03 EN Rev. A

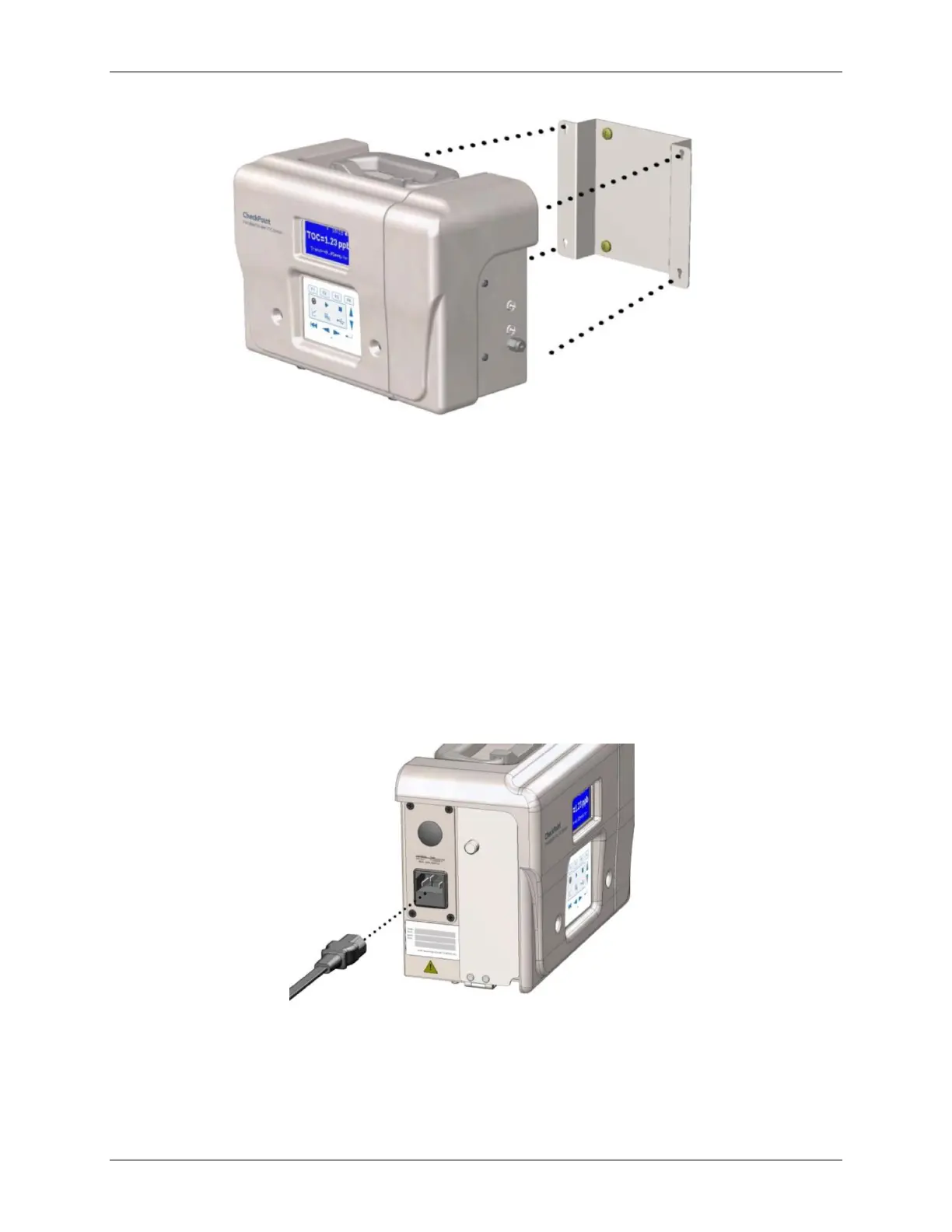

Figure 2: Mounting the Sensor on the Bracket
Step 2: Install the Power Option
The CheckPoint Sensor can be powered using the included power cable or by installing power
conduit.
Using the Sensor with a Power Cord
If you will be using the CheckPoint with a power cord, attach one end of the power cord to the Sensor
and the other end to a grounded power source. Make sure the cord is seated securely at both ends.
Figure 3: Installing the Power Cord
