Table 10-7: Oil Seals
Table 10-6: Intermediate Shaft Bearing
Frame
Size
Intermediate Shaft
Frame
Size
Intermediate Shaft
Bearing F
Part
#5-02
Bearing G
Part
#5-03
Eccentric
Bearing
Part
#5-04
Qty.
Bearing F
Part
#5-02
Bearing G
Part
#5-03
Eccentric
Bearing
Part
#5-04
Qty.
6060DA, 6065DA 6301 6909 607YXX 1 6180DA, 6185DA 6407 6208 618YSX 2
6070DA, 6075DA 6301 6909 607YXX 1 6180DB, 6185DB 6407 6213 618YSX 2
6090DA, 6095DA 6302RSH2 6007
Refer to
Table 10-5
1
6190DA, 6195DA 6408 6210 619YSX 2
6100DA, 6105DA 6302RSH2 6007 6190DB, 6195DB 6408 6213 619YSX 2
6120DA, 6125DA 6304 6007 6205DA NJ310EV9 6210 620GXX 2
6120DB, 6125DB 6304 6205 6205DB NJ310EV9 6310 620GXX 2
6130DA, 6135DA 6305 6007 6215DA, 6215DB NJ311EV23 6311 621GXX 2
6130DB, 6135DB 6305 6206 6225DA, 6225DB NJ312EV14 6313 622GXX 2
6130DC, 6135DC 6305 6206 6235DA, 6235DB NJ313EV16 6314 623GXX 2
6140DA, 6145DA 6305 6007 6245DA NJ314EV9 6315 624GXX 2
6140DB, 6145DB 6305 6206 6245DB NJ314EV9 6316 624GXX 2
6140DC, 6145DC 6305 6206 6255DA, 6255DB NJ316EV3 6318 625GXX 2
6160DA, 6165DA
6307R 6207
6265DA NJ317EV2 6320 626GXX 2
6160DB, 6165DB 6275DA NJ417 22220RH 627GXX 2
6160DC, 6165DC 6307R 6208
6170DA, 6175DA
6406 6207 617YSX 2
6170DB, 6175DB
6170DC, 6175DC 6406 6208 617YSX 2
Frame
Size
Slow Speed Shaft (Part #3) High Speed Shaft (Part #25)
Type
[1]
Dimension (mm) Quantity
Type
[1]
Dimension (mm)
Quantity
(I.D. x O.D. x W)
Horizontal
Shaft
Vertical
Shaft
(I.D. x O.D. x W)
6060, 6065 D 30 x 47 x 8 1 1 S 17 x 30 x 6 1
6070, 6075 D 30 x 47 x 8 1 1 S 17 x 30 x 6 1
6080, 6085 D 45 x 62 x 9 1 1 S 17 x 30 x 6 1
6090, 6095 D 50 x 72 x 12 1 1 S 20 x 35 x 7 1
6100, 6105 D 50 x 72 x 12 1 1 S 20 x 35 x 7 1
6110, 6115 D 55 x 80 x 12 1 1 S 20 x 35 x 7 1
6120, 6125 D 65 x 90 x 13 1 1 D 32 x 52 x 8 1
6130, 6135 D 68 x 88 x 12 1 2 D 38 x 58 x 11 1
6140, 6145 D 65 x 88 x 12 1 2 D 38 x 58 x 11 1
6160, 6165 D 85 x 110 x 13 1 2 D 55 x 78 x 12 1
6170, 6175 D 95 x 130 x 15 1 2 D 60 x 82 x 12 1
6180, 6185 D 110 x 145 x 15 1 2 D 65 x 88 x 12 1
6190, 6195 D 120 x 155 x 16 1 2 S 70 x 88 x 10 1
6205 D 120 x 155 x 16 1 2 S 70 x 88 x 10 1
6215 D 130 x 160 x 14 1 2 S 75 x 100 x 13 1
6225 D 145 x 175 x 14 1 2 S 75 x 100 x 13 1
6235 D 160 x 190 x 16 1 2 S 85 x 110 x 13 1
6245 D 170 x 200 x 16 1 2 S 95 x 120 x 13 1
6255 D 190 x 225 x 16 1 2 S 110 x 140 x 14 1
6265 D 200 x 240 x 20 1 2 S 110 x 140 x 14 1
6275 D 230 x 270 x 20 1 2 S 120 x 150 x 14 1
Note [1]:
S indicates single lip seal.
D indicates double lip seal.

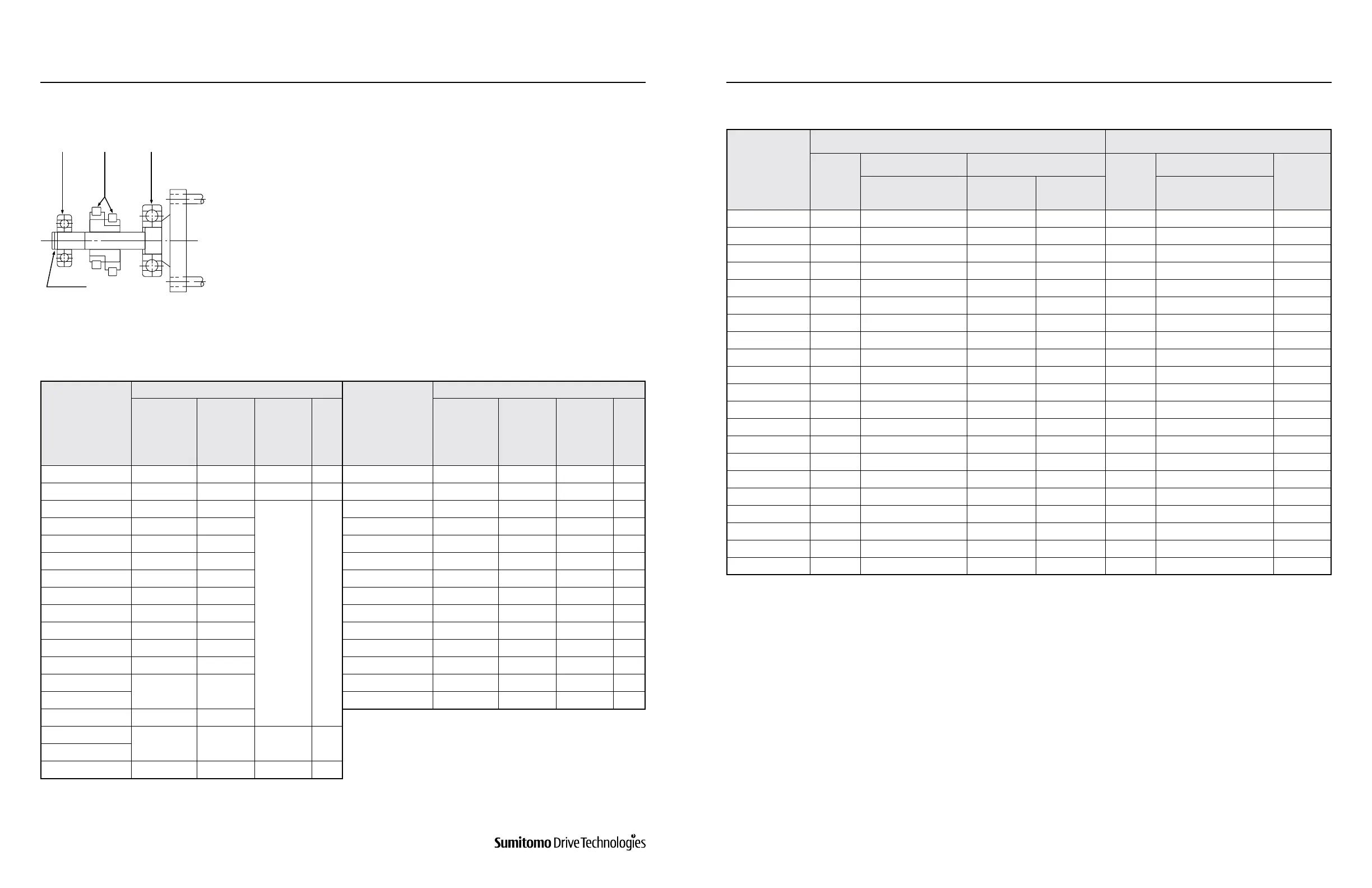

Figure 10-16: Intermediate Shaft
Retaining Ring
(For Double Reduction Units)
Intermediate Shaft
