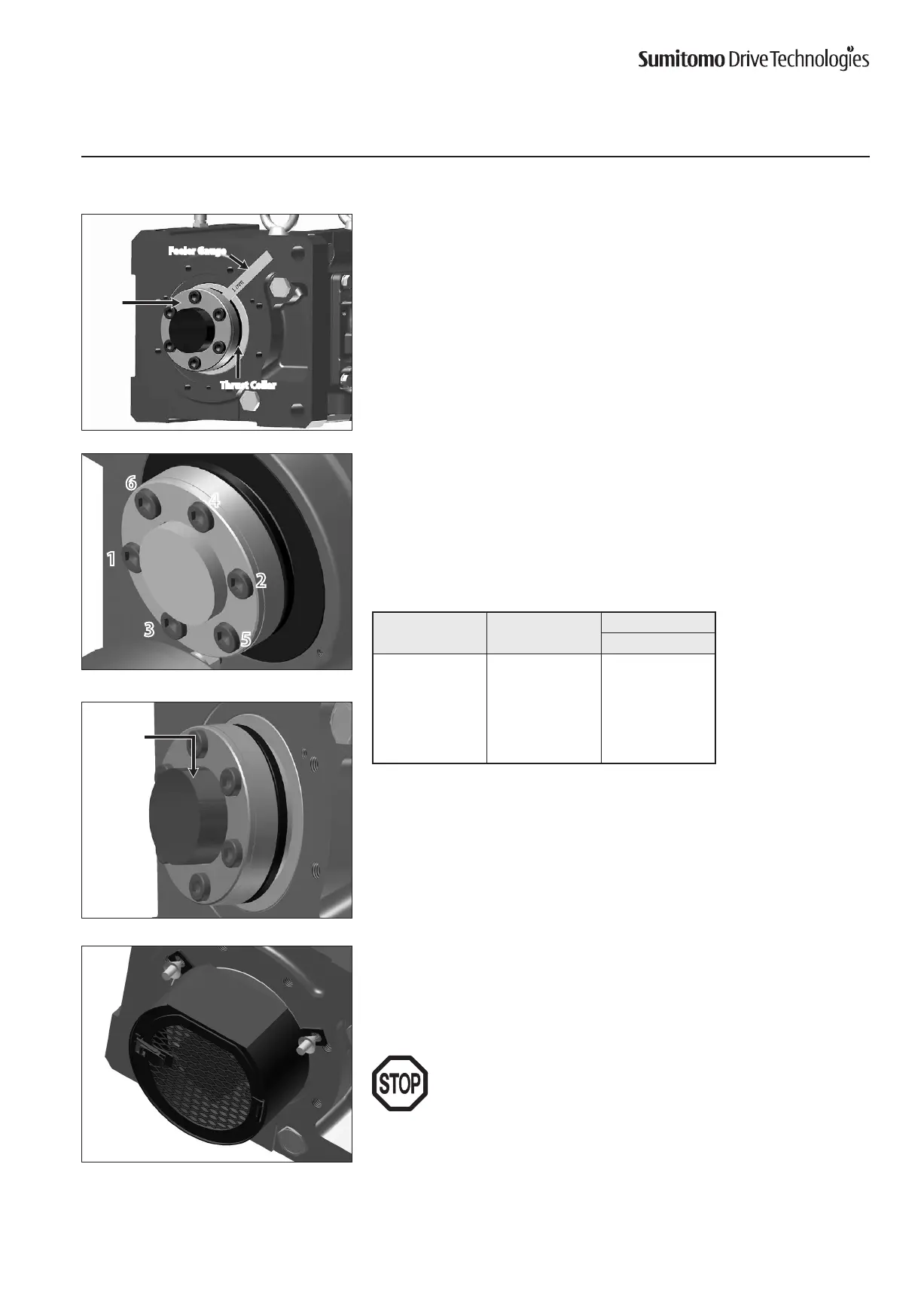

Manual BBB4_ENG_01_2016_991301 13
Installation onto Driven Shaft, continued
Taper-GripBushing
Bushing
Flange
FeelerGauge
Thrust Collar
1
6
4
2
5
3
Applygrease
to exposed
portion of
driven shaft.
10
Screw Bolts into Taper-Grip bushing.
• Lightlyoilthreadsofeachboltbeforeinserting.
• Fingertighteneachbolttosecureinplace.
• Besuretomaintain the 1 mm (approximate) gap between the thrust collar
and the bushingange.
11
Tighten bushing bolts to the correct torque value.
• Followingastarpattern,useatorquewrenchtograduallytighteneachsocket
head cap screw in 20% increments.
• RefertoTable2,Taper-GripBushingBoltTighteningTorques,forthecorrect
operational screw torques.
Table2.Taper-GripBushingBoltTighteningTorques
12
Inordertopreventcorrosion,applygrease to the exposed portion of the driven shaft.
 Afterinstallingandtighteningthebushingboltswithatorquewrench,apply
greaseorananti-corrosionproduct to the exposed portion of the shaft.
13
Forunitsthatincludeabushingsafetycover,reinstalltheguardoverthe
Taper-Grip bushing.
Do not operate unit until the torque arm has been attached to the unit and
fixed to a rigid structure. The torque arm prevents counter-rotation during
unit operation. Refer to torque arm Installation section in this manual for
instructions.
BBB4 Size Screw Qty x Size
Screw Torque
N•m
4A 6 x M12 75
4B 6 x M12 140
4C 6 x M16 250
4D 6 x M16 300
4E 8 x M16 300
4F 10 x M16 300
