Sumitomo Bevel Buddybox 4 User Manual

44 Manual BBB4_ENG_01_2016_991301
Unit Size
Reduction Ratio (nominal) Cyclo Planetary Reduction Part Numbers
Overall
Cyclo
Planetary
Reduction
Block Set
(gears & bearings)
Planet
Gear
Ring Gear Sun Gear Needles Spacer Washer
Input
Carrier
Bevel Shaft
Pin Carrier
4A100
4A105
11 3:1 931SD610-003G AN8911G AN8303G AN8910G
- AW5434G - - BL515LG
13,14 4:1 931SD610-004G AN8870G AN8871G AN8869G
16,18 5:1 931SD610-005G AN8305G AN8306G AN8304G
4A120,4A125
4B120,4B125
11 3:1 931BB612-003G AP8712G CJ584LG AP8711G
AX2806G AX2543G AX2761G CJ244LG
CJ701LG (for 4A)
CJ703LG (for 4B)
13,14 4:1 931BB612-004G AP8706G CJ554LG AP8705G
16,18 5:1 931BB612-005G AP8714G CJ585LG AP8713G
4A140,4A145
4B140,4B145
4C140,4C145
11 3:1 931BB614-003G AP8717G CJ586LG AP8716G
AX2807G AX2763G AX2544G CJ588LG
CJ702LG (for 4A)
CJ704LG (for 4B)
CJ706LG (for 4C)
13,14 4:1 931BB614-004G AP8708G CJ555LG AP8707G
16,18 5:1 931BB614-005G AP8719G CJ587LG AP8718G
4B160,4B165
4C160,4C165
11 3:1 931BB616-003G AP8721G CJ589LG AP8720G
AX2808G AX2555G AX2554G CJ591LG
CJ705LG (for 4B)
CJ707LG (for 4C)
13,14 4:1 931BB616-004G AP8710G CJ556LG AP8709G
16,18 5:1 931BB616-005G AP8726G CJ590LG AP8722G
4C170,4C175
4D170,4D175
4E170,4E175
11 3:1 931BB617-003G AP9278G CJ993LG AP9277G
AX3077G AX3061G AX3060G CJ996LG
CJ938LG (for 4C)
CK009LG
(for4D,4E)
13,14 4:1 931BB617-004G AP9280G CJ994LG AP9279G
16,18 5:1 931BB617-005G AP9282G CJ995LG AP9281G
4D180,
4D185
4E180,4E185
4F180,4F185
11 3:1 931BB618-003G AP9285G
CJ997LG
AP9284G
AX3077G AX3061G AX3060G
CK001LG
CJ961LG
(for4D,4E)
CJ965LG (for 4F)
13,14 4:1 931BB618-004G AP9287G AP9286G CK002LG
CJ960LG
(for4D,4E)
CJ966LG (for 4F)
16,18 5:1 931BB618-005G AP9289G AP9288G CK003LG
CJ959LG
(for4D,4E)
CJ967LG (for 4F)
4E190,4E195
4F190,4F195
11 3:1 931BB619-003G AP9292G
CK004LG
AP9291G
AX3077G AX3061G AX3060G
CK007LG
CJ962LG (for 4E)
CJ968LG (for 4F)
13,14 4:1 931BB619-004G AP9294G AP9293G CK006LG
CJ963LG (for 4E)
CJ969LG (for 4F)
16,18 5:1 931BB619-005G AP9296G AP9295G CK008LG
CJ964LG (for 4E)
CJ970LG (for 4F)
Parts, continued

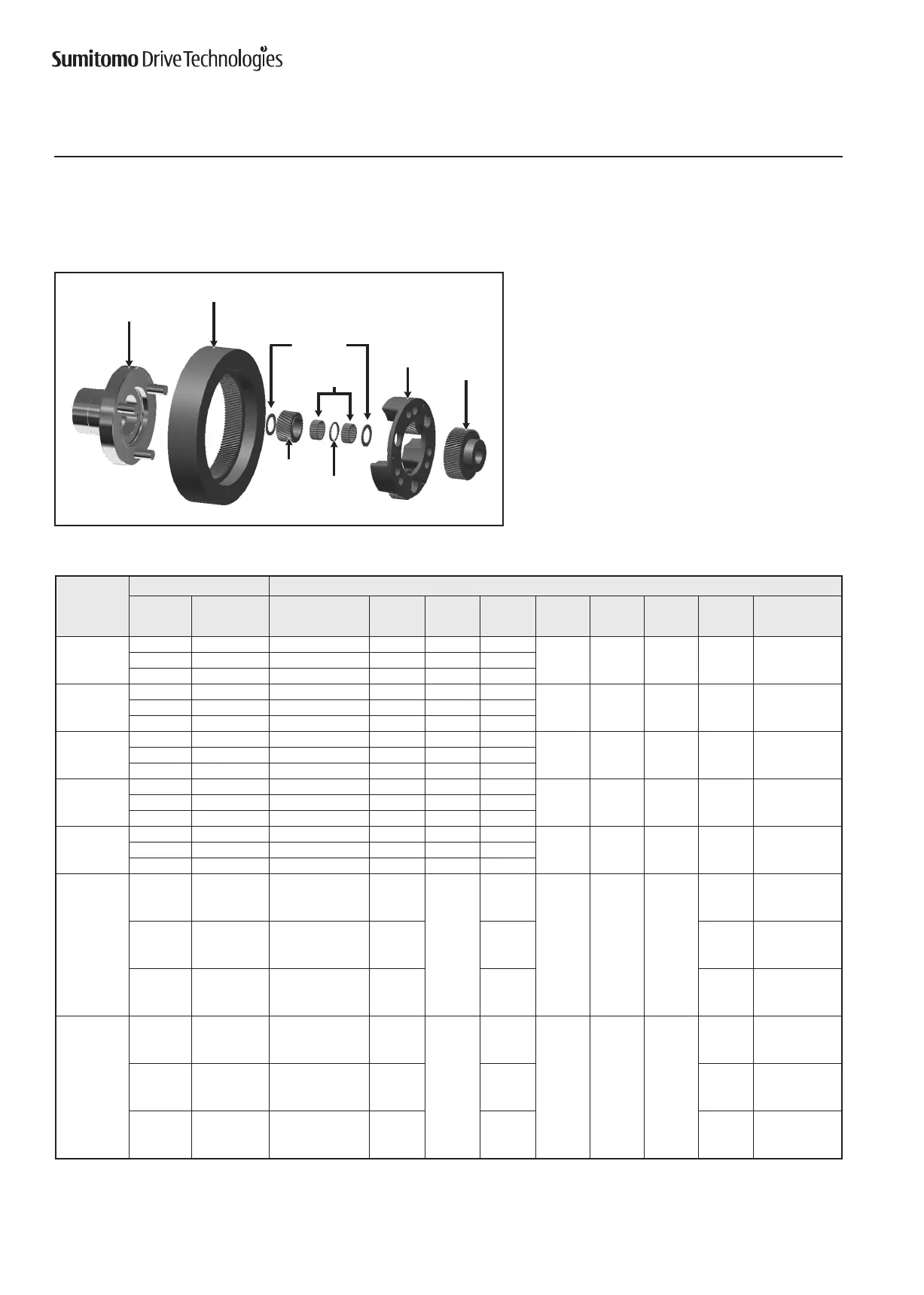

Cyclo Planetary Reduction Component Parts
Table36.CycloPlanetaryReductionComponentPartNumbers(Ratios11-18:1)
Note: [1] ConsultFactory[2]18:1ONLY
CycloPlanetaryReductionComponentParts(CycloRatios11-18:1)
Cyclo Planetary Reduction Component
RingGear(x1)
Sun Gear
(x1)
Washer(x6)
Needles
Input Carrier
Planet Gear
(x3)
Spacer
(x3)
Bevel Shaft Pin
Carrier(x1)
