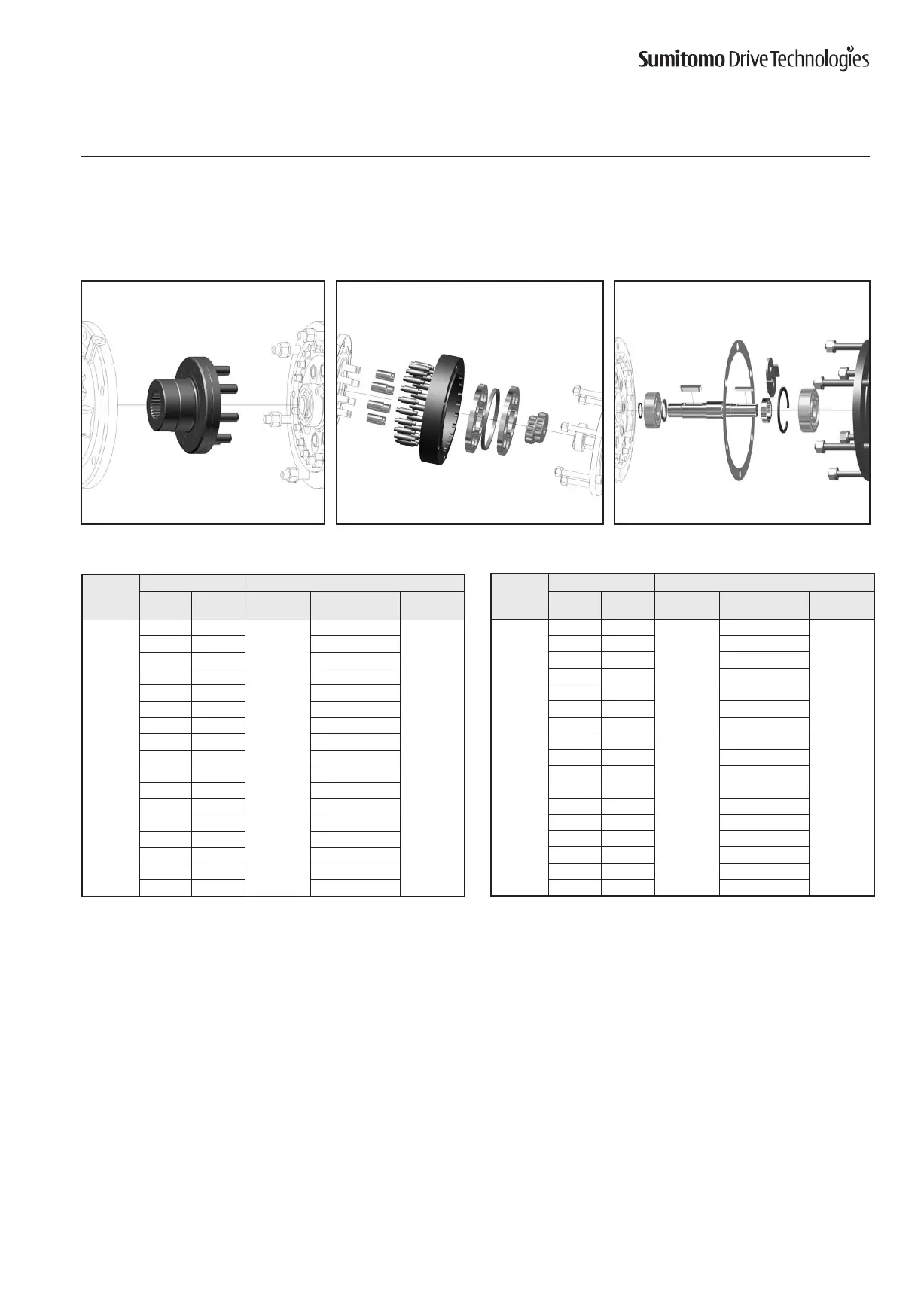

Parts, continued
Cyclo Reduction Component Parts
BBB4ReductionComponentPartNumbers(Ratios≥19:1)
BBB4 Reduction Components - 4A100 thru 4F195
Table37.BBB4ReductionComponentPartNumbers(Ratios≥19:1)
Unit Size
Reduction Ratio Part Numbers
Overall Cyclo Input Kit Reduction Kit
Bevel Pin
Carrier
4A100
4A105
19,21 6
930HY610-
EOLG
931SD610-006G
BL514LG
22,25 7
See Note
[1]
26,28 8 931SD610-008G
35,39 11 931SD610-011G
42,46 13 931SD610-013G
48,53 15 931SD610-015G
54,60 17 931SD610-017G
67,74 21 931SD610-021G
80,88 25 931SD610-025G
93,102 29 931SD610-029G
112,123 35 931SD610-035G
138,151 43 931SD610-043G
163,179 51 931SD610-051G
189,207 59 931SD610-059G
227,249 71 931SD610-071G
278,305 89 931SD610-087G
364,417 119 931SD610-119G
Unit Size
Reduction Ratio Part Numbers
Overall Cyclo Input Kit Reduction Kit
Bevel Pin
Carrier
4A110
4A115
19,21 6
930HY611-
EOLG
931SD611-006G
BL514LG
22,25 7
See Note
[1]
26,28 8 931SD611-008G
35,39 11 931SD611-011G
42,46 13 931SD611-013G
48,53 15 931SD611-015G
54,60 17 931SD611-017G
67,74 21 931SD611-021G
80,88 25 931SD611-025G
93,102 29 931SD611-029G
112,123 35 931SD611-035G
138,151 43 931SD611-043G
163,179 51 931SD611-051G
189,207 59 931SD611-059G
227,249 71 931SD611-071G
278,305 89 931SD611-087G
364,417 119 931SD611-119G
Bevel Pin Carrier Reduction Kit Input Kit
Note: [1] Consult Factory
