Chapter 1 Preparing to Service the System 23

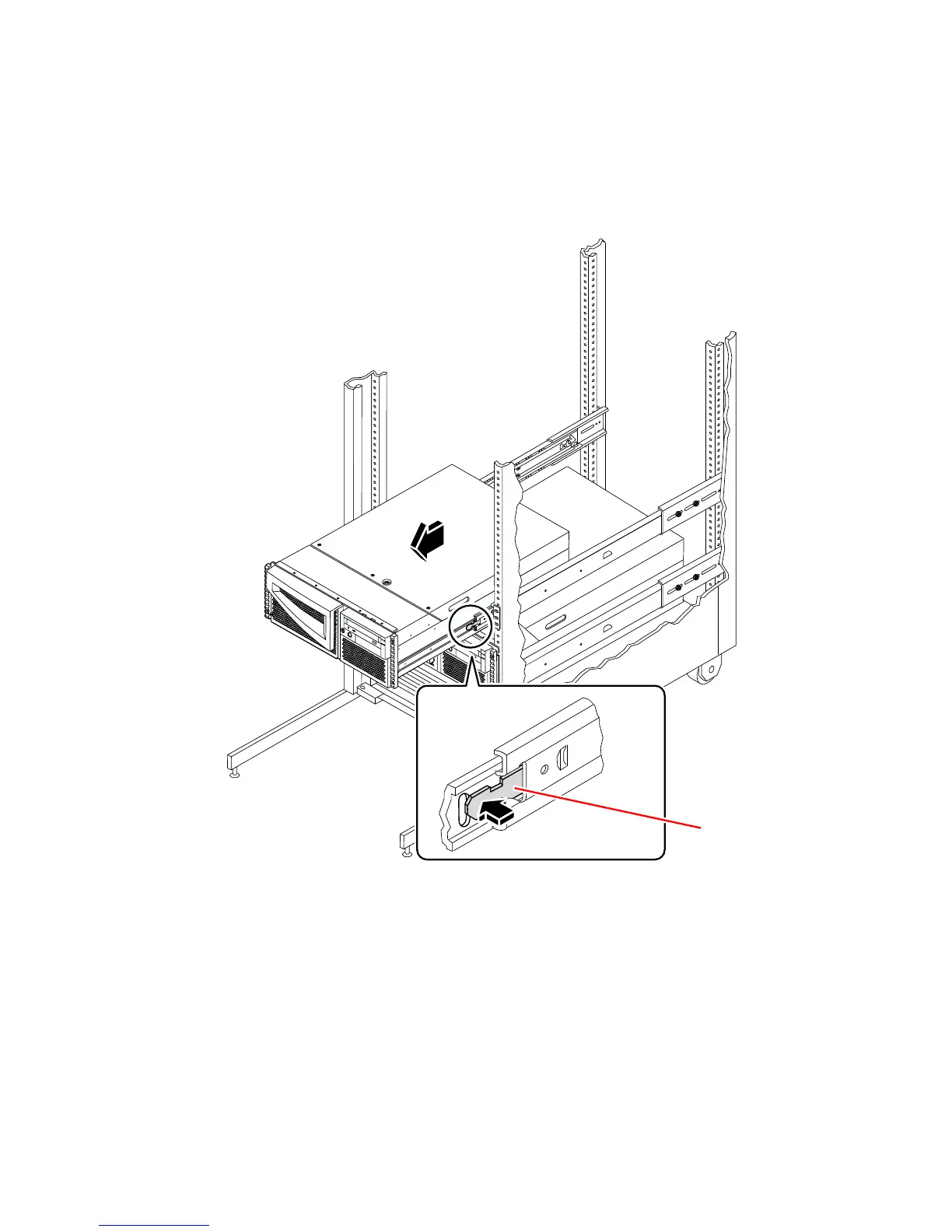

4. Locate the flat spring catch shown in the following figure.
Each person should visually locate one of the two flat spring catches that release the
system from the rack glide. One catch is attached to each inner glide, as shown in the
following figure.
5. Prepare to remove the system.
Each person should place one hand on the flat spring catch and their other hand
beneath the chassis, palm up, ready to support the weight of the chassis.
Spring catch
