Sun Microsystems Sun Fire V20z - Sun Fire V20 Z System Components

1-6 Sun Fire V20z and Sun Fire V40z Servers—User Guide • March 2005
1.2.3.2 Sun Fire V20z System Components
FIGURE 1-3
shows the locations of the components inside the Sun Fire V20z chassis.

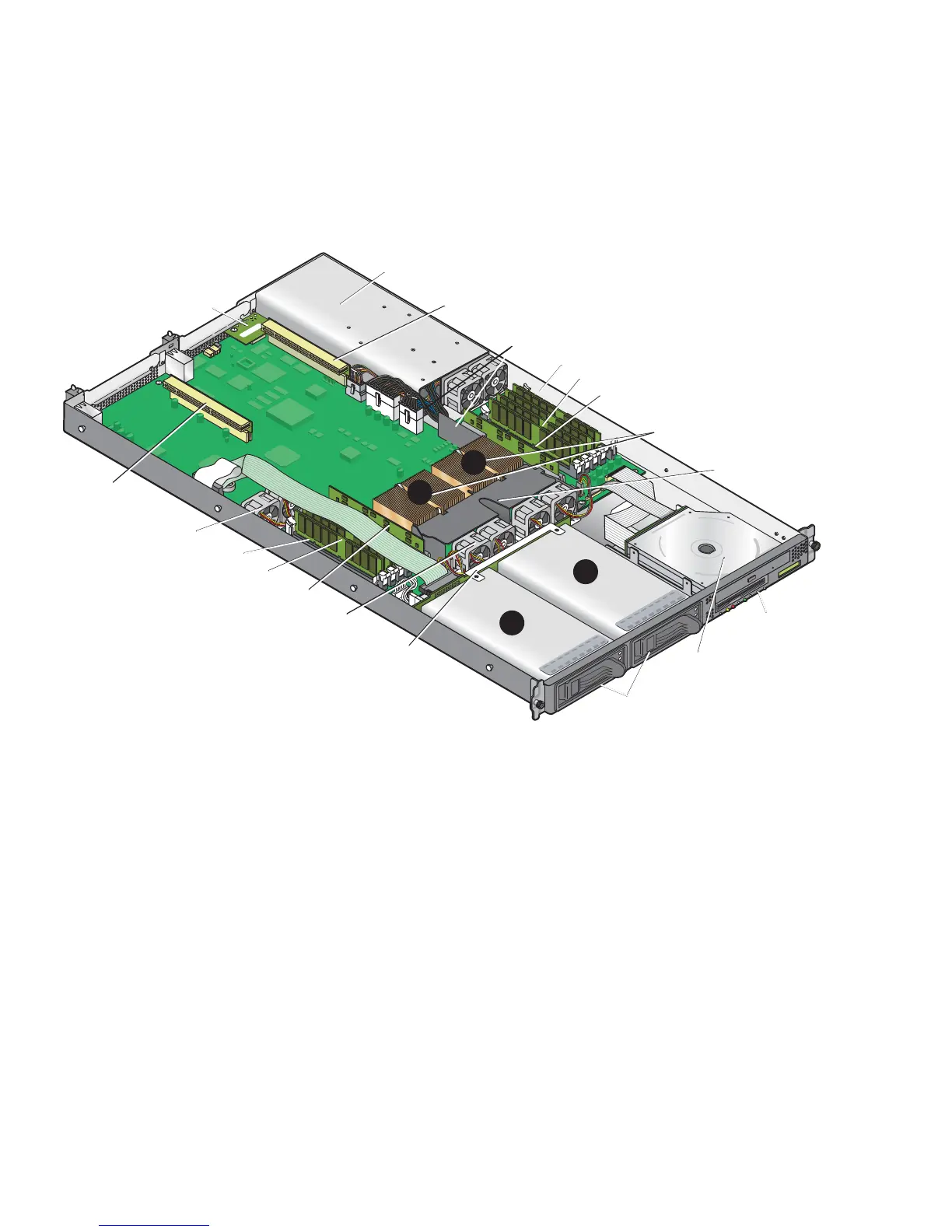

FIGURE 1-3
Location of System Components in the Sun Fire V20z Server
PCI Riser
(half length)
Fans (4)
CPUs and Heatsinks (2)
SCSI
Backplane
SCSI HDDs
with Carriers
CD/DVD-FD
Drive Module
Power
Supply
PCI Riser
(full length)
Fans (2)
HD bays (2)
I/O
Board
Operator
Panel and
LCD
Side Air
Baffle
Memory VRM
Memory Modules
Center
Air Baffle
Memory VRM
Memory Modules
CPU VRM
CPU VRM
1
0
1
0
