Chapter 4 Maintaining the Sun Fire V40z Server 4-3

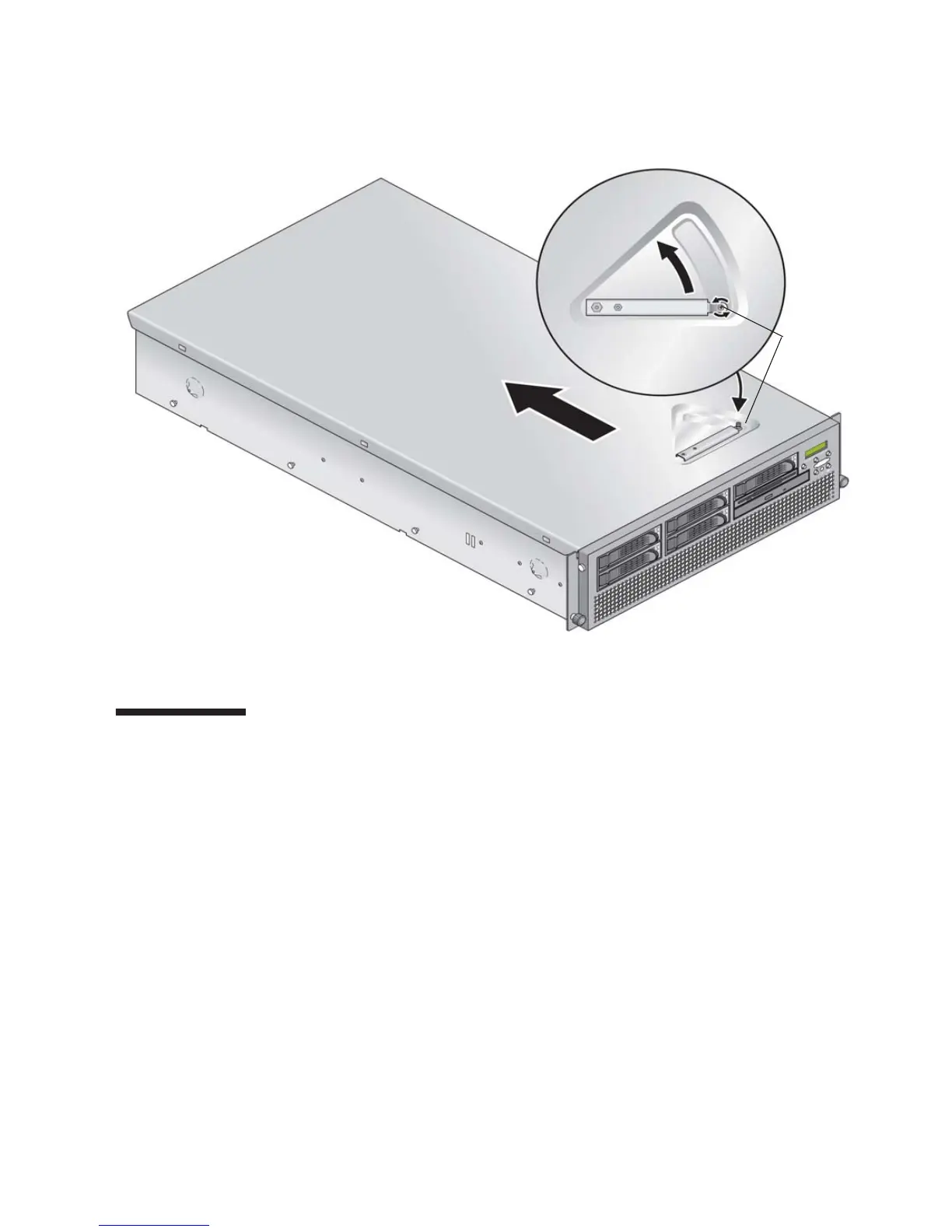

FIGURE 4-1
Removing the Cover of the Sun Fire V40z Server
4.3 Locations of Sun Fire V40z Components
Refer to
FIGURE 4-2
, which shows a top-down view of the server, to locate
components before performing the remove and replace procedures.
Captive
screw
