3.3 Locations of Sun Fire V20z Components
Refer to
FIGURE 3-2
to locate components before performing the remove and replace
procedures.
The following figure indicates the location of each of these components:

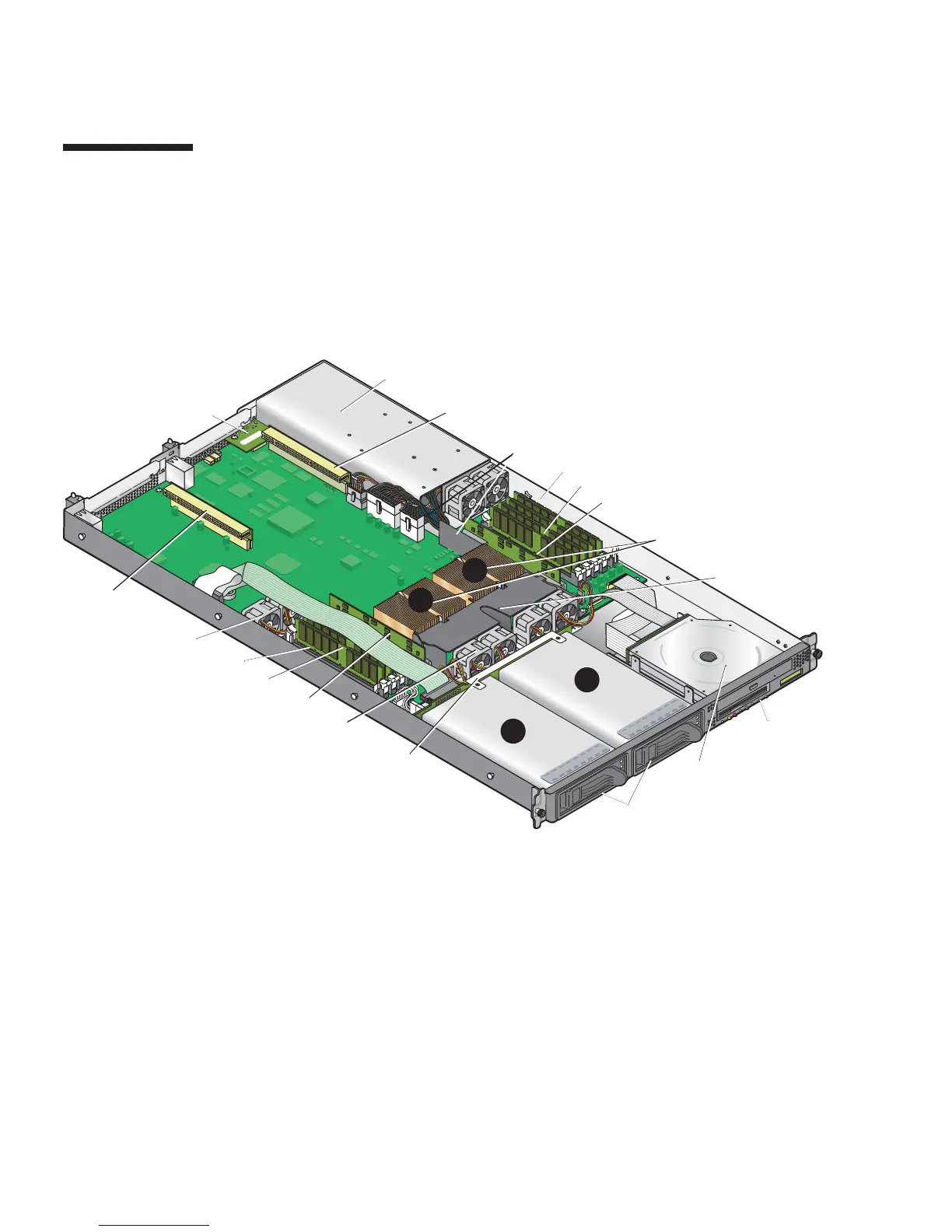

FIGURE 3-2
Locations of System Components in Sun Fire V20z Server, Top-Down View
PCI Riser
(half length)
Fans (4)
CPUs and Heatsinks (2)
SCSI
Backplane
SCSI HDDs
with Carriers
CD/DVD-FD
Drive Module
Power
Supply
PCI Riser
(full length)
Fans (2)
HD bays (2)
I/O
Board
Operator
Panel and
LCD
Side Air
Baffle
Memory VRM
Memory Modules
Center
Air Baffle
Memory VRM
Memory Modules
CPU VRM
CPU VRM
