Chapter 1 Introduction to the Sun Fire™ V20z and Sun Fire V40z Servers 1-11
1.3.3.2 Sun Fire V40z System Components
FIGURE 1-6
shows the locations of the components inside the Sun Fire V40z chassis.

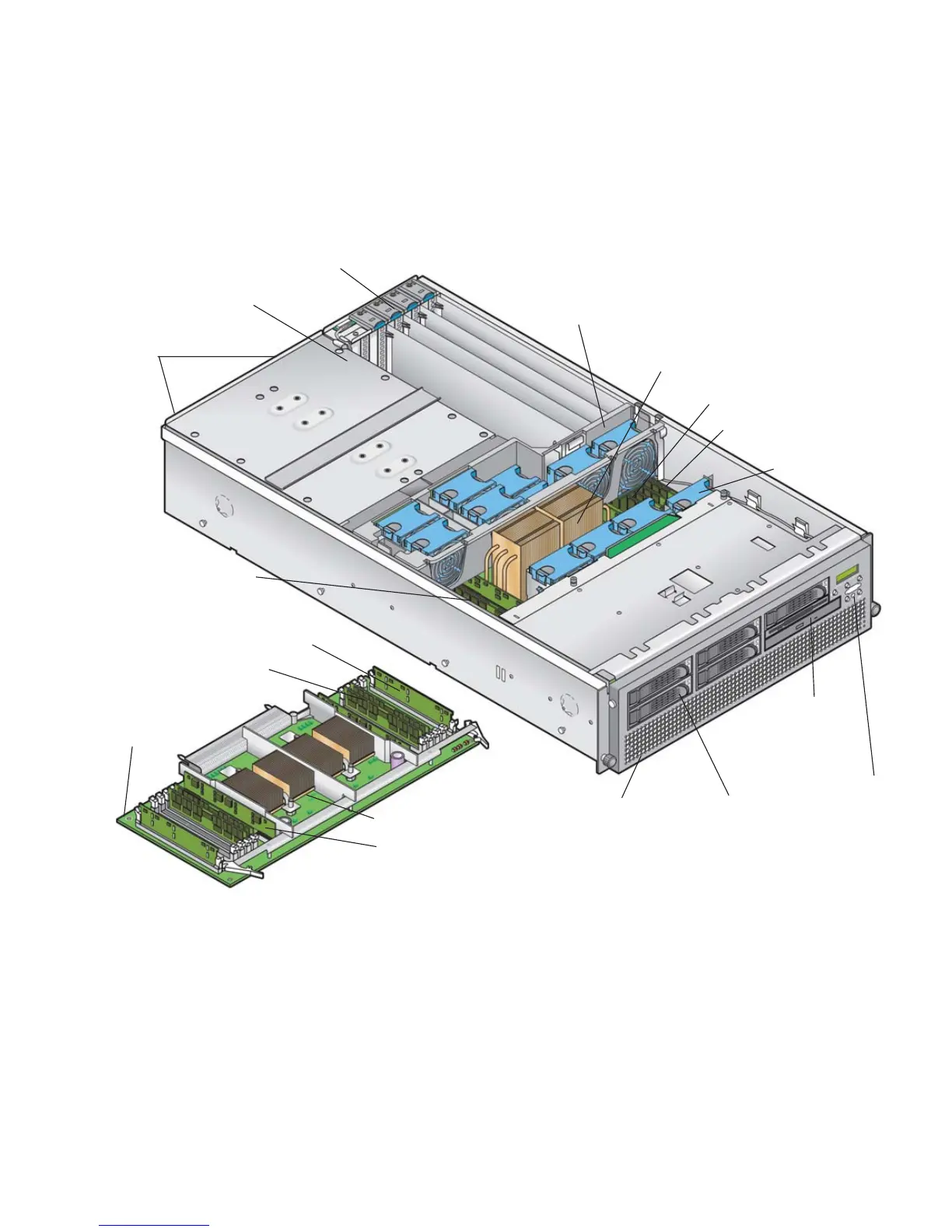

FIGURE 1-6
Sun Fire V40z System Components
Power-supply cage
Power
supplies (2)
Vertical PCI slots (6) (Horizontal PCI slot
under power-supply
cage not shown)
Rear fan cage
Front fan cage
CPUs with heatsinks
(2 on motherboard)
Memory module slots
(8 on motherboard)
Memory VRM
(2 on motherboard)
CPU VRM
(2 on motherboard)
Optional CPU card
(shown removed
Front bezel
DVD drive/
diskette drive
assembly
Hard disk drives
(5 shown, up to 6
with adapter)
Operator pane
l
CPUs with heatsinks
(2 on CPU card)
Memory module slots
(8 on CPU card)
Memory VRM
(2 on CPU card)
CPU VRM
(2 on CPU card)
from server)
