3-22 Sun Fire V20z and Sun Fire V40z Servers—User Guide • March 2005

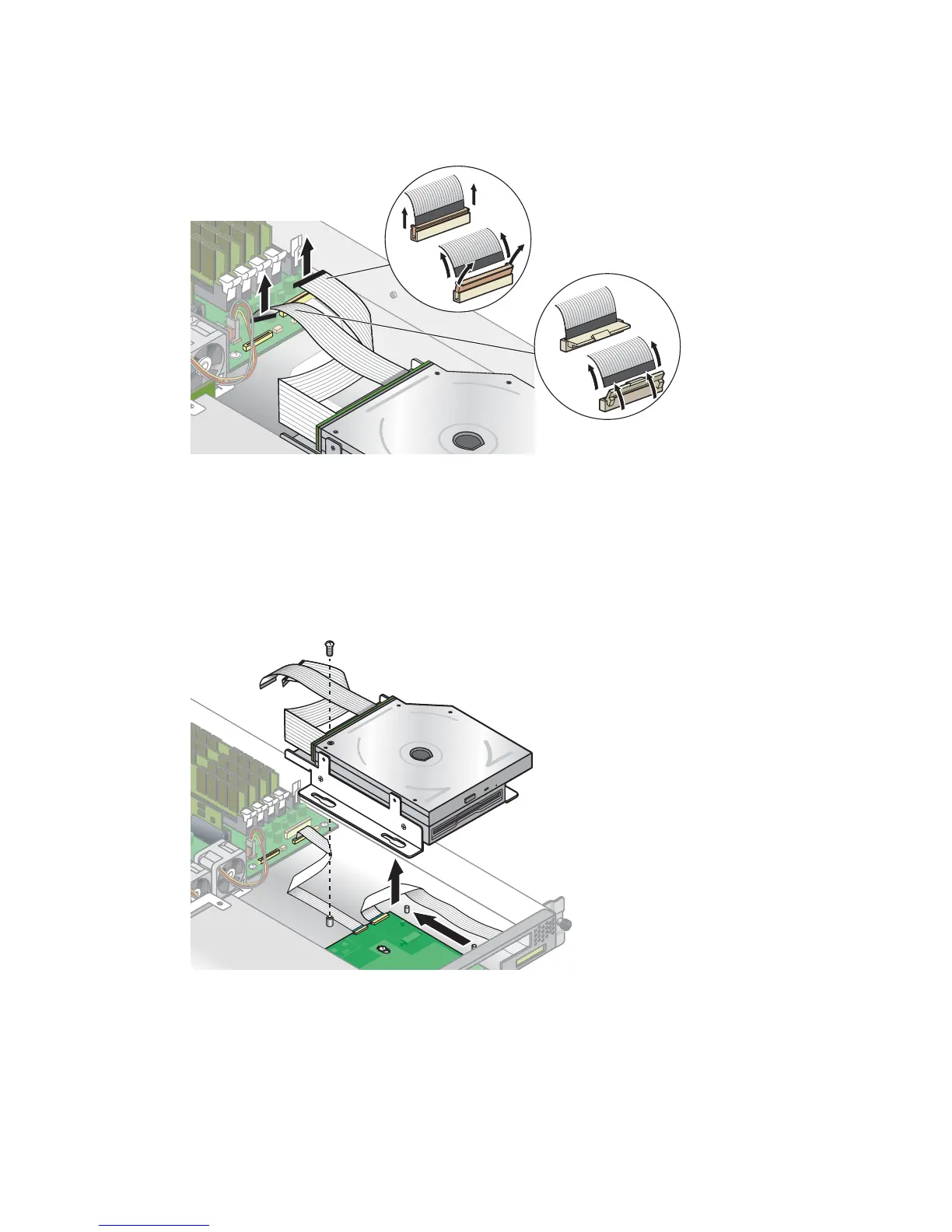

FIGURE 3-15 Uncabling the CD-ROM/DVD-ROM/Diskette Drive Assembly
3. Unfasten the single screw securing the CD-ROM/DVD/Diskette drive assembly to
the chassis (see
FIGURE 3-16).
4. Slide the assembly towards the rear of the chassis approximately 0.5” (12mm).
FIGURE 3-16 Removing the CD-ROM/DVD-ROM/Diskette Drive Assembly
