Chapter 3 Maintaining the Sun Fire V20z Server 3-27

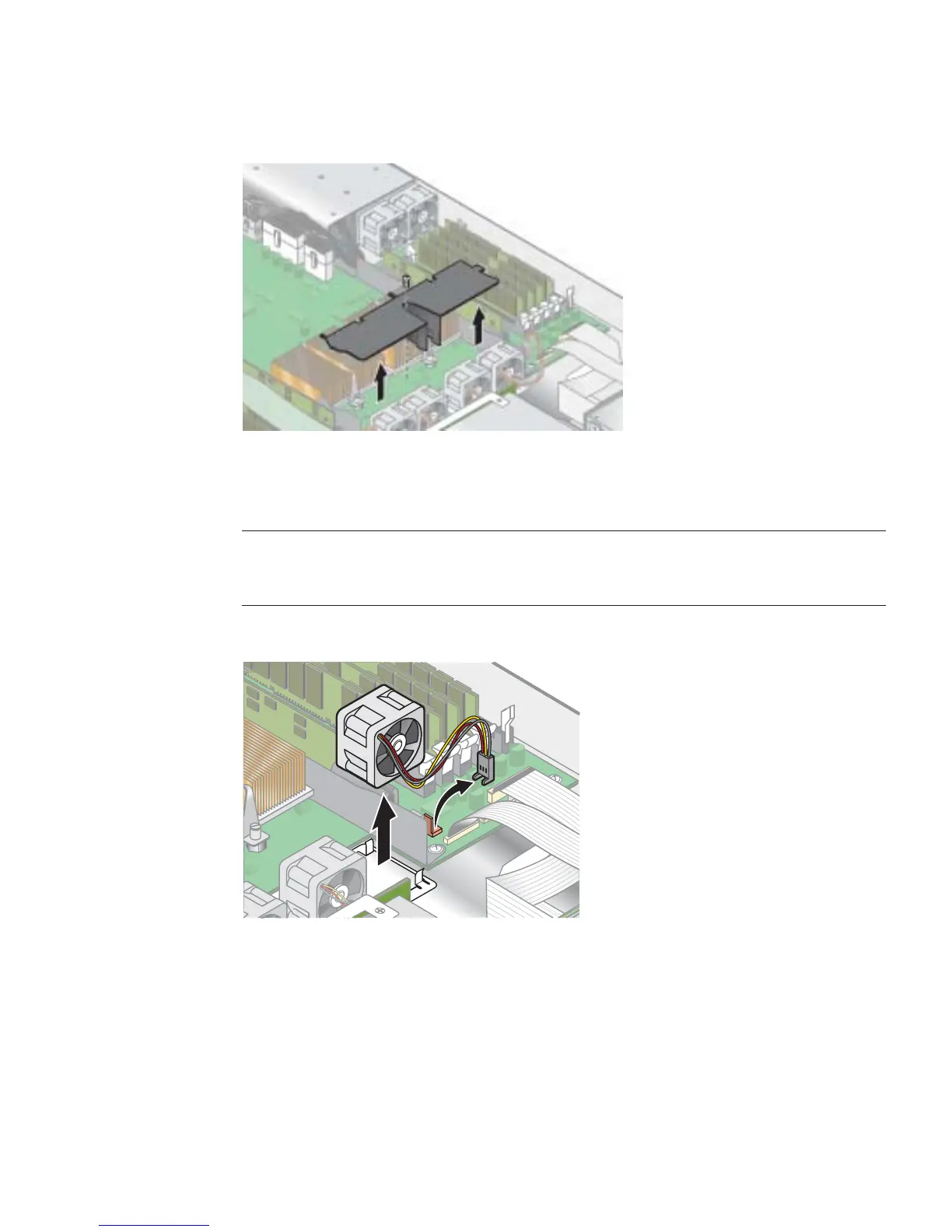

FIGURE 3-22 Removing the Center Air Baffle
4. Unplug the fan’s power connector from the motherboard (see FIGURE 3-23).
Note – Note exactly which motherboard connector to which the fan was connected.
If you plug a fan back into an incorrect connector, the SP cannot correctly identify a
fan failure.
FIGURE 3-23 Removing the Cooling Fans (Processor Fan Shown
5. Pull the fan straight up to remove it from the fan tray.
Installation is the reverse of this procedure.
