User Manual 3 Unpacking and Storage
13
3.3 Scope of Delivery
Inverter (x1)
Mounting-bracket (x1)
a
AC junction box
DC connector sets
b
Two-hole sealing block for
communication terminal (x2)
M10 fastening screw sets (x4)
Screws
c
Documents
d

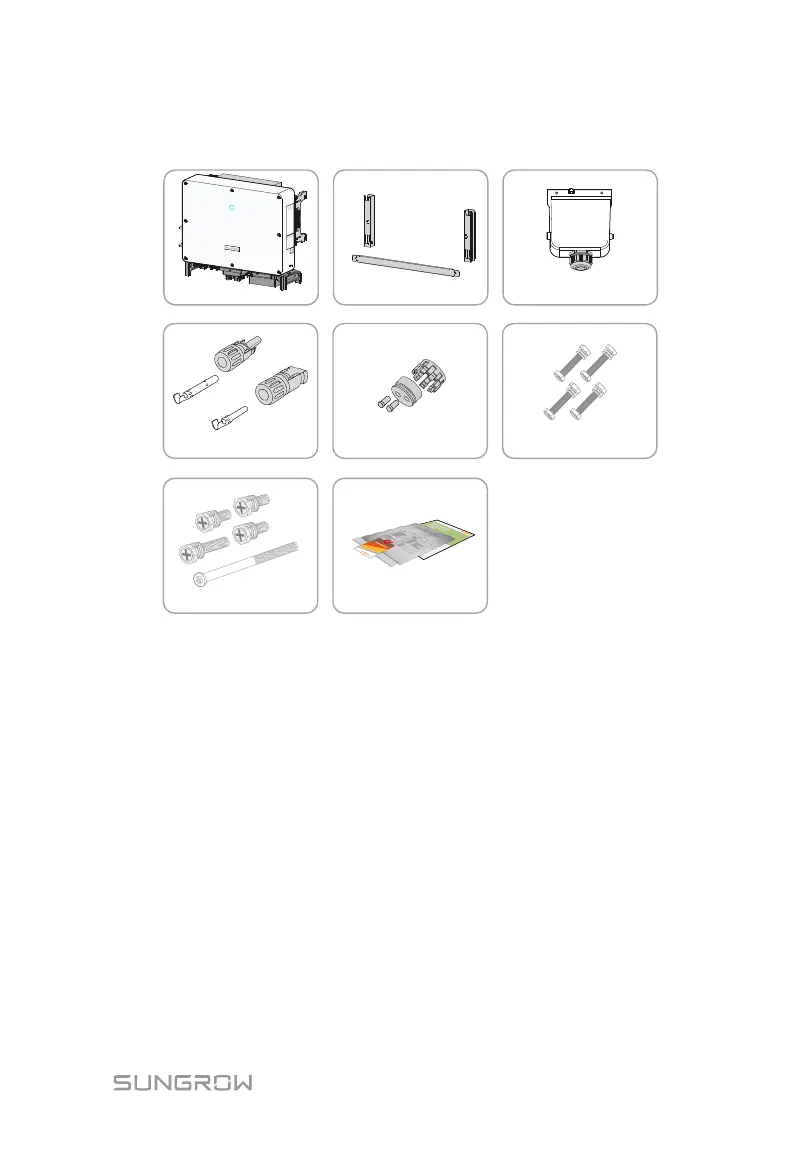

Fig. 3-2 Scope of Delivery
a: The mounting-bracket includes 2 mounting-bracket components and 1
connecting bar.
b: The SG33CX, SG40CX, and SG50CX are respectively provided with 6, 8,
and 10 pairs of DC connectors and cord end terminals.
c: The screws include 1 M4×25 screw, 3 M4×10 screws, and 2 M6×65 screws.
d: The documents include the quick installation guide, packing list, warranty
card, etc.
3.4 Inverter Storage
Store the inverter properly when the inverter is not to be installed immediately.
Store the inverter in the original packing case with the desiccant inside.
