Sungrow SG33CX User Manual

5 Electrical Connection User Manual
46
the shielding layer of the communication cable should be single-point
grounded.

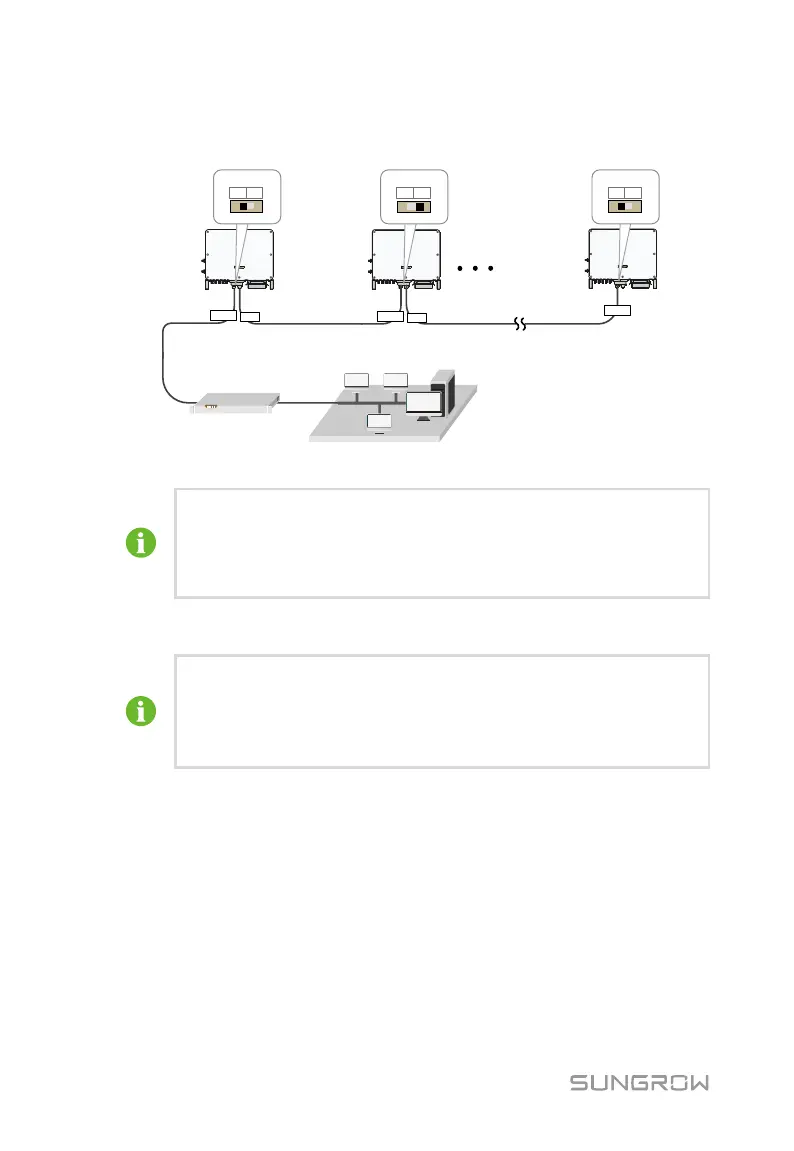

Inverter Inverter 2~(N-1) Inverter N
Monitoring station
Logger
OUT
IN
OUT
IN
OUT
ON
OFF
120ohm
SW1
ON
OFF
120ohm
SW1
ON
OFF
120ohm
SW1
Fig. 5-4 Terminal resistor state（N≥15）
 The length of the RS485 cable should be no longer than 1,200m.
 If multiple inverters are connected to the data collector Logger3000,
the number of permissible daisy chains and the number of devices
allowed to be connected should meet the requirements (refer to the
user manual for the Logger3000).
5.9.3 Connection Procedure
 RS485 communication cables should be shielded twisted pair
cables or shielded twisted pair Ethernet cables.
 There are three communication terminals, and the silkscreen
marks are COM1/COM3/COM4. Please choose according to the
actual situation.
Terminal Block
Step 1 Remove the communication junction box, see 5.7.1 Remove the
Junction Box.
Step 2 Loosen the swivel nut of the junction box and select an appropriate seal
according to cable outer diameter. Lead the cable through the swivel nut,
seal, and junction box successively.

Sungrow SG33CX Specifications

General

Model	SG33CX
Manufacturer	Sungrow
Rated Power	33 kW
Max DC Voltage	1100 V
Max Efficiency	98.7%
Start Voltage	200 V
Total Harmonic Distortion	< 3%
Power Factor at Rated Power	1
DC Connection Type	MC4
Allowable Relative Humidity Range	0 - 100%
Operating Altitude	4000 m
MPPT Voltage Range	200 V - 1000 V
AC Voltage Range	310 V - 480 V
Rated Grid Frequency	50 Hz / 60 Hz
Adjustable Power Factor Range	0.8 leading to 0.8 lagging
Operating Ambient Temperature Range	-25 °C ... +60 °C
Communication	RS485
