Sungrow SG33CX User Manual

7 iSolarCloud APP User Manual
64


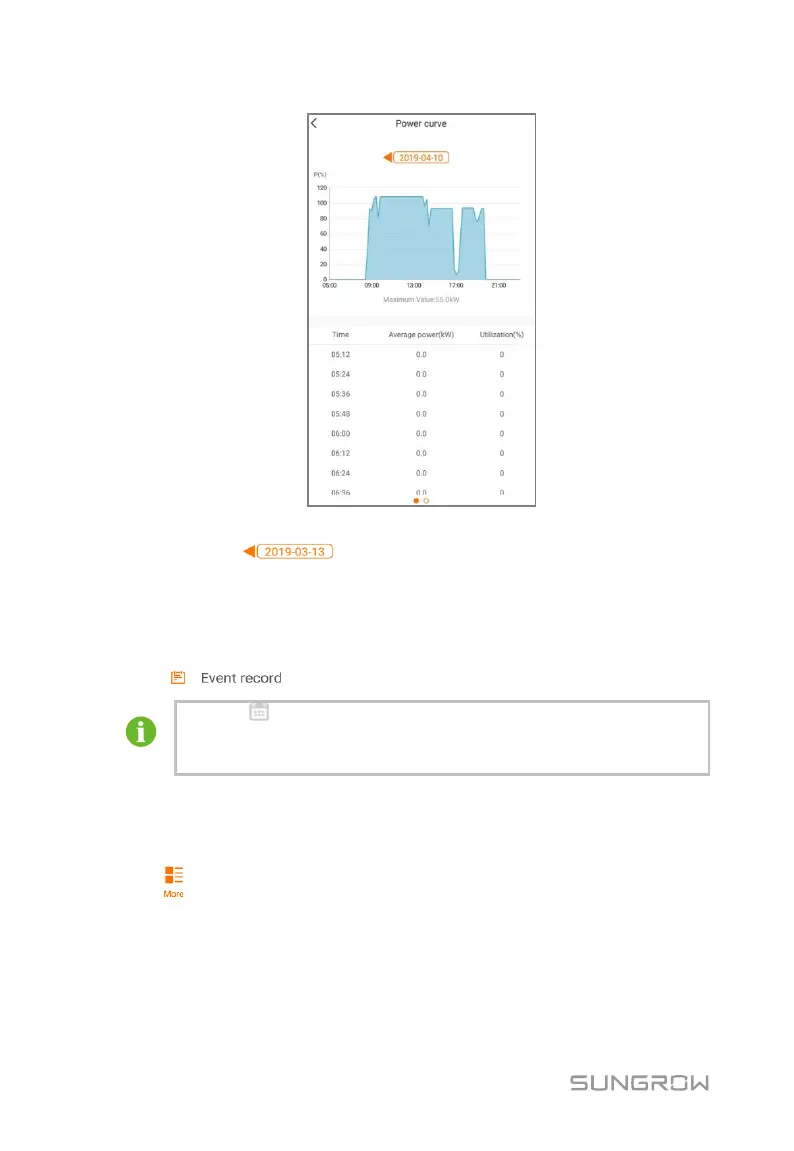

Fig. 7-10 Power curve
Tap the time bar on the top of the screen to select a time segment
and view the corresponding power curve.
Step 2 Swipe left to check the power yields histogram
7.7.3 Event Records
Click " " to view event record list.
 Click " " to select a time segment and view corresponding event
records.
 The inverter can at most record the latest 400 events
7.8 More
Tap " " on the navigation bar to enter the "More" screen, as shown in the
following figure.

Sungrow SG33CX Specifications

General

Model	SG33CX
Manufacturer	Sungrow
Rated Power	33 kW
Max DC Voltage	1100 V
Max Efficiency	98.7%
Start Voltage	200 V
Total Harmonic Distortion	< 3%
Power Factor at Rated Power	1
DC Connection Type	MC4
Allowable Relative Humidity Range	0 - 100%
Operating Altitude	4000 m
MPPT Voltage Range	200 V - 1000 V
AC Voltage Range	310 V - 480 V
Rated Grid Frequency	50 Hz / 60 Hz
Adjustable Power Factor Range	0.8 leading to 0.8 lagging
Operating Ambient Temperature Range	-25 °C ... +60 °C
Communication	RS485
