User Manual 5 Electrical Connection
53
Ensure that the impedance at the input node is less than 380Ω.
5.10.2 Wiring Procedure
Refer to the wiring of terminal block described in chapter 5.9.3 Connection
Procedure
5.11 Communication Module Connection (optional)

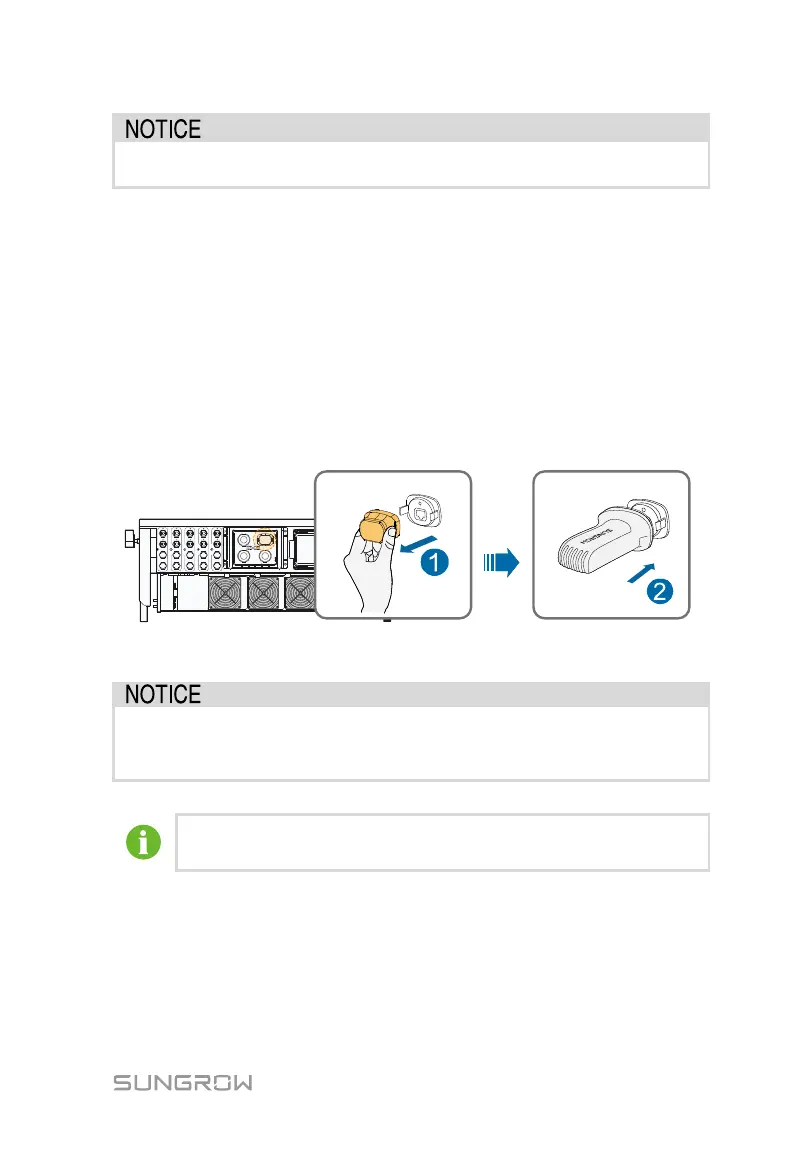

Connect the communication module produced by SUNGROW, such as Eye,
WiFi, or E-Net to the communication accessory port. After successful
connection, information such as power generation and running state of the
inverter can be viewed via the APP on the phone.
*The image shown here is for reference only. The actual product you receive
may differ.
The communication module and the RS485 communication are not
available at the same time. Otherwise, communication failure or other
problems can be caused.
For details on module installation and configuration, refer to the manual
delivered together with the module.
