5 Electrical Connection User Manual
36
Outer
Diameter: D
252mm
200mm
b
c
d
a
Outer diameter
D(mm)
Seals
20~25
a+b+c+d
25~30
a+b+c
30~40
a+b
40~50
a

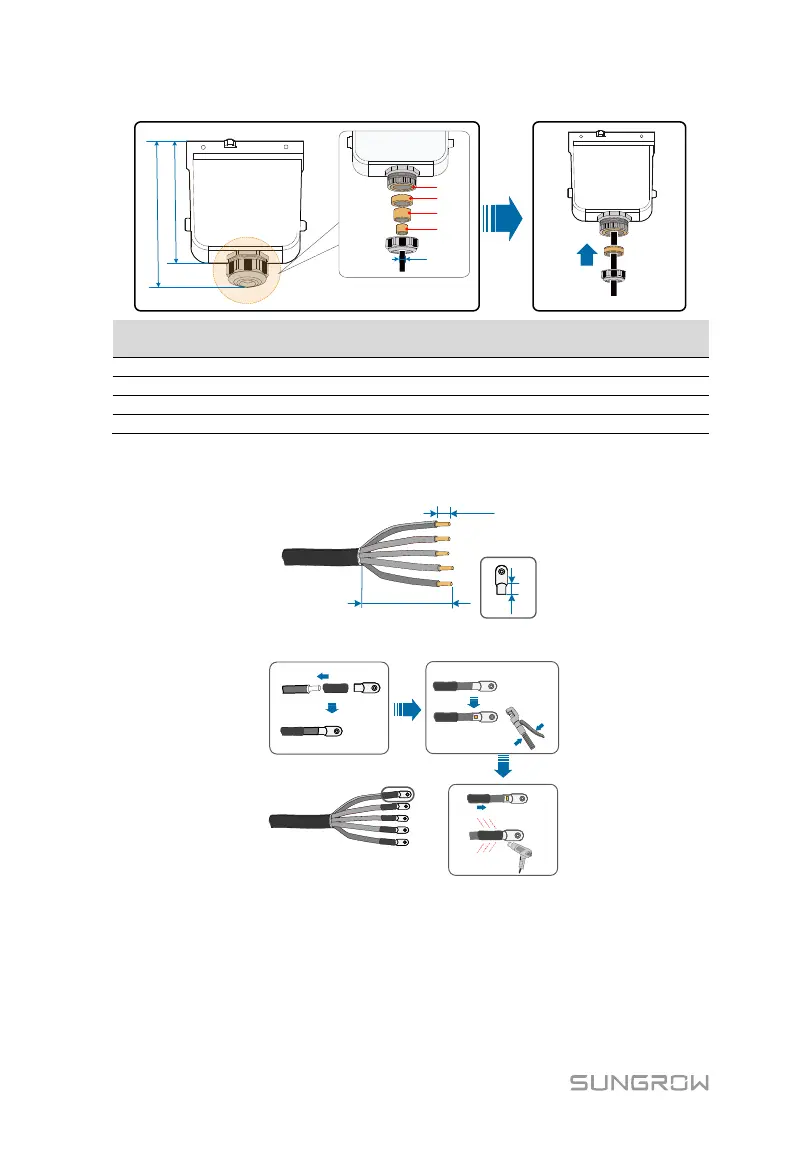

Step 3 Strip the protection layer and insulation layer by specific length, as
described in the figure below.
L = E + (2~3)mm
E
≤135mm
Step 4 Make the cable and crimp OT terminal.
L1
L2
L3
PE
N
Step 5 Unfasten the buckle and remove the protective cap.
