Sungrow SG33CX User Manual

User Manual 5 Electrical Connection
39
MPP tracker.
Each PV input operates independently and has its own MPPT. In this way, string
structures of each PV input may differ from each other, including PV module
type, number of PV modules in each string, angle of tilt, and installation
orientation.
Each PV input area includes two DC inputs DC1 and DC2. To make the best
use of PV module input power, string structures of DC1 and DC2 should be the
same, including PV module type, number of PV modules, angle of tilt, and
installation orientation.

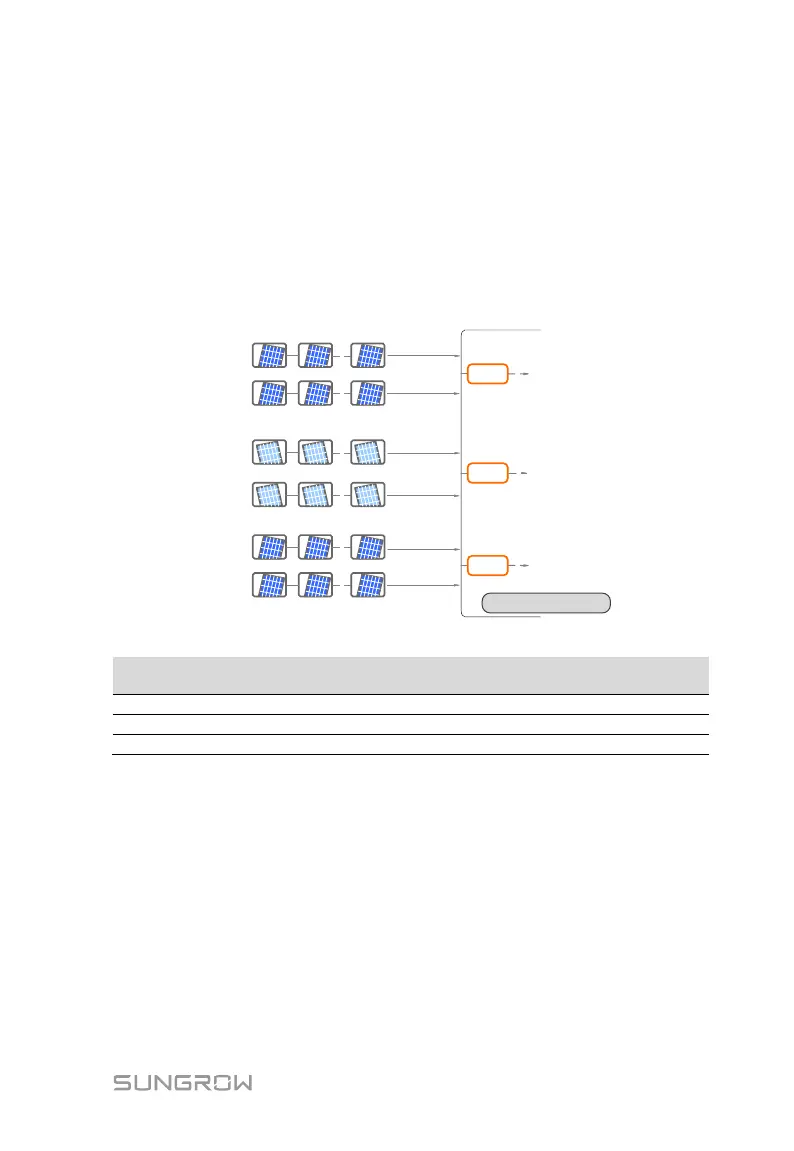

MPPT2
MPPT1
Inverter
PV 1
PV 2
MPPT3
PV n
DC 1
DC 2
DC 1
DC 2
DC 1
DC 2
*SG33/40/50CX: n= 3/4/5
Type
Open circuit voltage
limit
Max. current for input connector
SG33CX
1,100V
30A
SG40CX
1,100V
30A
SG50CX
1,100V
30A
DC cable on the PV string side should be connected via the PV connector
which is included in the scope of delivery.

Sungrow SG33CX Specifications

General

Model	SG33CX
Manufacturer	Sungrow
Rated Power	33 kW
Max DC Voltage	1100 V
Max Efficiency	98.7%
Start Voltage	200 V
Total Harmonic Distortion	< 3%
Power Factor at Rated Power	1
DC Connection Type	MC4
Allowable Relative Humidity Range	0 - 100%
Operating Altitude	4000 m
MPPT Voltage Range	200 V - 1000 V
AC Voltage Range	310 V - 480 V
Rated Grid Frequency	50 Hz / 60 Hz
Adjustable Power Factor Range	0.8 leading to 0.8 lagging
Operating Ambient Temperature Range	-25 °C ... +60 °C
Communication	RS485
